High Quality Backhoe Loader with Cummins Engine

Name: High Quality Backhoe Loader with Cummins Engine
Brand: china-manufacturer-directory.com
SKU: 768569185
Availability: InStock
Rating: 4.7 (122 reviews)

Supplier:	Xiamen Topway Machinery Co., Ltd.
Price:	US $ 38500/Piece
Min Order:	1UNIT
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	WZ30-25
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Backhoe Loader Engine:	Cummins
Backhoe Loader Operating Weight:	7600kgs
Backhoe Loader Bucket Capacity:	1.0cbm
Walking Mode:	Wheeled
Load And Unload Method:	Front Discharge
Certification:	ISO9001: 2000
Condition:	New
Type:	Backhoe Loader

Product Description

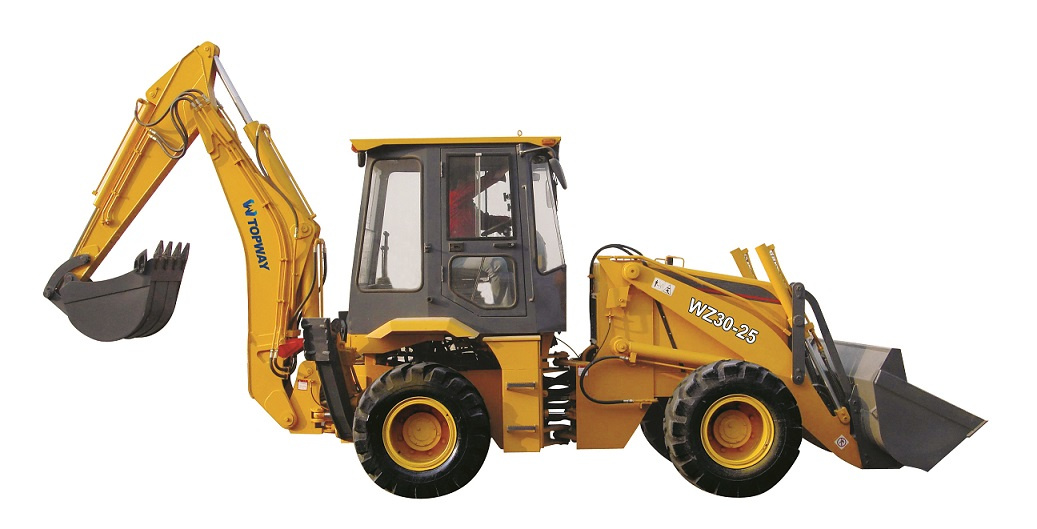

WZ30-25 Backhoe Loader Main Features:

Adopt Cummins 4 cylinder engine with 74KW output power, turbo-charger, low emission and noise.
Full hydraulic steering system, with strong breakout force by 45KN, high work efficiency.
Four-wheel driving axle keeps power traction force. Four-wheel caliper disc brake and emergency braking protective ensure operation safe and reliable.
Widely used in construction, road and bridge building and maintenance, construction of farmland irrigation and water conservancy, pipeline placing and maintenance, gardening and forestry, road surface digging and breaking etc.

Optional equipments (Additional price needed)
Joy Stick / Air Conditioning
4 in 1 bucket
Quick Hitch
Grass-grasping
Log fork
Fork
Hydraulic Hammer
Snow blade
Hoe digging machine

Specification:

Item		WZ 30-25
Rating lifting capacity		25KN
Bucket capacity		1.0m³
Hoe bucket capacity		0.3 m³
Excavating radius		5645mm
Arm lifting time		6s
The sum of three items		≤11.5s
Max. speed		20km/h
Min. turning radius		5210mm
Max. Excavating depth		4500mm
Max. Breakout force		45KN
Max. Turing angle		35°
Wheelbase		2350mm
Tread		1590mm
Tyre	Specification	16/17-20
Tyre	Air pressure	Front 0.32Mpa Rear 0.28Mpa
Operation weight		7.6t
Figure dimension	Length * width * height	7002 * 2200 * 3786mm
Brake system	Air pressure of brake system	0.6 - 0.8 Mpa
Brake system	Service brake	Air-hydraulic combination
	Type of torque converter	YJ280
Transmission system	Stall torque ratio	3.1
	Oil pressure of torque converter inlet	0.25 - 0.3 Mpa
	Type of gearbox	Planetary gear, power shift
Diesel engine	Model	Cummins 4BT3.9-C100
	Rating power	74kw
	Rating revolution	2400r/min
	Type of main transmission	Spiral bevel gear
Axles	Transmission ratio	26
	Type of final drive	Single-spur planetary gear
Oil capacity	Fuel tank	90L
	Hydraulic system	130L
	Engine oil	11.5L
	Gearbox	20L
	Axles and final drive	30L
	Brake system	1.5L

Product Photos:
