Provence Technology (Shenzhen) Co., Ltd. >> 46" 47" CCTV System LCD Monitor

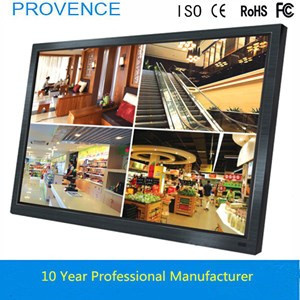

46" 47" CCTV System LCD Monitor

Supplier:	Provence Technology (Shenzhen) Co., Ltd.
Price:	US $ 557.5-672/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	PM460NX
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Monitoring System
Application:	Sound Monitoring
Feature:	High Definition
Kind:	CCTV Monitor
Technology:	CCTV System
Horizontal Resolution:	1920X1080

Product Description

1920X1080 Full HD TFT LCD monitor for CCTV Security system

Features and Benefits
1. Full HD LCD panel with viewing angle: 178o (H/V), high contrast ratio and colour saturation
2. Designed and engineered for 24/7 operation. Long lifetime: >50, 000 hours.
3. Metal case: Anti-static, antimagnetic, anti-interference, damage-proof performance. Compatible with VESA standard.
4. Professional driving IC (adopting 3D comb filter and digital noise reduction technologies), ensuring high quality and stable colour performance.
5. Built-in temperature sensor results in smart fan&work temperature control.
6. Energy saving, very eco-friendly low power.
7. HDMI, VGA multiple I/O ports allow for greater compatibility and flexibility.
8. Various installation methods: Wall mount, floor stand, cabinet-mount etc.
9. Operation modes: RS232, IR remote control, Key control
10. Ideal LCD monitor for CCTV, SCADA etc. Automation system

We are also Turnkey Solution provider.

Product Description
Panel (TFT LCD panel)
Diagonal Size	46"
Aspect Ratio	16: 9
Pixel Pitch	0.53(H) x 0.53(W)
Response Time	8ms
Resolution	1920X1080
Contrast Ratio	3000: 1
Brightness (cd/m2)	450d/m2
Active display area	1018(H)X573(V)
Display Color (Max)	16.7M
Viewing Angle(U/D, L/R)	H: 178o V: 178o
Lifetime	More than 50, 000 hours
Inputs
VGA	X1
DVI	X1
HDMI	X1
YPbPr (BNC)	X1
CVBS (BNC)	X5
Audio in (VGA & DVI)	X1
Audio in (AV & YPbPr)	X1
RJ45(for RS232 in)	X1
Outputs
RJ45(for RS232 out)	X1
CVBS (BNC)	X2
Product functions
Anti-static, antimagnetic anti-interference	√
Built-in temperature sensor, smart fan	√
Eco-friendly low power	√
PIP/POP	√
Pixel shifting	√
Auto image adjust (position/color etc. )	√
Manual image adjust (position/color etc. )	√
White balance adjustment	√
ADC Signal Conditioning	√
3D decoding	√
3D comb filter and digital noise reduction	√
Double 3D De-interlacing	√
3D Y/C separation	√
3D Color Management	√
3D Marginal sawtooth finish	√
3D image static/dynamic compensation	√
Picture Freezing	√
Technical Specification
OSD language	Simplify Chinese, English
Video Format	PAL, NTSC
Case Material	Metal (black)
Horizontal Frequency	20 ~ 82KHz(analog and digital)
Vertical Frequency	55~75Hz
Optimum Resolution	1920x1080 at 60HZ
Native Resolution	1920x1080 at 60HZ
Supported Resolutions	Up to 1920x1080
Video Modes(no tuner)	Up to 1080p at 50& 60HZ
Control modes	RS232, IR remote control, Key control
POWER
Power supply	AC Input 100~240V(+/-10%)/50-60Hz
Power consumpiton	≤ 250W
Stand-by	≤ 2W
Operation/Sotrage
Operating Temperature	0 0 C~50 0 C
Operating Humidity	10%~90%
Storage Temperature	-20 0 C~60 0 C
Storage Humidity	0%~90%
Accessories
Manual1, Warranty Card1, Remote control, Power Cord*1

PROVENCE (Shenzhen) Technology. Co., Ltd was established in Shenzhen China in Juanary 2011 mainly engaged in intelligent LCD/LED display products. Factory covered over 3000 square meter and there are about 100 employees. Products anging from CCTV monitor, Video wall, Touch all in one, Digital signage to related controller and accessaries etc...

Combined with R&D, marketing, manufacturing & construction as a whole, PROVENCE is not only a terminal display products producer but also a Turkey-solution provider. We have obtained approval of CE, FCC, RoHS ISO9001 Certificates for all products which are exported to America, Canada, Europe, Asian, Middle East and sell well in markets all over the world. Professional OEM/ODM service is also provided.

PROVENCE have been done over 1000 video wall projects for the past few years and had gained reputation for its reliable products and after-sale services. Based on the science and technology, We are aimed to be the No. 1 in intelligent LCD/LED display industry with the principle of "Integrity, Professional & Inovation".
