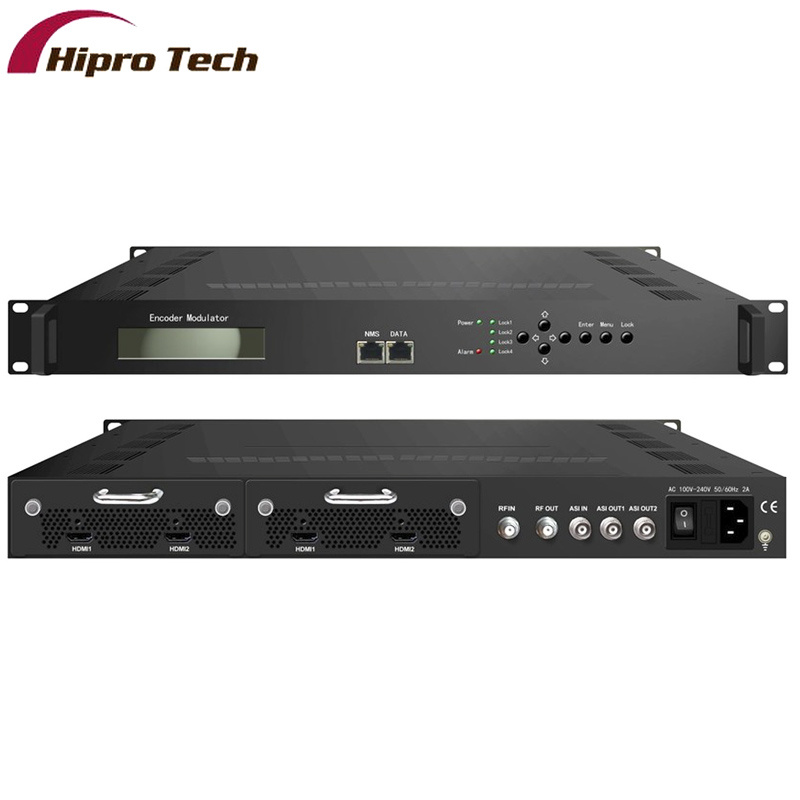

4in1 HDMI DVB-C Encoder Modulator
Product Overview
HPS852 series products are HIPROTECH's new breakthrough all-in-one devices which integrate encoding (MPEG-2 HD/SD, MPEG-4/AVC H. 264 HD/SD) and modulating to convert V/A signals into DVB-C RF output. It has equipped with 4 HDMI (4 SDI optional) channels input and 1 ASI input and output with 2 ASI ports and 1 UDP IP (4*SPTS) port.
Delay problem has been greatly reduced to achieve an extremely low value from the encoding progress to the decoding terminals.
It adopts inner drawer-type structural design which greatly facilitates the change of encoding modules (HDMI/SDI /) as needed.
The signals source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, and antenna etc. Its output signals are to be received by DVB-C TVs or STBs and etc.
Key Features
* MPEG2 & MPEG4 AVC/H. 264 HD/SD encoding
*Up to 1920*1080@50P/60P supported (MPEG4 AVC/H. 264)
*Up to 1920*1080@50I/60I supported (MPEG2 HD)
* 4* HDMI/SDI input
*1*ASI input for re-mux; 1*RF input for mix
*Simultaneously encoding each channel more than 10Mbps
*4* DVB-C RF out (4 carriers combined output)
*Support 4 * SPTS output
*Extremely low delay
* LCN support (Logical Channel Number)
* Excellent modulation quality MER≥ 42dB
* RF Frequency range 30Mhz~960Mhz
* LCD display, Remote control and firmware
* Web NMS management; Updates via web
