Product Specifications
| Prod Model: |
G1GD05C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sensor Type: |
Progressive Scan CMOS |
| Sensor Size: |
1/2.5" |
| Sensor Model: |
Mt9p001 |
| Resolution: |
2592 X 1944 |
| Max. Frame Rate: |
113fps@720X480 |
| ADC: |
12 Bit |
| Dynamic Range: |
41dB |
| Exposure Time: |
0.5ms~40min |
| Read-out Noise: |
8e- |
| IR Cut Filter: |
Integrated in C-Mount 18mm X 18mm |
| Image Sensor: |
CCD |
| Megapixel: |
<5.0MP |
| Screen Size: |
2-3" |
| Optical Zoom: |
Fixed Focus |
| Type: |
SLR |
| Memory Card Type: |
PC Memory |
| Lens: |
C/CS Mount |
Product Description

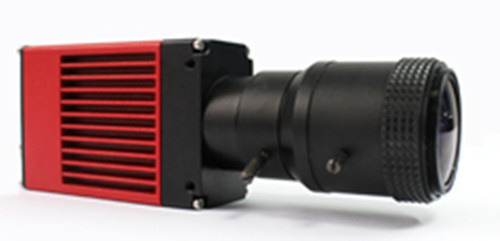

G1GD05C
5.00MP color cmos Microscope GigE camera
JPLY GigE CMOS cameras G1GD series is a newly developed product, with Gigabit Ethernet interface (high resolution, high speed, long distance transmission). Compared with G1UD series, G1GD series offers higher speed of the preview (up to 130fps@640x480). It is ideal for various applications in industry, especially in complex electromagnetic environment. The G1GD series support multi-camera synchronization, as well as online work without PC connection. It can be used in image processing and analysis by collaborating with the PLC (Programmable Logic Controller). SDK and source code of the Demo are available for secondary development
Specifications of product:
Model G1UG05M
Digital interface Gigabit Ethernet
Sensor Type Progressive scan CMOS
Resolution 2592 x 1944
Sensor model MT9P001
Sensor size 1/2.5"
Pixel size 2.2μm x 2.2μm
Max. Frame rate 113fps@720x480
ADC 12 bit
Dynamic range 41 dB
Exposure time 0.5ms~40min
Read-out noise 8e-
ROI 4 regions/frame
DSP frequency 400MHz
On board memory 256MB
I/O trigger programmable, 6 channels
Lens Mount C/CS mount
Color/Mono Color
IR cut filter integrated in C-mount 18mm x 18mm
Voltage supply USB 2.0 powered
Power consumption 2.8W, 1.3W standby
Ambient condition -30° C~70° C
Storage condition -30° C~70° C
Software SpectrumSee
SDK available
Operation System Windows 2000/XP/Vista/7 (32&64 bit)
Weight Approx. 265g (customizable housing case)
Feartures of product:
ROI: 4 regions per frame
400MHz DSP frequency
Output without interpolation
256MB on-board memory
High-definition, high-quality color reproduction
6 channels I/O, programmable trigger
SDK available, support Windows 7, 32/64bit OS
Customizable
Application:
Machine vision and inspection
Industrial Inspection and measurment
Sample is available if customer pay sample cost and freight, will pay back one-way shipping fee if customer agrees to buy.
As a global camera provider, JPLY is dedicated to balanced sustainability and responsible business. With quality and integrity at our core, we deliver best-in-class camera and related product. JPLY designs and manufactures high performance and user-friendly CCD, CMOS cameras for a vast variety of life science and industrial research applications.
The company consistently delivers ODM/OEM products that are innovative, easy to integrate, cost-effective and on time. Being a leader of camera designer in China, JPLY is developing to a world class brand. We ensure that customers stay with us over multiple product generations by consistently meeting their demands for cutting-edge technology, technical consulting services, integration assistance and the highest manufacturing standards.
