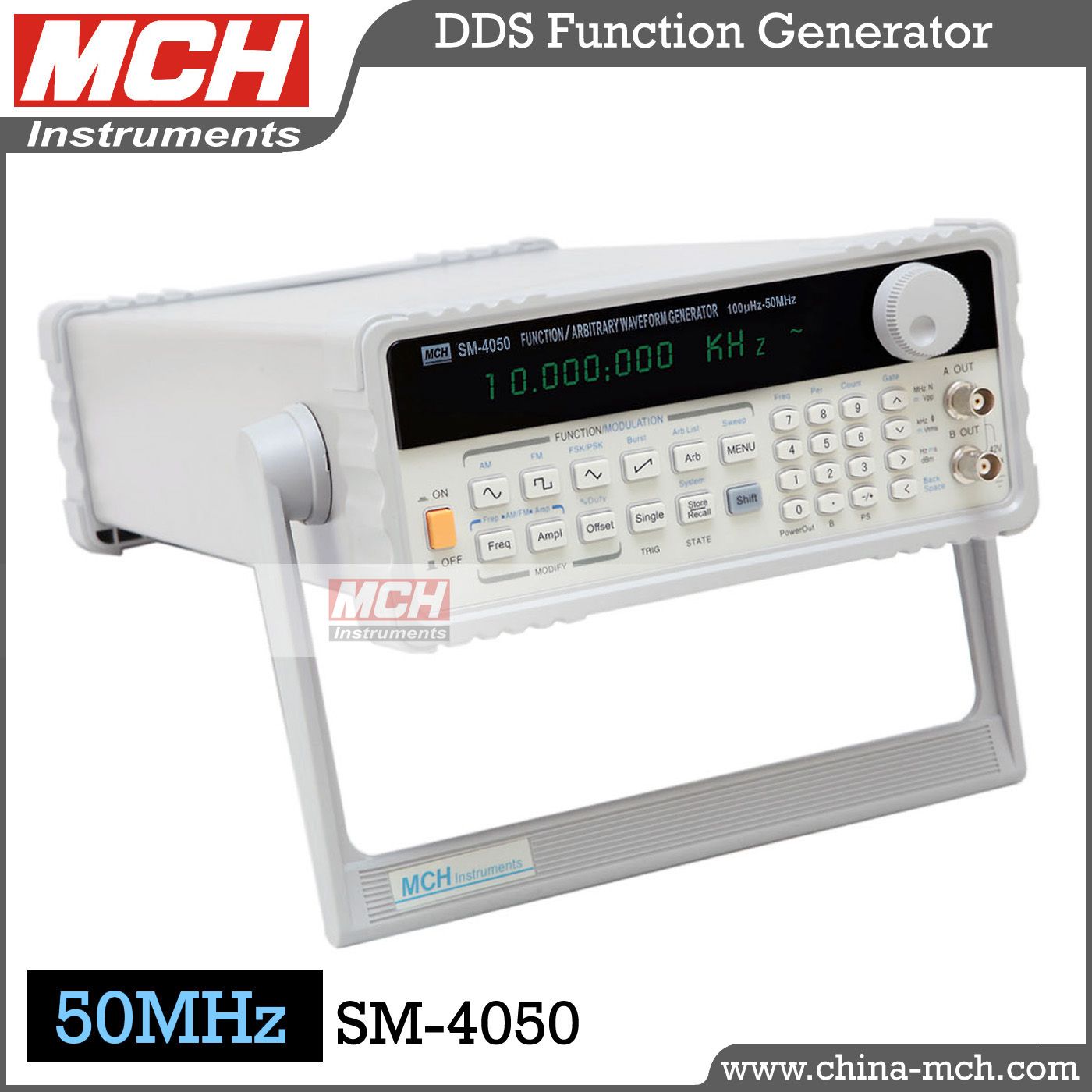

50MHz Am/FM Arbitrary Waveform Function Generator Dds Function Generator (SM-4050)

Name: 50MHz Am/FM Arbitrary Waveform Function Generator Dds Function Generator (SM-4050)
Brand: China-Manufacturer-Directory.com
SKU: 733309155
Availability: InStock
Rating: 4.7 (148 reviews)

Supplier:	MCH Instruments Co., Ltd.
Price:	US $ 350-472/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW,CIF

Product Specifications

Prod Model:	SM-4050
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Function generator

Place of Origin: Guangdong, China (Mainland)
Brand Name: MEILI
Model Number: SM-4050
Packaging & Delivery
Packaging Details: Standard export cartons; 1.3units/carton 2. Box dimension: 46*23*18cm 3. Gross weight: 5kg/PC 4. Carton dimensin: 47*25*56cm
Delivery Detail: 20days with above 150unit, supply from stock with little quantity

Specifications
SM-4050 dds Function Generator:
1.50MHz Freq. &wide sweep Freq.
2. Multi-waves test, base on DDS technology
3. W/AM FM function

Features:
1. High resolution, high accuracy, high stability, superb price/performance
2. Highly visible VFD display, easy-to-use knob and keys
3. Multi-wave forms are suitable for various application areas
4. Wide sweep frequency range, start and stop frequency can be set independently in sweep function. It can be used as digital sweep analyzer with an oscilloscope.
5. SMT craft. New-style metal case
6. MTBF: >10000h
7. GP-IB (IEEE-488) interface and RS-232 interface are optional
8. Size: 255mm X 370mm X100mm (WxHxD)
9. Weight: 2.5kg

Waveforms
Main Waveforms	sine, square(only sine is available above 40MHz)
Waveform length	8~16000point
Amplitude resolution	12bit
sampling rate	200MSa/S(≤80MHz) 300MSa/S(120MHz)
Built-in Arbitary	Triangle,±Ramp, ±pulse,rise/fall exponential,rise/fall logarithm,gause noise,cardiac,SIN(X)/X,DC
Waveform length	8~160000point
Amplitude resolution	10bit
sampling rate	10MSa/S(≤80MHz) 20MSa/S(120MHz)
Arbitary Waveform
Waveform length	8~16000point
Amplitude resolution	10bit
sampling rate	10MSa/S(≤80MHz) 20MSa/S(120MHz)
Memory	6*4K
Waveform characteristics
sine harmonic distortion	-35dBc
sine distortion	≤0.1%(20Hz-100KHz)
square rise/fall time	≤10na
frequency characteristics
frequency range	1.Main waveform:100uHz-10/20/40/80/120MHz
	2.Built-in arbitary:10mHz-100KHz
	3.Arbitary waveform:10mHz-100KHz
Resolution	1.μHz
freq. accuracy	≤±5PPm
temperature coefficient	≤2PPm/°C
output characteristics
amplitude	Sine: (F≤40MHz) 1mVpp-10Vpp(50Ω);2Mvpp-20Vpp(open)
	(F>40MHz) 1Mvpp-6Vpp(50Ω)
	Square: (F≤20MHz) 1mVpp-10Vpp(50Ω);2Mvpp-20Vpp(open)
	(F>20MHz) 1Mvpp-6Vpp(50Ω); 2Mvpp-2Vpp(open)
Accuracy	±1%+0.2mv(sine 1KHz)
flatness	Amplitude≤1Vpp(50Ω load):≤±0.5dB
flatness	Amplitude>1Vpp(50Ω load):≤±0.5dB(20MHz);≤±1dB(40MHz or above)
Resolution	4digit display:0.1mV(output and offset)
DC offset	(F≤40MHz) ιVpp/2+DCι≤5(50Ω); ιVpp/2+DCι≤10(open)
DC offset	Accuracy:±10%+2mV (note: No offset at freq. over 40MHz)
Unit	Vpp, mVpp, dBm, Vrms, mVrms
pulse duty rate	0.1% -99.9%(F≤10KHz);1%-99%(10KHz
modulation
amplitude modulation
carrier waveform	sine, square
Carrier Freq. Range	100μHz-10/20/40/80/120MHz
Modulation Waveform	sine, square, triangle,±Ramp, ±Pulse,Rise/fall exponential,Rise/fall logarithm,Gause noise, Cardiac, SIN(X)X,DC.
Modulation Freq. Range	100μHz-20KHz
Modulation Depth	1%-120%
Modulation Distortion	≤2%
Source	INT/EXT(Ext. AM:±5V=100%)
Frequency Modulation
Carrier Waveform	Sine, Square
Carrier Freq. Range	100μHz-20/40/80/120MHz
Modulation Waveform	Sine, square, triangle, ±Ramp, ±Pulse, Rise/fall exponential,Rise/fall logarithm,Gause noise,Cardiac,SIN(X)X,DC
Modulation Freq. Range	100μHz-10kHz
Max. Deviation	50% of carrier freq.
Frequency-shift keying
waveform	sine, square
frequency range	100μHz-10/20/40/80/120MHz
Alternate time	0.1ms-100S ±1% (10mHz-10kHz)
Control mode	INT/EXT (External TTL level,F1:low-level,F2:high-level)
Phase-shift keying
Waveform	sine, square
Frequency range	100μHz-20/40/80/120MHz
Phase range(P1,P2)	0~360 0 , Resolution:0.1 o
Alternate Time	0.1ms-100s ±1%
Control mode	INT/EXT(External TTL level,P1:low-level,P2:high-level)
Burst
Waveform	sine,square,triangle,±Ramp,±Pulse,Rise/fall exponentional,Rise/fall logarithm,Cardiac,SIN(X)X.
Frequency Range	10mHz~100KHz
Counting	1-10000circles
Start Phase	0-360 o ,Resolution: 0.1 o
Alternate Rate	0.1ms-100S ±1%
Trigger Source	INT, EXT, Single
Sweep
Waveform	Sine,Square
Frequency Range	100μHz-20/40/80/120MHz
Amplitude range	(F≤40MHz) 1mVpp-10Vpp(50Ω);2mVpp-20Vpp(open) (F>40MHz) 1mVpp-1Vpp(50Ω); 2mVpp-2Vpp(open)
Sweep Mode	Linear, Logarithmic, Rise, Fall, Signal
Sweep Time	0.1ms-100s ±1%
Trigger source	INT, Signal
Storage Characteristic
Parameters	Freq., Amplitude, Waveform, DC Offset and Function Status
Capacity	8 grounp of set-ups
Recall Mode	Entire group of parameters is recalled with repective number
Storage time	Over 10years
