Price: | US $ 275-371/Piece |
---|---|
Trade Terms: | FOB,CIF,EXW |
Min Order: | 1/Piece |
Pay Type: | L/C,T/T,Paypal,Western Union |
Model Specifications |

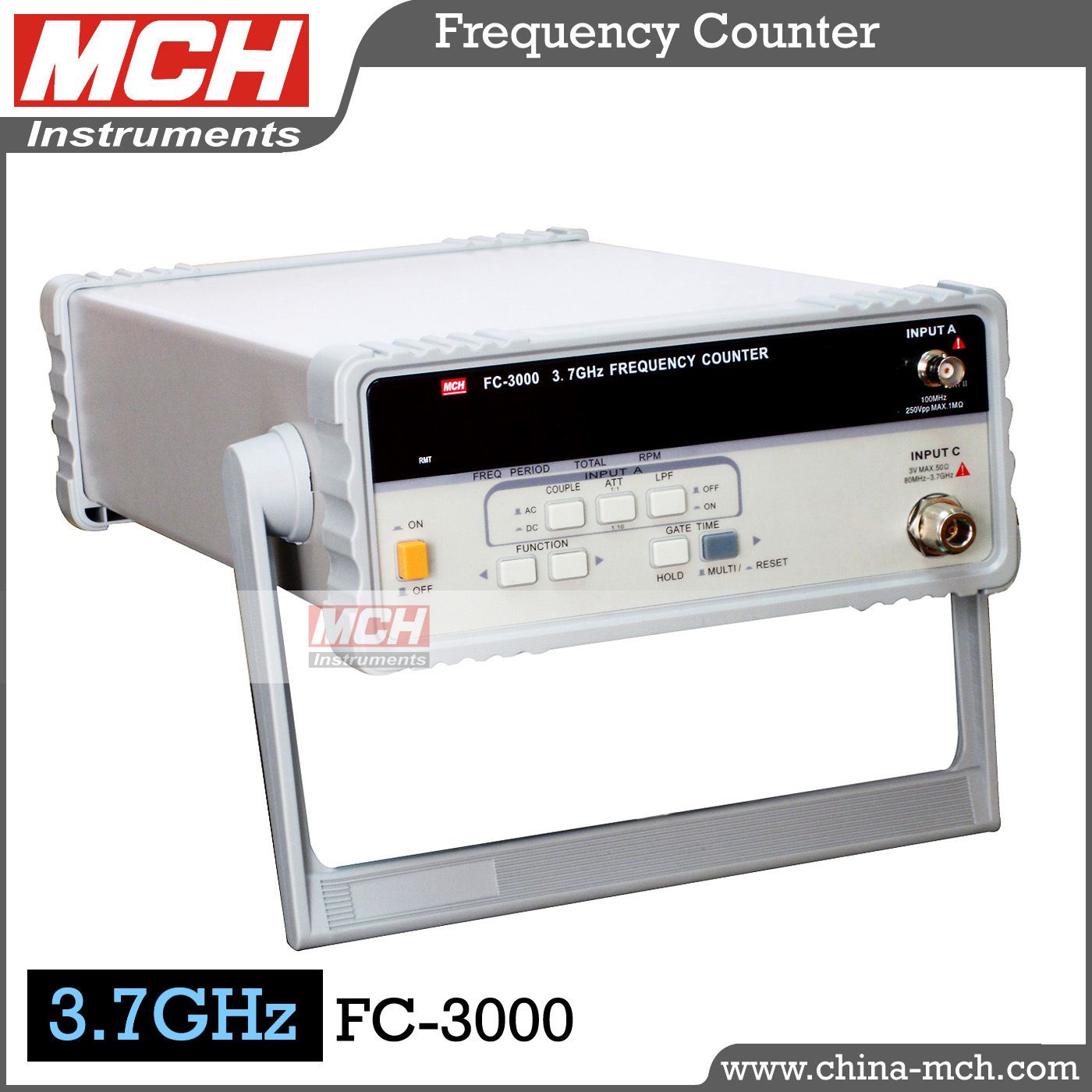

FC-3000 |
Display | 9digit large LED display, overflow, gate time, mHz, Hz, kHz, MHz, nS, uS, mS,S, HOLD |
Frequency measurement | |
Range | 0.1Hz to 100MHz (A input), 80MHz to 3.7GHz (C input ) |
Gate time | 0.01Sec, 0.1Sec, 1Sec, 10Sec |
Resolution | 1nHz to 10Hz |
Accuracy | ±Resolution ±Time base Error ±Count |
Input characteristics | |
Terminal | A,C |
Sensitivity | A input; 20mVrms, C input: 30mVrms |
Impedance | A input: 1Mohm, Less than 40pF, C input : 50ohm |
Max. input voltage ( | A input :250Vrms, C input: 3Vrms |
Attenuator | A input: x1,x10 |
Low pass filter | A input: 100kHz, -3dB |
Multi function for input A | |
Period |
Rang :10mSec to 10 Sec Resolution:1pSec to 1nSec depending on gate time and input signal Accuracy: ±Resolution ±trigger error ±1Count |
Totalize |
Range : 5Hz to 10MHz Count capacity: 1 to 999999999 (Max.) |
RPM | 6 RPM t 900 X10 6 RPM |
Time base characteristics | |
Internal time bases |
Frequency :100MHz TCO(TCXO; option) Aging rate: less than X5 10 -6 /month Temp. stability: less than 5x10 -6 (0°C to +50°C) Line voltage: less than 1x10 -6 for 10% variation |
Frequency standard output ( |
Frequency :10MHz Amplitude :1.5Vp-p Impedance: approx. 600ohm |
External standard output |
Frequency :10MHz Amplitude :1.5Vrms to 5Vrms Impedance: approx. 600ohm |
Others | |
Power requirement | 110/220VAC ±10%, 50/60Hz |
Operating temperature | 0-50°C (accuracy specified at 25±5°C) |
Dimension | 39*26*9cm |
Weight |
Prod Model: | MCH FC-3000 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Display: | Digital |
Frequency Range: | Universal Frequency |
Type: | Digital |
Function: | Period Measurement |
