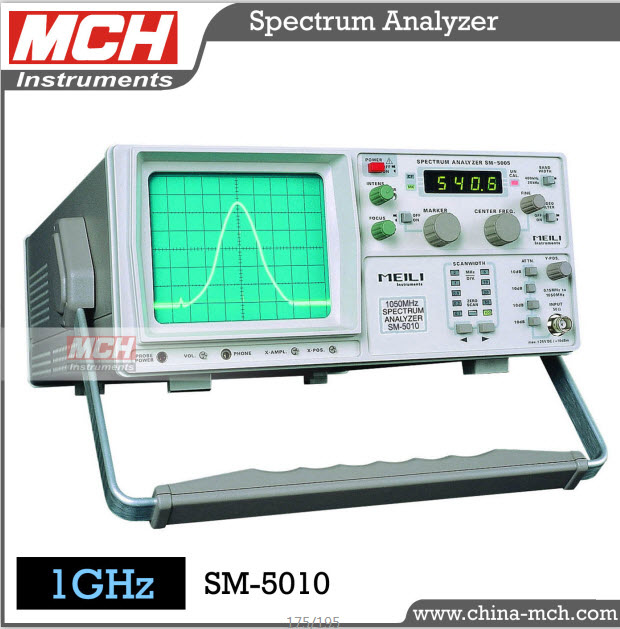

0.15 to 1050MHz 3dB Frequency RF Spectrum Analyzer (SM-5010)
Product Specifications
| Prod Model: |
SM-5010 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Quick details of RF Spectrum AnalyzerPlace of Origin: Guangdong, China (Mainland)
Brand Name: MCH
Model Number: SM-5010
Condition: Brand newPackaging & DeliveryPackaging Details: Standard export cartons, 3 units per carton dimension of inner carton: 500*390*240mm weigth: 8kg
Delivery Detail: In 20days to large order, supply from stocks to small orderSpecifications1.1050MHz frequency
2. Used for early test in the development of electrical products, troubleshooting of CATV/MATV system
Spectrum analyzer,
0.15-1050MHz,
SM-5010/5011 spectrum analyzer is used for the early test in the development of electrical products, troubleshooting of CAT/MATV system as well as the test and trouble diagnosis of cellular phone/paging systems. Combined with the near field probes of Mz530, it can detect the missing field of radio frequency.
SM-5011 is equipped with a tracing signal generator, and in the combined use if spectrum analyzer and tracing signal generator, it can complete the work which cannot be done by other frequency sweep system, such as sweep generator, oscilloscope, etc.
|
Input frequency response |
0.15-1050MHz, 3dB |
Display accuracy of
central frequency |
+/-200KHz (frequency sweep width +200KHz) |
|
Accuracy of mark frequency |
+/-0.1% (frequency sweep width +100KHz) |
|
Frequency display resolution |
100KHz (4½ bit LED display) |
|
Frequency sweep width |
0.1MHz/div-100KHz/div with 1, 2 and 5 step system
And 0Hz/div (0 frequency sweep) Accuracy: +/-10% (each range) |
|
Intermediate frequency bandwidth |
20KHz and 400KHz |
|
Video filter |
(When on) 4KHz |
|
Amplitude range |
-107~+13dB |
|
Reference level |
-27dB~+13dB (10dB for every step) +/-2dB |
|
Average noise level |
-97dB(20KHz intermediate frequency width) |
|
Display range of CRT screen |
80 dB(10dB/div) |
|
Display range of vertical display |
+/-2dB (2 With attenuator) 250MHz signal |
|
Input attenuator |
0-40dB (4x10dB step) error: +/-1dB/10dB |
|
Maximum input level |
+10dBm,+25V DC(Input attenuator set at 0dB)
+20dBm (input attenuator set at 40dB) |
|
Frequency stability |
Over 150KHz/hour |
|
Input jack type |
BNC |
|
Input impedance |
50Ω |
|
Power supply |
220V/110V; +/-10%; 50Hz/60Hz |
|
|
|
Tracing signal generator |
|
Input frequency response |
0.15-1050MHz, 3dB |
|
Output level range |
-50~+1dBm (4x10dB) +/-3dB |
|
Output attenuator |
0-40dB (4x10dB step) error: +/-1dB/10dB |
|
Input jack type |
BNC |
|
Input impedance |
50Ω |
|
|
|
Others |
|
DC output |
+6V (for probe) |
|
AM demodulation output |
Load impedance ≥16Ω |
