500MHz Signal Generator RF Spectrum Analyzer (SM-5006)
Product Specifications
| Prod Model: |
SM-5006 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Quick details of RF spectrum analyzerPlace of Origin: Guangdong, China (Mainland)
Brand Name: MCH
Model Number: SM-5006
Condition: Brand newPackaging & DeliveryPackaging Details: Standard export cartons, 3 units per carton dimension of inner carton: 500*390*240mm weigth: 8kg
Delivery Detail: In 20days to large order, supply from stocks to small orderSM-5006 Spectrum Analyzer:1. Freq. Range: 0.1-500MHz (Max. 1050MHz)
2. Output impedance: 50 ohm
3. W/tracing signal generator*
Combined with Mz530 probe, SM-5006 can detect the missing fields of radio frequency:
Mz530 probes are ideal tools for detecting the electromagnetic fields of radio frequency. They include resistance probes, magnetic field probes and electric field probes. They are indispensable tools for test in pre-accreditation of electromagnetic interference. When the probes are used with spectrum analyzer or measurement receiving unit, they can be used to find or define the electromagnetic interference wave, and at the same time can be used to evaluate the EMI of PCBs and newly developed sample units. They can help users to evaluate the performance comparison of the transmitting field and after adding the shield. See the instruction manual of Mz530 for more details.
SM-5005/5006 spectrum analyzer is used for the early test in the development of electrical products, troubleshooting of CAT/MATV system as well as the test and trouble diagnosis of cellular phone/paging systems. Combined with the near field probes of Mz530, it can detect the missing field of radio frequency.
SM-5006 is equipped with tracing signal generator, and in the combined use if spectrum analyzer and tracing signal generator, it can complete the work which cannot be done by other frequency sweep , such as sweep generator, oscilloscope, etc.
| Input frequency response | 0.15~1050MHz,3dB |
| Display accuracy of central frequency | ±200KHz(frequency sweep width +200KHz) |
| Accuracy of mark frequency | ±0.1%(frequency sweep width +100KHz) |
| Frequency display resolution | 100KHz(4 1 /2 bit LED display) |
| Frequency sweep width | 0.1MHz/div -100KHz/div with 1,2 and step system and 0Hz/div(0 frequency sweep) accuracy : ±10% |
| Intermediate frequency bandwidth | 20KHz and 400KHz |
| Video filter | (when on)4KHz |
| Amplitude range | -107~+13dB |
| Reference level | -27dB~+13dB(10dB for every step) ±2dB |
| Average noise level | -97dB(20KHz intermediate frequency width) |
| Display range of CRT screen | 80dB(10dB/div) |
| Error of vertical display | ±2dB(2 with attenuator) 250MHz signal |
| Input attenuator | 0~40dB(4×10dB step)error:+/-1dB/10Db |
| Maximum input level | +10dBm,+25V DC(input attenuator set at 0dB)
+20dBm(input attenuator set at 40dB) |
| Frequency stability | Over 150KHz/hour |
| Input socket type | BNC |
| Input impedance | 50Ω |
| Power supply | 220V/110V; ±10%;50Hz/60Hz |
| Tracing signal generator(SM-5011 only) |
| Input frequency response | 0.15~500MHz,3dB |
| Output level range | -50~+1dBm(4×10dB) ±3dB |
| Output attenuator | 0~40dB(4×10dB step) error: ±1dB/10dB |
| Input socket type | BNC |
| Input impedance | 50Ω |
| Others |
| DC output | +6V(for probe) |
| AM demodulation output | Impedance of load≥16Ω |

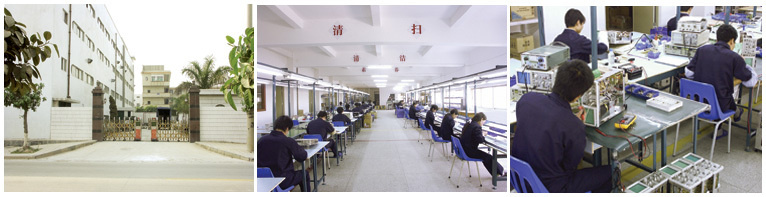

The company was found in 1995. After ten years of development, it has become strong not only in size, but also in production and R&D capability. Quality first, service utmost and economic pricing is our consistent commitment. We look forward to being your long-term partner.
We guarantee products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.

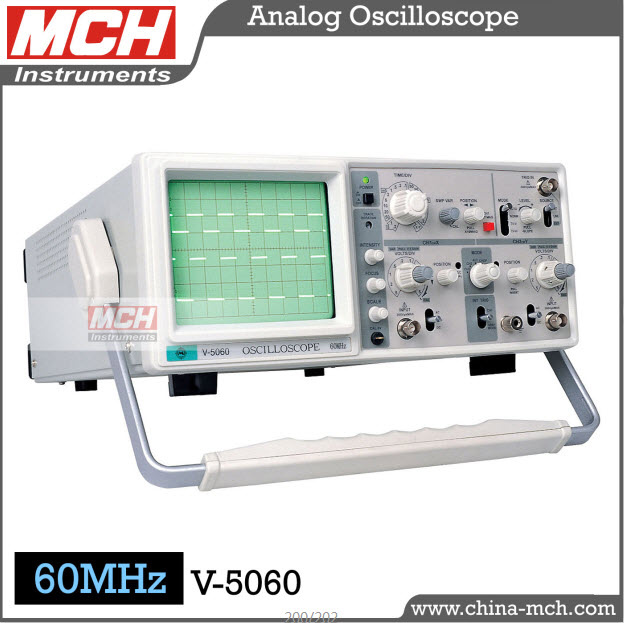

1. MCH specializes in manufacturing up to hundred models of measuring instruments whole world since year 1996, such as analogue/digital Oscilloscope, arbitrary Function/Signal Generator, Spectrum Analyzer, Frequency Counter, Millivoltmeter, DC power supply, and etc.
2. All instruments will be attached necessary accessories and one year factory warranty.
3. We can produce large customized order according to customer requirement.
4. Since we are direct producer and seller, you can get fastest customer service.
5. We Promise you a profitable business and timely delivery.
