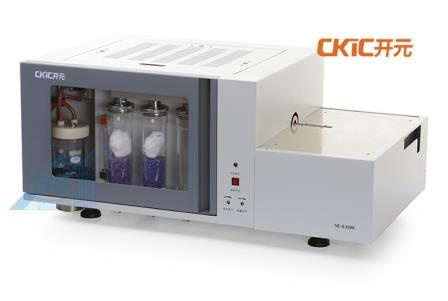

5e-As3200b Automatic Sulfur Analyzer
Product Specifications
| Prod Model: |
5E-AS3200B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Quick Details
Place of Origin: Hunan, China (Mainland)
Brand Name: 5E
Model Number: 5E-AS3200B
MODEL: 5E-AS3200B Automatic Sulfur Analyzer
Conforms to Method: GB/T214
Max. Sample loading: 20 sample per batch automatically
Analysis Method: Infrared absorption
Min. Analysis Time: 3min
Packaging & Delivery
Packaging Details: | Standard Package |
|---|
| Delivery Detail: | decided by stock |
|---|
Specifications
5E-AS3200B Automatic Sulfur Analyzer
Various Application
High Automation
Accuracy and Stability
cost saving
5E-AS3200B Sulfur Analyzer is used to determine the total sulfur content in coal and liquid fuel. A sample is combusted in a dry are atmosphere; the gases evolved go to a coulomb reaction cell containing platinum electrodes and current sensing probes. A samll current is produced as the sulfur reacts with electrodes; the current is balanced and is equivalent to the amount of sulfur present in coal.
High Efficiency
Intelligent rotary auto-loader makes it capable to load 20 samples per batch and add saple during analysis.
Easy Operation
1. Self-detection when start up, the instrument can display breakdown information and provide maintenance advice automatically.
2. Equipped with over temperature alarms and auto power-off which protecting combustion tube to prolong its uselife.
3. Large capacity reagent tube to minimize the maintenance of changing the reagent.
High Automation
The operator is limited to just loading the sample onto the auto-loader.
Cost-Saving
The test can be performed without oxygen, and the desiccant can be used repeatedly.
MODEL |
5E-AS3200B |
Conforms to Method |
GB/T214 |
Analysis Resolution |
0.01% |
Max. Sample loading |
20 sample per batch automatically |
Sulfur Range |
0.01%-20% |
Min. Analysis Time |
3min |
Operation Temp |
0-1200°c selectable (for coal 1150°c is recommended, for oil 920°c is recommended.) |
Temp.Control Precision |
±3°c |
Sample Mass |
45-55mg for coal, 80-100 for oil |
Max.Power(kW) |
3kW |
Net Weight |
57kg |
Dimensions(L×W×H) |
510mm×700mm×620mm
|
