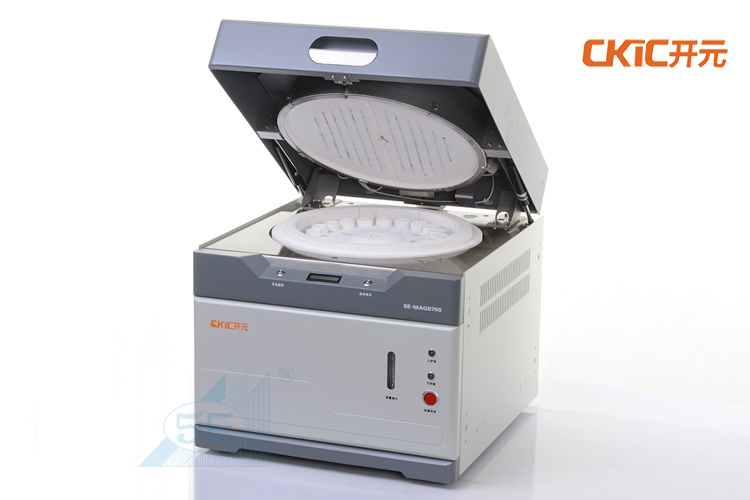

Automatic Thermogravimetric Analyzer (for Moisture, Ash, VM analysis)
Product Specifications
| Prod Model: |
5E-MACIV |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Quick Details
Place of Origin: Hunan, China (Mainland)
Brand Name: 5E
Model Number: 5E-MACIV
Analysis Purpose: Moisture, Ash, Volatile matter
Application: Coal Analysis
Sample Number: 19
Analysis time: 80min -150min
Packaging & Delivery
Packaging Details: | Standard Export Package. Suitable for long distance delivery. |
|---|
| Delivery Detail: | Depend on stock availability, please feel free to inquiry us. |
|---|
Specifications
High efficiency.
stability and reliability.
Simple and convenient operation.
DSP control technology applied.
Application
The 5E-MACIV Automatic Proximate Analyzer is used to determine the moisture, ash, volatile matter and fixed carbon in coal and coke. It can also determine ash and slag combustibles in accordance with ASTM D 5142-90, which is widely applied in power plant, coal mine, metallurgy, chemical industry, commercial inspection, scientific research, education etc.
Specification
Model |
5E-MACIV |
Sample Number |
19 |
Furnace |
Single furnace |
Analysis Time |
≤150 min for 19 samples
≤80 min for 5 samples |
Sample Mass |
0.8 g~1.2 g recommended
Up to 5 g |
Temp. Range |
Up. to 1000°C |
Analysis Precision |
As per ASTM D5142-09 |
Temp. Controlling Resolution |
±5°C |
Power |
≤5kW |
Net weight |
50KG |
Dimensions (mm) |
550 × 550 × 523 |
Features
1 Adopting the advanced DSP control technology and updated adaptive control technology to make the control real-time and reliable.
2 Use the same sample to determine the moisture,VM and ash to satisfy the requirement of rapid ash. The analysis of moisture, ash and VM of 19 samples could be determined within 150 min, it means the average analysis time for one sample is only 8 min. When the sample number is less than 5, the analysis could be finished with in 80 min.
3 High temp. furnace with ceramic fiber material, low thermal capacity, Rapid rising and cooling temp. Short time is available with multi-batch of coal to do continuous analysis. Good thermal retardation and energy save effect.
4 The fixed carbon, hydrogen and calorific value could be calculated automatically.
5 Also the fly ash of combustibility, calcined petroleum coke, loss on ignition of cement could be determined.
6 Real time balance reading display is available on the instrument. Convenient for controlling the sample weight.
7 Query, print, statistic of analysis data are available during the experiment.
