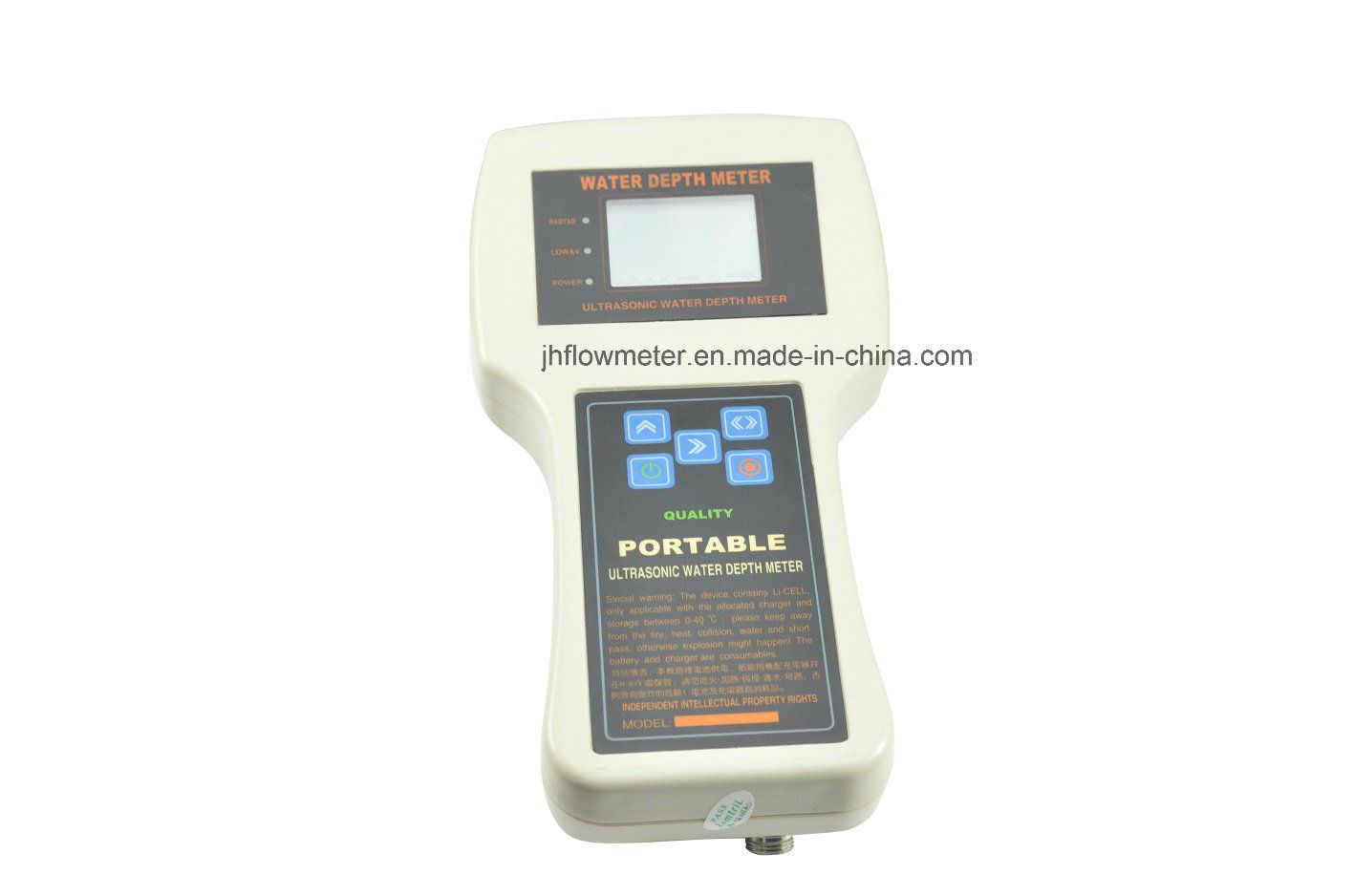

5m~500m Depth Water Level Measure Ultrasonic Liquid Level Meter (JH-ULM-SFCC)

Name: 5m~500m Depth Water Level Measure Ultrasonic Liquid Level Meter (JH-ULM-SFCC)
Brand: china-manufacturer-directory.com
SKU: 775185425
Availability: InStock
Rating: 4.9 (57 reviews)

Supplier:	Shanghai Jinghao International Trade Co., Ltd.
Price:	US $ 400-800/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,DAP,CIP

Product Specifications

Prod Model:	JH-ULM-SFCC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measuring Range:	0-300m
Unusable Area:	0.5m or Customized
Supply Voltage:	Lithium Battery or 24VDC
Output Signal:	4~20mA,RS485,Modbus,MCU
Temperature:	-10-60c
Display:	LCD
Protection Class:	IP68 or Customized
Kind:	Ultrasonic Wave
Structure:	All in One
Range:	300m
Material:	ABS

Product Description

SFCC  Ultrasonic Level Meter/Depth water level

Ultrasonic water depth meter adopt ultrasonic theory that sonic wave come across barrier then reflect to transducer, according to the time and speed, distance from barrier and transducer can be got. It can detect distance correctly and rapidly when vessel is voyaging. It is usually used in lane survey, under water,terrain survey, vessel orientation etc.

Applications:
-Lake
-Lane survey
-Reservoir
-Orientation

Features:
-Easy operation
-Easy to carry
-LCD display
-Selectable output mode

Technical parameters:

Item	Specification
Range	0-500M
Blind	500mm-1500mm
Accuracy	0.25%F·S(customize)
Output signal	4~20mA three wire system(default),4~20mA four wire system,1~5V,RS485,1~10V, RS232,1~3 relays or others
Beam angle	15°,12°,9°(according to sensor can customize)
display	LCD display(customize)
Keyboard	Five light touch buttons
Operation temperature	--10~60°C(default),customize:-20~70°C,-30°C,-40°C
Working power	DC24V/300mA
Cable way	quick connector
Mounting mode	screw, sifter clamping,
Application environment	normal pressures,non-explosion-proof,non- corrosive environment Default:PDF BOOK,anti-explosion symbol ExiaII AT3
Defend grade	IP68

Note:
Instrument operating parameters:
Display: LCD multi-information + backlit display, four-digit depth Display
resolution: d = 1mm/1cm (user settings)
Keyboard: five touch of a button
Operating temperature: 0 °C ~ 50 °C;
Storage temperature: - 20 °C ~ 70 °C
Humidity: ≤ 80% RH non-condensing (meters)
Storage humidity: ≤ 70% RH non-condensing (meters)
Dimensions: 235 × 115 × 70mm
Operating voltage: built-in rechargeable lithium battery-powered, intermittent approximately 6 hours of standby time

Sensor operating parameters:
Application of media: fresh water, sea water (determined when ordering);
Operating Temperature: 0 °C ~ 40 °C
Draft depth: ≥ 500mm
Sensor lead: 10m
Protection level: IP68
Weight: Net weight ≤ 2.5Kg, Gross weight ≤ 3Kg
packaging Packing size: 27 × 12.5 × 21Cm
Installation: hand-held portable instrument;
sensor 1 inch screw mounting. Dedicated charger:
Input Voltage: 110 ~ 240VAC 50/60Hz
Output voltage: 12.6VDC 350mA
