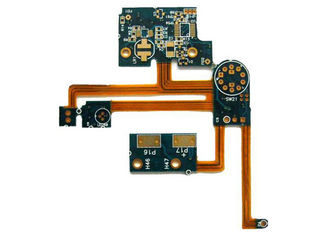

6 Layer Flexible Printed Circuit Board for LCD Display
Product Specifications
| Prod Model: |
RFPCB-5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Layers No: |
1-6 Layers |
| Available Laminates Material: |
Pi,Pet,Fr4+Pi |
| Copper Foil Thickness: |
12um,18um,35um,70um |
| Immersion Tin Thickness: |
0.7-1.2um |
| Tin Plating Thickness: |
3-15um |
| Structure: |
Double-Sided FPC |
| Material: |
Polyimide |
| Combination Mode: |
Adhesive Flexible Plate |
| Application: |
Aviation and Aerospace |
| Conductive Adhesive: |
Anisotropic Conductive Adhesive |
| Brand: |
Cayera |
Product Description
Quick Details:
· Layer count: rigid PCB 6 layersl, flex PCB board 1 layer
· Line-width/spacing: 6 mil/6mil
· Minimum PTH: 0.4mm
· Application: medical equipment
· Carbon and silver ink printing
· Gold-plated surface finish
· 3M adhesive is available
· Rigid & Flex PCB Manufacturer
Description:
Flexible PCB boards, also Flex PCB, FPC printed circuit, was originally designed as a replacement for traditional wire harnesses. It is often used as connectors replace rigid printed circuit boards where high requirement on flexibility, space savings, or production constraints limit.
Advantage of Flexible PCB Boards
· Flexible PCB design and layout
· Flexible, space savings
· Reduced wiring errors
· Increase the flexibility of connection compared with mechanical connectors
· Easier installation and service
· Higher circuit density
· More robust operating temperature range
· Stronger signal quality
· Improve manufacturing yield and reliability
· Improve reliability and impedance control
· Reduce size and weight
· Improve aesthetics of finished products
Flexible PCB board Applications:
1) MP3, MP4 player, LCD monitors and LCD TV sets, Printer, LCD display
2) Optical reading and writing device, Antenna Board
3) Back light, Disk film, Antenna Board
4) Note book and digital cameras, Camera module group
5) Medical Equipment, Auto Meter, Printer, clamshell phone /flip phone
6) Oscilloscope/ oscillograph, Multimeter, electronic measuring instrument
7) CD, DVD, electronic Organ, plasma display Home Appliances
Flexible PCB board Spec
Agile Circuit provides flexible PCB boards manufacturing service as well as rigid PCB board to meet our customer wide demand. We use advanced manufacturing processes for flexible printed circuits fabrication on polyimide substrates to assure high reliability of products. We specialize in single and double-sided circuits, also some multi-layer and Flexible Electronic Circuit assemblies, which is widely used in the customer electronics, medical device, communicating equipment, industrial equipment, and aerospace markets. Below is production spec. of flexible PCB:
| Layers No | 1-6 layers |
| Finished Board Thickness | Min.:10x45mm Max.:250x1200mm |
| Available Laminates Material | PI,PET,FR4+PI |
| Finished Board Thickness tolerance | ±0.01mm |
| Finished hole diameter(Min.) | 0.1mm |
| Finished hole diameter(Max) | 0.6mm |
| NPTH Hole diameter tolerance | ±0.025mm |
| PTH hole diameter tolerance | ±0.050mm |
| Copper foil thickness | 12um,18um,35um,70um |
| Circuit width/spacing(Min.) | ≥0.065mm(1/2oz)≥0.05mm(1/3oz) |
| Surface Finished type | OSP, Gold plating, Immersion Gold, Tin plating, Pb/ Pbfree HASL |
| Gold Flash Ni/Au thickness | Ni:2.54-9um Au:0.025-0.5um |
| Immersion Tin thickness | 0.7-1.2um |
| Tin plating thickness | 3-15um |
| Drill hole position tolerance | ±0.05mm |
| Punching dimension tolerance | ±0.05mm |
| Certificate | ROHS,UL,ISO9001 |
Advantage:
1. We build flexible circuits to the exacting specifications of our customer
2. Our engineer and production staff is with many decades of experience in circuit board.
3. Competitive cost as well as high quality.
4. Excellent service and prompt delivery
5. ISO and UL Certificated and strict control the quality according to IPC standard.
