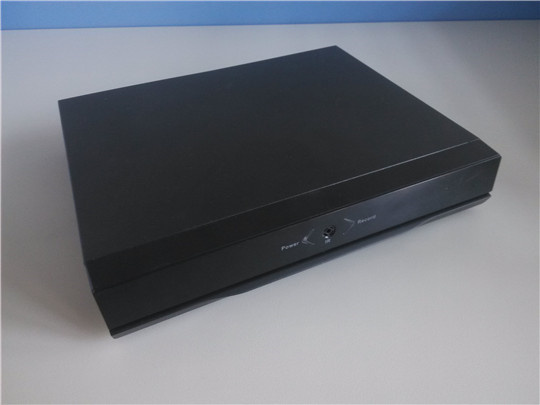

Double Stream 4CH Real Time Record Mobile Remote Ahd DVR

Name: Double Stream 4CH Real Time Record Mobile Remote Ahd DVR
Brand: china-manufacturer-directory.com
SKU: 753795095
Availability: InStock
Rating: 4.5 (51 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	200/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	AHR-AP104
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Video Coding:	H.264
Stream Type:	Video Streaming / Composite Stream
Audio Sampling Rate:	8kHz,16bit
Video Input:	4CH BNC Port
Backup Mode:	Mobile Hard Disk / U-Hard-Disk / Network
HDD Port:	Support One SATA Port Max 4tb
Work Temperature:	-10deg-+55deg
Type:	Standalone
Application:	Commercial DVR
Interface Type:	BNC/VGA/HDIM
Operating System:	Linux
Compressed Format:	H.264
Video Compression:	H.264
Audio Input/Output:	4 Channel
Video Input/Output:	4 Channel
Remote Control:	With Remote Control

Product Description

Features:

1. H. 264 Video Standard and G. 711 Audio standard
2. Video features: Manual recording, timer recording, motion detection
3. Support Mobile phone Surveillance
4. Supporting web, CMS, center platform management software MYEYE, provide
SDK development
5. Networking Protocol: Support ONVIF 2.0,
6. Support AHD CAMERA in the market
7. Transmission over long distances, 720P via 75-3 coaxial, ensures transmission of 500-meter HD video signals
8. Anti-interference ability,under strong interference environment ensure the transmission of high-definition video display, distortion does not occur, dropped frames

SPECIFICATIONS

Performance Parameters
Sensor	Main Board Sensor	Industrial Embedded Microprocessor
Sensor	Operating System	Embedded LINUX operating system
System	Video Coding	H.264
	Coding Resolution	4CH 720P(1280x720)
	Video Frame	PAL:1~25FP/S;NTSC:1~30FP/S
	Video Bit Rate	512Kbps-4096Kbps,Customizable,Default to be 2048Kbps
	Stream Type	Video Streaming / Composite Stream
	Double Stream	Support
	Audio Coding	G.711
	Audio Sampling rate	8KHz,16Bit
	Audio Bit Rate	64Kbps
Video Spec	Video Input	4CH BNC Port
	Video output	1CH CVBS,1CH VGA output,1CH HDMI port
	Audio input	1ch RCA
	Audio output	1ch RCA audio output
Recording Manage	Recording Mode	Automatic recording, Manual Recording, Motion Detection Recording, Alarm Recording
	Playback	4CH Playback
	Backup Mode	Mobile Hard Disk / U-Hard-Disk / Network
Network	Protocol	Support TCP/IP,UDP,RTP/RTSP,DHCP,PPPoE,DDNS,NTP etc.
	IE Control	With WEB Server to modify configuration parameters and remote control IE
	P2P Cloud	Support login via www.yunyis.com to meet One-Key Remote Control.
	Mobile Remote	Support IOS, Android,Blackberry, Symbion, Software .
HDD	HDD Port	Support one SATA port max 4TB,No e-SATA port.
Interface	Network/USB	2pcs RJ45 port, 100M E-internet Port ; 2PCS USB Port
Interface	Interface	1PC Standard RJ485 port
Others	Power/Consumption	DC12V ; <15W(No HDD)
Others	Temperature/Humidity	Temperature:-10ºC-+55ºC / Humidity: 10%~90%
