Product Specifications
Prod Model: |
IPC-AP210 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Minimum Illumination: |
0lux(IR on) |
Power Supply: |
DC12V±10% |
Color: |
White |
Array LED: |
2PCS |
White Balance: |
Automatic |
Technology: |
Infrared |
Style: |
Mini Camera |
Type: |
IP Camera |
Sensor: |
CMOS |
HDMI Format: |
720P |
Kind: |
Autofocus Lens |
Certification: |
RoHS |
Feature: |
Auto BLC |
Effective Distance: |
10-30m |
Sensor Size: |
1/4 inch |
Remote Control: |
With Remote Control |

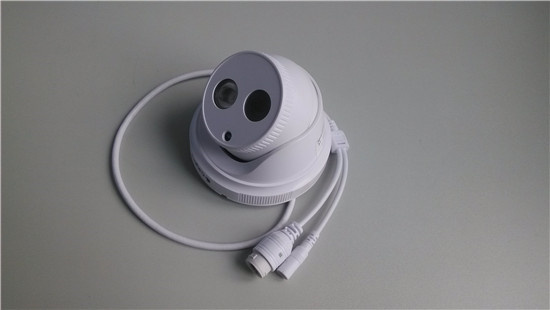

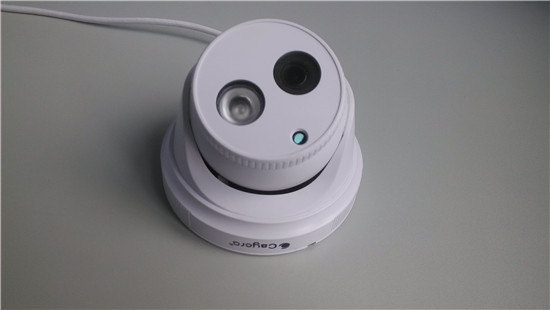

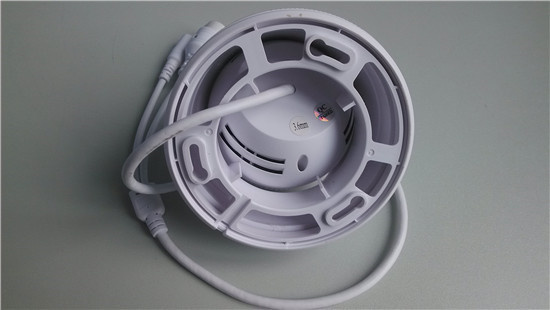

Product Description
Quick Detail
- 3.6/6mm Lens Wide Angle of view
- Minimum illumination 0Lux(IR ON)
- E-mail alerts, alarm client
- High strength plastic environmental protection material
- Support one channel audio input, one channel audio output
Application
Family,The school,Bank,The factory,The parking lot,Square,Shopping center,The airport,The bus station,The supermarket,Prison,Office Building,meeting,Park,Chemical,
Oil,Mine,Community
Features
- H.264HP compression,
- RJ45, 12V DC output,
- Support IE,mobilephone and CMS view
- Support ONVIF2.0
- Support for backlight compensation, auto iris, auto electronic shutter function, adapt to different environmental monitoring
- Using EXIR dot infrared light technology, irradiation distance up to 20m
- Remote view and management by IE and client software (CMS)
|
SPECIFICATIONS | Product Type | IP Camera | Image Sensor | Hi 3518E+OV9712 | Hi 3518C+AR0130 | Effective Pixels | 720P 1280×720 | 960P 1280×960 | Video Compression | H.264 | Video frame rate | 25FPS | Video bit rate | 128Kbps~8Mbps | safety performance | safety | Synchronization | Internal Synchronization | SNR | 44DB | Minimum illumination | 0Lux(IR ON) | Privacy | PrivacySupports four block area block | Exposure Contro | Automatic | White Balance | Automatic | Day and night function | With IR-CUT | IR Length | 15m | Lens | 3.6mm | Detection and alarm | E-mail alerts, alarm client | Ethernet | 10/100M Ethernet, RJ45 port | Network protocol | Standard HTTP, TCP / IP, ICMP.RTSP, RTP, UDP, RTCP, SMTP,FTP, DHCP, DNS, PPPO | Network transmission | P2P penetrate automatic forwarding | Power Supply | DC12V±10% | Working Environment | -10deg~+60deg, Less than 90% RH |
|
|
Product details
