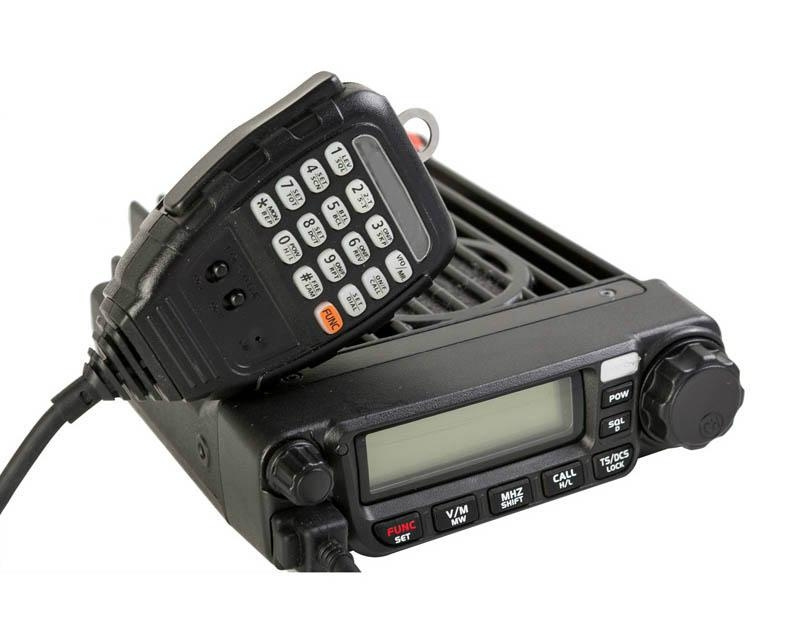

Quanzhou Truest Communication Co., Ltd. >> 60W VHF\UHF Mobile Radio Ham Amateur Radio Transceiver with Dtmf Microphone TM-8600

60W VHF\UHF Mobile Radio Ham Amateur Radio Transceiver with Dtmf Microphone TM-8600

$60W VHF\UHF Mobile Radio Ham Amateur Radio Transceiver with Dtmf Microphone TM-8600$

Supplier:	Quanzhou Truest Communication Co., Ltd.
Price:	Negotiable/Piece
Min Order:	20/Piece
Quantity::
Trade Terms:	CFR,CIF,EXW

Product Specifications

Prod Model:	TC-TM8600
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Hys
Maximum Range:	>10km
Is Display:	Yes
Type:	Two Way Radio
Dimensions:	145mm190mm47mm
Frequency Range:	136-174/245-246/400-490MHz
Storage Channel:	200
Talk Range:	50km
With:	Emergenvy Alarm
Warranty:	One Year
Certification:	CE
Wavelength And Frequency:	Long-wave
Style:	Sky Wave
Condition:	New
Screen:	With Screen
Standard:	Standard

Product Description

60W VHF\UHF Mobile Radio Ham Amateur Radio Transceiver with DTMF Microphone TM-8600

Main Functions:

Frequency Range: VHF:136-174MHz 245-245.9875MHz (220-260MHz) UHF: 400-490MHz
Output Power: VHF: 10W/25W/60W UHF: 45W/25W/10W
1750Hz Tone	CTCSS/DCS setting & scanning
0-9 SQL grade setting	Frequency/Channel scanning
High/Mid/Low power selectable	Voice compander
Repeater offset shift	Keypad lock function
Contact book	Battery voltage display
DTMF/2 tone/5 tone	ANI ID
Remote kill/ stun/ activate/ revive	Emergenvy alarm
Wide/Narrow band setting	TX inhibit
Busy Channel Lock-Out	Channel name editing
Reverse frequency	Talk around
Scrambler(Optional)	Voice prompt
Time-out Timer	Auto Power off

Specification

Model	TM-8600
General
Frequenvy Range	136-174/245-246/400-490MHz
Channel Capacity	200
Channel Spacing	5/6.25/8.33/10/12.5/15/20/25/30/50KHz
Freruency Stability	2.5ppm
Operating Temperature	-20°C ~ + 60°C
Operating Voltage	13.8V DC ± 15%
Dimension(HxWxD)	145mm x190mm x47mm
Weight(with bracket)	1200g
Receiver
Reference Sensitivity	0.25V / 0.35V
Operating Bandwidth	60dB 12.5KHz /70dB 25KHz
Adjacent Channel Selectivity	60dB 12.5KHz 70dB 25KHz
Inter-modulation Rejection	≥60dB/ ≥65dB
Spurious Response Rejection	≥70dB
Rated Audio Response	+1-+3dB
Rated Audio Distortion	<5%
FM Hum&Noise	≥40dB 25KHz /≥45KHz 12.5KHz
Transmitter
RF Power	45W/25W/10W(UHF)/60W/25W/10W(VHF)
Frequency Modulation	11kΦF3E / 16kΦF3E
Modulation Distortion	<5%
FM Noise	≥36dB 25KHz /≥40KHz 12.5KHz
Adjacent Channel Power	≥60dB 12.5KHz /≥70KHz 25KHz
Audio Response	+1-+3dB
Audio Distortion	<5%

Note: The freqeuncy of this radio is 136-174Mhz or 400-490Mhz. It is single band, so when you place an order ,kindly pls inform me what freqeuncy do you want?

Shipment:

1. We will arrange the shipment within 24 hours after receive your payment.

2. And if you make the payment on Saturday or Sunday, We'll ship it on the following Monday (weekend is not business day, Hope your understanding)

3. We usually arrange the shipment by express like DHL, EMS,UPS ,FEDEX TNT and so on that depends on different countries.

4. DHL and Fedex is our first choice because they are faster than others. If you need special shipping ways, please kindly let us know.

5. Our shipping price is not including any taxes,VAT or other changes. We will declare it with lower price in the invoice to reduce import tax for you.

6. If you have any requirments, feel free to contact with me.

Return:

1. We offer a 14-day exchange and refund policy for defective items.

2. If there is defective item received, Please show me the evidence by picture or video,buyer return the defective itemat his own costand we will ship the replace item to you at my shipping cost.

3. If you are not satisfied with our product, you can return the product. After we get the item, we will give you a refund ,However the customer should bear the shipping costs to and fro.

4. Please contact us before your return the item, we will offer you the right return address.

Feedback:

1. Our goal is to make sure you are a happy customer and pleasant shopping with us.

2. If you are satisfied with the purchase and our total service, your comment is very important in our business success.Please take a minute to leave us a positive feedback. If you are not satisfied with your purchase in anyway, Please give us the opportunity to resolve any problem, We understand the concerns and frustrations you might have, and will try our best to resolve the issues.

Warranty:

1. One Year Warranty for this product. However, don't disassemble the prdoduct by yourself. Otherwise we can not supply the warranty.If have any problems, pls contact us first.

2. Shipping cost for warranty repair/replace have to pay by buyer.
