Product Specifications
| Prod Model: |
PC-755 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ratio: |
16:9 |
| Backlight: |
LED |
| Signals: |
AV, USB, RS232 |
| Internet: |
WiFi, LAN Port |
| Type: |
Embedded Systems |
| Processor Type: |
Samsung |
| Certification: |
FCC |
Product Description

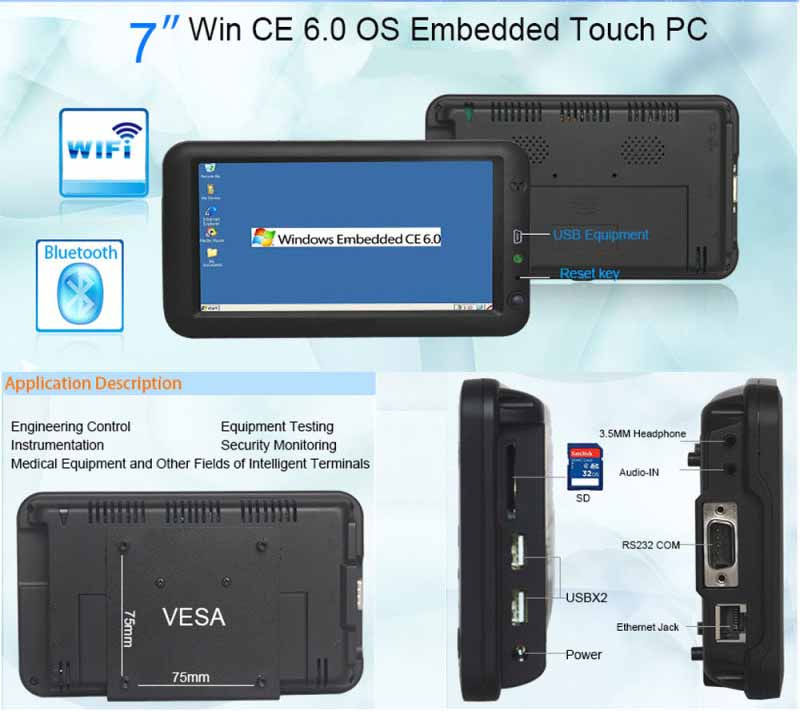

7 inch Touch Mini PC with Window CE 6.0
GPS, WiFi, Bluetooth calling(optional), VGA out, USB sync with PC
Support Visual Basic\EVC\Visual Studio\net framework 3.5
Model No. PC-755
CPU Samsung s3c 6410
667MHz
Memory DDRII SDRAM 256MB(MAX to 512MB)
Nand Flash 2GB(MAX to 4GB)
LCD Screen Resolution: 800X480
DOT pitch: 0.0642(W) × 0.1790(H) mm
Brightness: 400 CD/m²
Contrast: 500: 1
View Angle: 70/70 (L/R) 50/70(U/D)
Operation System: WINDOW CE 6.0
Interface Mini USB 2.0(OTG) 1
USB Host 1.1 2
LAN Port RJ45 1
RS232 1(support to 2)
3.5MM Earphone Jack 1
3.5MM Audio Input 1
Input Voltage: 9V-24V
Max Consumption: ≤ 8 W
Working Temperature: 0~ 50º C 0~85% RH
Store Temperature: -10~ 60º C 0~75% RH
Unit Size: 195Lx118Wx35H(mm)
Unit Weight: 390g
Features:
Mini USB Input: USB Device 2.0 input for PC
Memory Card Insert: SD Card Insert, Max to 32G
WiFi(optional):
Wi-Fi RT2870 Wireless Adaptor, support IEEE802.11b/g(Standard), IEEE802.11g (6M/S)
Bluetooth(optional): Bluetooth V2.0, 2.4GHz for Data Transmission
Li-Battery(optional): 7.4V 2500mAh; Work Hour: 4 hour
Built-in speaker
|
Accessory: |
Optional Accessory: |
Packing |
|
Home Power Adapter |
Li-Battery |
Box size |
35x20.5x7.1CM |
|
Mini USB Cable |
External GPS |
Per box G.W. |
3kgs |
|
Touch pen |
External USB Cameras |
Per Carton |
10pcs |
|
VESA plate (659) |
9P RS232 F-F Cable (P9 + 5V ) |
Carton Size |
48x44x36cm |
|
Drive Disc |
Car Power Adapter |
N.W. |
19kgs/carton |
|
Operation manual |
3.5mm Audio Cable |
G.W. |
20kgs/carton |
