Product Specifications
| Prod Model: |
71801C DBL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Precision Grade: |
P4/P2 |
| Band: |
Tmp |
| Rolling Body: |
Ball Bearings |
| The Number Of Rows: |
Single |
| Outer Dimension: |
Small and Medium-Sized (',60-115mm) |
| Material: |
Bearing Steel |
| Separated: |
Unseparated |
| Spherical: |
Angular Contact Ball Bearing |
| Load Direction: |
Radial and Trust Bearing |
Product Description

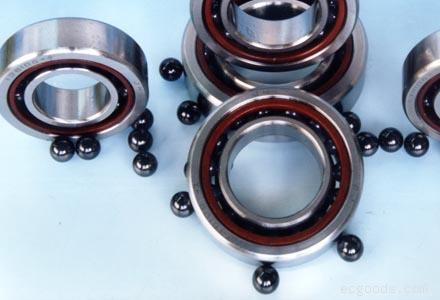

71801C DBL P4 Angular Contact Ball Bearing (12x21x5mm) Machine Tool Bearing high speed Motor Bearing
A . Angular Contact Ball Bearing Parameters
Brand- TMP
Structure- Angular Contact ball
Model number- 71801C
Inner ring(mm)- 12
Outer ring(mm)- 21
Width(mm)- 5
Weight(Kg)- 0.006
Materials- Chrome steel/GCR15
Precision grade- P4/P2
Lubrication type- Grease lubrication
Contact Angle- C=15°;AC=25°
Material(Ball)- Steel ball(SUJ2); SN24:Ceramic ball(Si3N4)
Number of Row- Single rows
Material(Cage)- TYN-PA;TR-PF
Combination- "SU:Universal combination (single row)
DU:Universal combination (double rows)
DB: Back-to-back combination
DF: Face-to-face combination
DT: Parallel combination
DBD.DFD.DTD: Three rows
DBB.DFF.DBT.DFT.DTT: Four rows"
Preloaded- "EL: Micro preloaded
L : Light preload
M : Medium preloade
H : Heavy preloaded"
B . 71801C Angular Contact Ball Bearing Specification Sheet
Model Number | Dimensions | α=15° | α=25° | Material
(Cage ) | Weight
(kg)
Approx |
| Limiting speed | Limiting speed |
| d | D | B | Basic load
rating | Lubrication | Basic load
rating | Lubrication |
| Cr Cor | Grease Oil | Cr Cor | Grease Oil |
| 71801C | 12 | 21 | 5 | 2.0 1.4 | 69000 109000 | 1.9 1.3 | 62000 94000 | PF | 0.006 |
C . 718 series Angular Contact Ball Bearing Details
Product Features
Precision Angular Contact Ball BearingsDue to their internal design, angular contact ball bearings can withstand high radial-axial loads and reach high speeds. They are asymmetrical for manufacturing reasons and can withstand unidirectional axial loads only. Angular bearings are usually mounted in a group of two or more opposed preloaded units with rigid or elastic spacers. Typically, the inner and outer raceways and balls are made of chrome steel. Where operating conditions are severe, bearings may have ceramic balls creating a hybrid bearing.
Series Introduction
ISO 18 Series - highest speed, lowest load bearings-718 Series Angular Contact Bearings
Series Model No.
71800C 71801C 71802C 71803C 71804C 71805C 71806C 71807C 71808C 71809C 71810C 71811C 71812C 71813C 71814C 71815C 71816C 71817C 71818C 71819C 71820C 71821C 71822C 71824C 71826C 71828C 71830C 71832C 71834C 71836C 71838C 71840C 71844C 71848C 71852C 71856C 71860C 71864C 71868C 71872C 71876C 71880C 71884C 71888C 71892C 71896C 718/500C
Applications
Angular contact bearing applications :
electric motors,Spindle,automotive applications, home appliances, industrial equipment.
