Product Specifications
| Prod Model: |
7205AC DBL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Precision Grade: |
P4/P2 |
| Band: |
Tmp |
| Rolling Body: |
Ball Bearings |
| The Number Of Rows: |
Single |
| Outer Dimension: |
Small and Medium-Sized (',60-115mm) |
| Material: |
Bearing Steel |
| Separated: |
Unseparated |
| Spherical: |
Angular Contact Ball Bearing |
| Load Direction: |
Radial and Trust Bearing |
Product Description

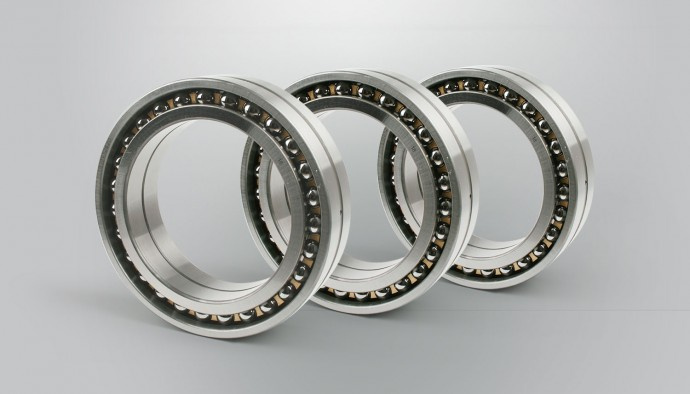

7205AC/C DBL P4 Angular Contact Ball Bearing (25x52x15mm) Machine Tool Bearing high speed Spindle bearings
A . Angular Contact Ball Bearing Parameters
Brand- TMP
Structure- Angular Contact ball
Model number- 7205 AC/C
Inner ring(mm)- 25
Outer ring(mm)- 52
Width(mm)- 15
Weight(Kg)- 0.125
Materials- Chrome steel/GCR15
Precision grade- P4/P2
Lubrication type- Grease lubrication
Contact Angle- C=15°;AC=25°
Material(Ball)- Steel ball(SUJ2); SN24:Ceramic ball(Si3N4)
Number of Row- Single rows
Material(Cage)- TYN-PA;TR-PF
Combination- "SU:Universal combination (single row)
DU:Universal combination (double rows)
DB: Back-to-back combination
DF: Face-to-face combination
DT: Parallel combination
DBD.DFD.DTD: Three rows
DBB.DFF.DBT.DFT.DTT: Four rows"
Preloaded- "EL: Micro preloaded
L : Light preload
M : Medium preloade
H : Heavy preloaded"
B . 7205 Angular Contact Ball Bearing Specification Sheet
| Model Number | Dimensions | α=15° | α=25° | Material
(Cage ) | Weight (kg)
Approx |
| Limiting speed | Limiting speed |
| d | D | B | Basic load
rating | Lubrication | Basic load
rating | Lubrication |
| Cr Cor | Grease Oil | Cr Cor | Grease Oil |
| 7205 | 25 | 52 | 15 | 16.8 13.1 | 29000 44000 | 16.1 12.5 | 25000 39000 | PA/PF | 0.125 |
C . 72 series Angular Contact Ball Bearing Details
Product Features
Precision Angular Contact Ball BearingsDue to their internal design, angular contact ball bearings can withstand high radial-axial loads and reach high speeds. They are asymmetrical for manufacturing reasons and can withstand unidirectional axial loads only. Angular bearings are usually mounted in a group of two or more opposed preloaded units with rigid or elastic spacers. Typically, the inner and outer raceways and balls are made of chrome steel. Where operating conditions are severe, bearings may have ceramic balls creating a hybrid bearing.
Series Introduction
ISO 02 Series - highest load, lowest speed bearings-72 Series Angular Contact Bearings
Series Model No.
7200AC/C 7201AC/C 7202AC/C 7203AC/C 7204AC/C 7205AC/C 7206AC/C 7207AC/C 7208AC/C 7209AC/C 7210AC/C 7211AC/C 7212AC/C 7213AC/C 7214AC/C 7215AC/C 7216AC/C 7217AC/C 7218AC/C 7219AC/C 7220AC/C 7221AC/C 7222AC/C 7224AC/C 7226AC/C 7228AC/C 7230AC/C 7232AC/C 7234AC/C 7236AC/C 7238AC/C 7240AC/C 7244AC/C
Applications
Angular contact bearing applications :
electric motors,Spindle,automotive applications, home appliances, industrial equipment."
