Shenzhen Feelworld Technology Co., Ltd. >> 8'' Open Frame Touch All in One Computer for Industrial Control System

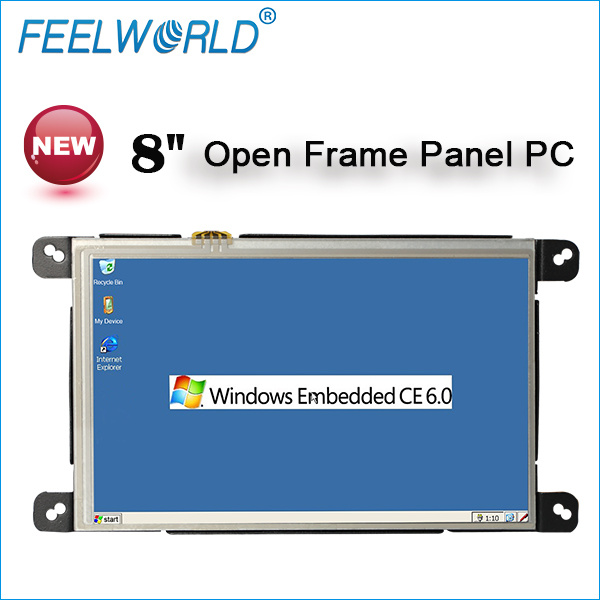

8'' Open Frame Touch All in One Computer for Industrial Control System

Name: 8'' Open Frame Touch All in One Computer for Industrial Control System
Brand: China-Manufacturer-Directory.com
SKU: 732211115
Availability: InStock
Rating: 4.9 (89 reviews)

Supplier:	Shenzhen Feelworld Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	W859
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	8 Inch Open Frame Industrial PC
Size:	8''
Ratio:	16:9
Backlight:	LED
Internet:	WiFi, LAN Port
Frame:	Plastic Frame
Color:	Black
Operation System:	Linnux, Wince 6.0
Brightness:	450CD/M
Resolution:	800X480
Screen Size:	6-10''
Touch Screen:	Touch Screen
Application:	Industrial
CPU Type:	Scs6410

Product Description

8'' open frame touch all in one computer for industrial control systerm
FEELWORLD new product Open Frame Panel PC with bezel-less display provides design flexibility for customers without any limitation. Customers are provided with various innovative mounting options, such as open frame mount from both rear and front sides. Open Frame Panel PC has ultra slim appearances and can be easily integrated into a custom enclosure. Ideal for space-critical environments, Open Frame Panel PC is targeted at vertical market segments, inclusive of Industrial Control Machine, ATMs and vending machines in transportation stations and entertainment venues.

Specification
Description	8"Industrial Embedded Touch PC
Model No.	W859
CPU	Samsung s3c 6410
	667MHZ
Memory	DDRII SDRAM 256MB(MAX to 512MB)
Nand Flash	2GB(MAX to 4GB)
LCD Screen	Resolution: 800x480
	Dot pitch: 0.0642(W) × 0.1790(H) mm
	Brightness: 450 cd/m²
	Contrast: 500:1
	View Angle: 70/70 (L/R) 50/70(U/D)
Operation System	WINDOW CE 6.0\Linux
Features	Mini USB Input	USB Device 2.0 input for PC
	Memory Card Insert	SD Card Insert,Max to 32G
	WIFI(optional)	Wi-Fi RT2870 Wireless Adaptor, support IEEE802.11b/g(Standard) IEEE802.11g (6M/S)


	Bluetooth(optional):	Bluetooth V2.0,2.4GHz for Data Transmission
	Li-Battery(optional):	7.4V 2500mAH; working Hour:4 hour
Interface:	Mini USB 2.0(OTG)	1
	USB Host 1.1	2
	Lan Port RJ45	1
	RS232	2
Support Visual Basic\EVC\Visual Studio\net frameworking 3.5
Support keyboard, mouse and U disk
Support RS232 ,TTL(Optional)
Input Voltage:	9V-24V
Max Consumption:	≤8 W
working Temperature:	0~50 0~85% RH
storage Temperature:	-10~60 0~75% RH
Unit Size:	195Lx120Wx30H(mm)
Unit Weight:	560g
Applications:
Industrial control system
Automotive media center, telematics and navigation
Ultra mobile PC
Personal Media Player
Home automation and media center
Order management system
E-education device
Advertising digital signature
