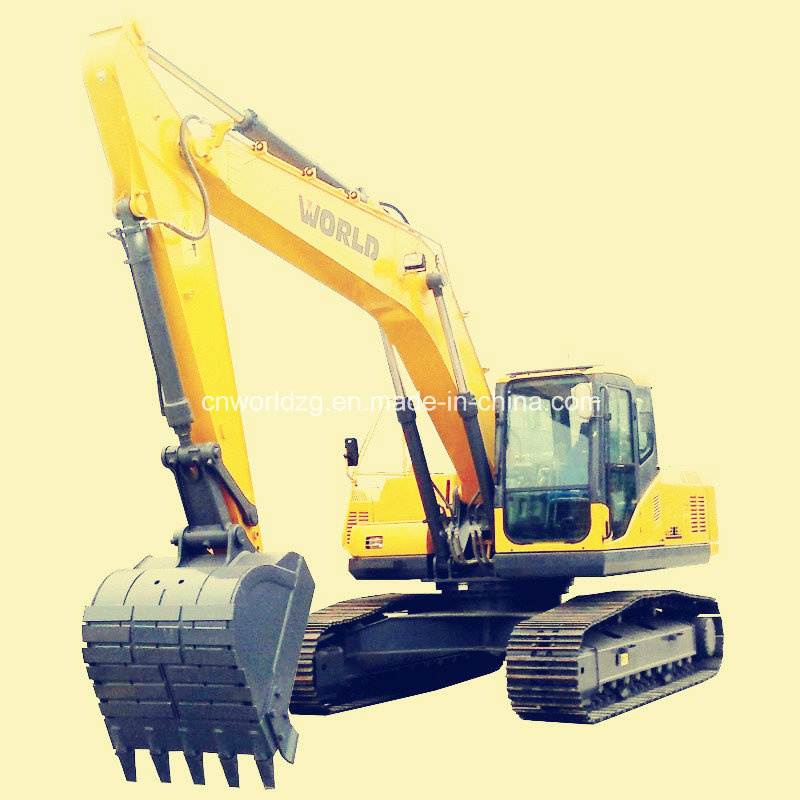

0.9m3 Bucket Excavator with Isuzu Engine

Product Specifications

Prod Model:	W2215
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Machine Type:	Hydraulic Crawler Excavator
Engine Power:	113.2kw
Operation Weight:	21400kg
Track Width:	600mm
Hydraulic Pump:	Kawasaki
Working Pressure:	34.3MPa
Max. Digging Height:	7196mm
Max. Digging Depth:	6486mm
Max. Digging Radious:	9813mm
Min Swing Radious:	2708mm
Type:	Crawler Excavator
Size:	Medium-Sized
Certification:	ISO9001: 2000
Condition:	New

Product Description

0.9m3 bucket excavator with ISUZU engine

Features:

1)The excavator uses riginal ISUZU engine, low noise, low fuel consumption and low emission.
2)The excavavtor adopted world class Kawasaki hydraulic system, high efficiency and reliability.
3)Safe and comfortable driving cabin with air conditioner.
4)All structural parts are produced by us for better quality control.
5)ESS power control system is used with multi-power modes to adapt to different operations.
6)Superior excavation performance, design of enhanced structural parts, uses high tensile steel plate.

Details:

1) ISUZU engine, 113.2kw/2200rpm, 6 cylinders, 4 strokes, water cooling, turbocharged, original Japan. Strong power with lower noise and lower fuel consumption. Global warranty and it is easy to get maintenance parts all the world.

2) Famous brand hydraulic system, high performance with global warranty.

3) Spacious cabin with air seat, radio and air condtioner. ECU and monitor control system and you can set the working mode and check the machine working situations. Maintenance information can be also checked.

Specifications:

Working Specifications
Operating weight	21400kg
Bucket capacity	0.9CBM
Max. breakout force
(1)Bucket digging force	120KN
(2)Arm digging force	94.5kn
Max. digging height	10095mm
Max. dumping height	7196mm
Max. digging depth	6486mm
Max. vertical wall digging depth	5903mm
Max. digging reach	9813mm
Min. front swing radius	2853mm
Max. pulling force	220KN
Max. travel speed(double modes)	5.2km/h
Max. grade ability	70%
Overall dimensions
Length(with bucket on ground)	9400mm
Width(600mm crawler shoes )	2800mm
Bucket width	1150mm
Ground length (in transportation)	9400mm
Height(To the top of the boom)	2937mm
Height(To the top of the cab)	3010mm
Counter weight ground clearance	1094mm
Track gauge	2200mm
Tail swing radius	2708mm
Min. ground clearance	460mm
Rotating platform width	2712mm
Counter weight height	2123mm
Crawler teeth thickness	26mm
Reach from swing center to tail	2708mm
Crawler ground length	3370mm
Standard arm length	2925mm
overall length of crawler	4155mm
