Product Specifications
| Prod Model: |
ST-605SZ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Access Point Outdoor Long Range Wireless AV Transm |
| Transmission Mode: |
Point to Point |
| Type: |
Outdoor |
| Function: |
Video Audio Signal |
| Transmission Frequency: |
1.0~1.7GHz, or 10.7~12.7GHz |
| Transmission Distance: |
5~10km |
| Color: |
Silver |
| Antenna: |
External Antennal |
| Technical: |
Waterproof AV Sender |
| Application: |
Image Transmission |
| Modulation: |
FM |
Product Description

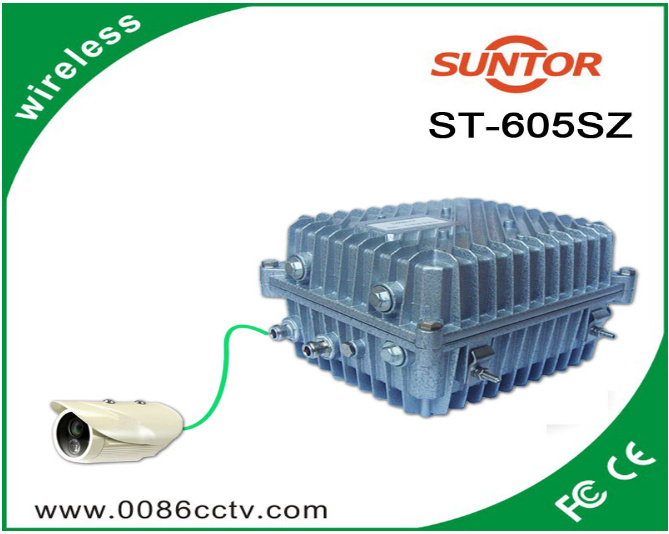

Access point outdoor long range wireless av transmission
Product Overview:
1. ST-605SZ cctv wireless av transmitter and receiver using frequency modulation of microwave instruction means to transmit remote monitoring video signals and audio signals, the control center can receive command signals sent by the 485.
2. The system transmission distance, high stability, frequency adjustment digital display, while the front camera system can control the vertical and horizontal rotation and zooming the lens closer to the scene to control lights and windshield wipers (the ball machine, with the universal decoder Outdoor PTZ devices such as 485),
3. Itself a function of waterproof and dustproof, suitable for outdoor and harsh environments.
4. Change the system with multiple frequency band options: Ku band (10.7-15GHz), instructions to receive frequency 227 ~ 233MHz, it has strong anti-interference, image transfer complete Real-time stable and very clear, the transmission distance can be up to 5-10 km, with the relay not afraid to block. The system technology is mature and cost-effective.
Features
1. Can be powered with solar energy
2. Built in lightening-protected
3. Easy maintenance
4. Construction of a simple, short cycle
5. Stable and clear images;
Microwave Transmitter technical parameters:
Frequency: 1.0~1.7Ghz or 10.7~12.7Ghz
Frequency Stability: 0.0005%(Standard)
Modulation: Fm
Output level: 15~30dBm
Output interface: L band/KU band
Phase noise @10KHz: -75dBc
Output impedance: 50ohm
Main application
1. Traffic control and used to electronic police
2.110 police command center on the city major site of control
3. Police communications command vehicle of the important site of control
4. Armed police and armed police to combat the fire command center
5. Postal savings and modernization of command and management control
6. Toll wireless monitoring system
7. Major warehouses, terminals wireless monitoring
8. Oilfield and mining of important on-site wireless monitoring
9. Forest Fire Monitoring
10. Area Wireless Monitoring
11. Bank of monitoring and control network
12. Coastline Wireless Monitoring
|
microwave transmitter technical parameters |
|
frewuency |
1.0~1.7GHZ or 10.7~12.7GHZ |
|
frequency stability |
standard |
|
modulation |
FM |
|
phase noise@10KHZ |
-75dBc |
|
output level |
20~33dBm |
|
output impedance |
50ohm |
|
output interface |
L band / KU band |
|
Audio index |
|
audio output |
600ohm |
|
frequency response |
50HZ to 15KHZ |
|
subcarrier frequency |
6.5MHZ |
|
distrotion |
3% |
|
FM noise |
-50dB |
|
Video index |
|
video input |
75ohm |
|
differential gain |
5% |
|
differential phase |
555dB |
|
|
|
|
|
|
|
|
|
