Product Specifications
| Prod Model: |
KF12V-M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pitch: |
5.00mm |
| Rated Voltage: |
12V |
| Rated Current: |
16A |
| Environmental Protection: |
Resistance to Environmental |
| Shape: |
Rectangle |
| Application: |
Integrated IC |
| Contact Termination Form: |
Welding Connection |
| Connection Mode: |
In-Line Connector |
Product Description

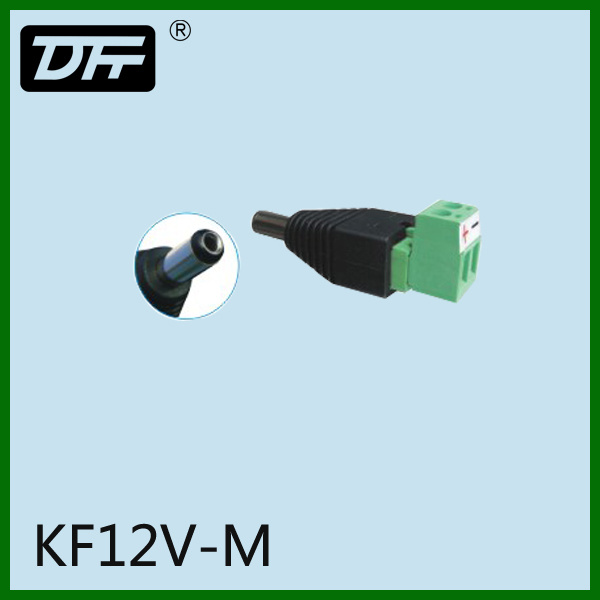

Adapter Pluggable Terminal Blocks connectors
Pitch: 5.0mm
Material:
Screws: M2.5 steel Zinc plated
Contact: Phosphor bronze
Housing: PA66, UL94V-0
Electrical:
Rated voltage: 12V
Rated current: 16A
Contact resistance: 20mΩ
Insulation resistance: 5000M Ω /1000V
Withstanding voltage: AC1500V/1Min
Wire Range: 28-12AWG 1.0mm²
Mechanical:
Temp Range: -40º C~+105º C
Max Soldering: +250º C, for 5Sec.
Torque: 0.5Nm(1.8lb. In)
Strip length: 7-8mm
