Yueqing Winston Electric Co., Ltd. >> Ah3p Miniature Low Power Digital Time Relay with CE

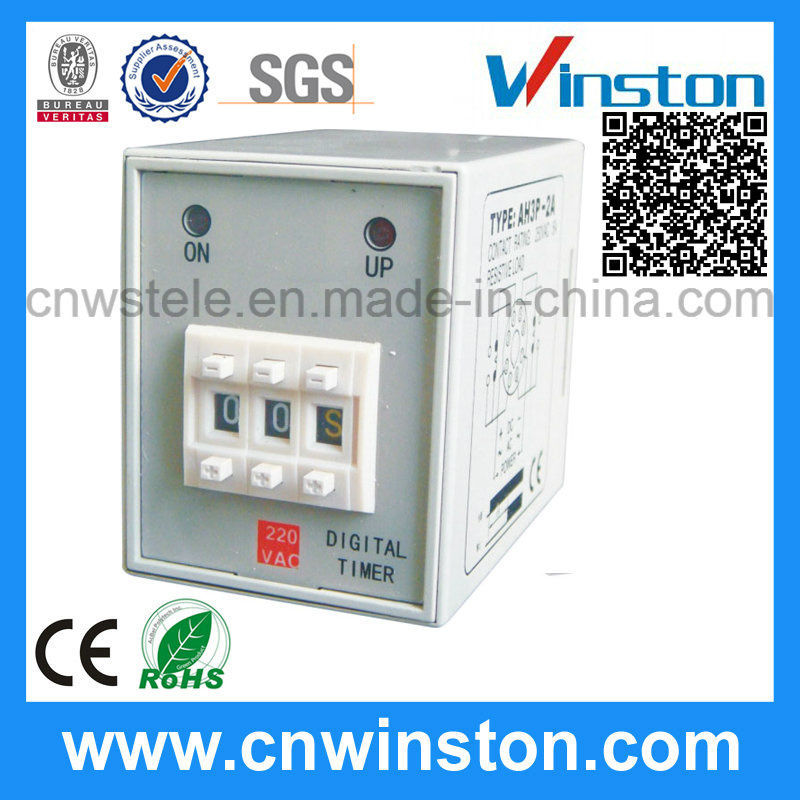

Ah3p Miniature Low Power Digital Time Relay with CE

Name: Ah3p Miniature Low Power Digital Time Relay with CE
Brand: China-Manufacturer-Directory.com
SKU: 771130075
Availability: InStock
Rating: 4.4 (108 reviews)

Supplier:	Yueqing Winston Electric Co., Ltd.
Price:	US $ 5-8/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	AH3P
Markets:	North America,South America,Eastern Europe,Africa,Oceania,Western Europe
Brand:	Winston
Rated. Voltage:	2va
Quality:	2 Year Warranty
Dimensions(mm):	504057.5
Weight:	160g
OEM/ODM:	Yes
Condition:	Original New
Ambient Huminity:	48~85%Rh
Reset Time:	0.1 Sec Max
Ambient Temperature:	-10oc~+55oc

Product Description

Product Description

1) DIMENSIONS: 50H X 40W X 57.5D

2) MOUNTING & SOCKET: PF083A

3) FULL TIMING RANGE: 0.1S - 990H

4) RATED VOLTAGE: DC: 12, 24
AC: 12, 24, 11, 220, 240, 380, 50/60Hz

Technique parameter

Classification		Timer
Type		AH3P
Dimensions(mm)		504057.5
Mouting & Socke		Surface(-N)	PF083A(E)	Flush(-Y)	US-08P3G-08
Full Timing Range		0.1-990h
Rated Voltage		DC(V):12.24 AC(V):12.24,110,220,240,380,50/60HZ
Indicator operaing		ON-UP operating
O/P Contact		MODEL	AH3P-1	AH3P-2	AH3P-3
		Time Limit 1C	5A		5A
		Time Limit 2C		5A
		Instantenous IC		5A
Life	Mechanical	5*10^6 times
	Electrical	10^5 times
Accuracy	REPEA TERROR	+-1%max
	SETTING ERROR	+-10%max
	VOLTAGE ERROR	+-1%max
	TEMP.ERROR	+-2%max
RESET TIME		0.1 sec max
CONSUMED POWER		2VA
AMBIENT TEMPERATURE		-10ºC~+55ºC
AMBIENT HUMINITY		48~85%RH
WEIGHT		160g

PS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.

Our Services

1. Prompt reply: Any inquiry or questions would be replied within 24 hours.

2. Quality Product: Manufacture company, each of the products is tested and calibrated.

3. Hospitality: Offer smiling service and your visiting is highly welcomed

4. Fast delivery: delivery time is within 3-7 days usually, other occasion depends on the order qty.

Trade Information

Trade Terms	FOB ,CIF ,CFR,EXW,DDP
Payment terms	T/T,L/C,Western union,Paypal,Escrow,MoneyGram
Payment conditions	30% deposit in advance,70% balance before shipping.
Delivery time	3-7working days after deposit,2-4 working days for inventory
Packing	Neutral carton,Wooden case for large size
Shipping	By sea,by air and by express delivery
Payment conditions	30% deposit in advance,70% balance before shipping.
Delivery time	3-7working days after deposit,2-4 working days for inventory
Packing	Neutral carton,Wooden case for large size
Shipping	By sea,by air and by express delivery

Yueqing Winston Electric Co., Ltd.Is not only an exporting company, but also a professional manufacturer in China.We have our own production base.The products we professionally deal with are switching power supplies, sensors, relays, voltage stabilizers, AC contactors, circuit breakers, distribution boxes, industrial plugs & sockets and others.Since we are a manufacturer & exporter, we are sure that we can best support our customers with high quality products and the most competitive prices.

Our company is located in Wenzhou - the Electric Capital of China.We specialize in developing, manufacturing and distributing low voltage & high voltage electrical products.

We are an ISO9001:2000 certified company.We have obtained many certificates, such as CCC, CE, CB, GS and RoHS.Stability, expertise and technological innovation are the core stones of our business strategy.

Aiming at reliable product quality and the highest customer satisfaction, we are consistently deepening enterprise inner reform and fully carry out a quality guarantee system.With special cultivation of employees, high investment on production facilities and R&D as well as a wide range of products, we advocate "technology innovation, business honesty and trust and quality first" as our basic principle, trying to develop into a world-class electrical manufacturer with constant efforts.
