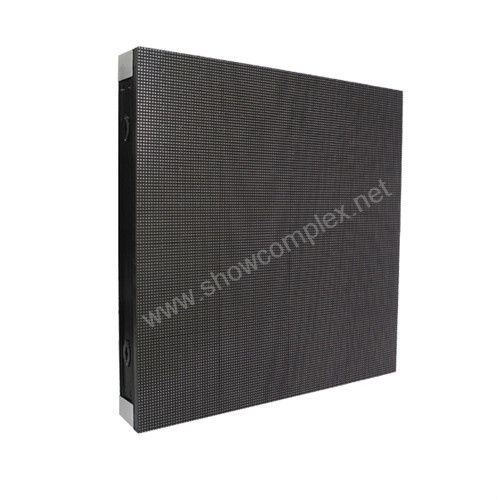

Aif P2.5 Indoor Fixed LED Display

Product Specifications

Prod Model:	P2.5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tube Chip Color:	Full Color
Display Function:	Video Display
Pixel Configuration:	1R,1G,1B
Display Type:	LED Video Display
Application:	Shopping Guide
Certification:	CCC
Pixel Pitch:	2.5mm
Pixel Density:	160000DOT/
Scanning Mode:	1/32 Scan
IP Rating:	IP31

Product Description

1.Clear picture without flicker and distortion
2.Low Consumption , Stable Performance ,Highly Durable
3.Within one year after consignment from factory.
4.Wide Viewing Angle, Seamless Splicing ,High-definition ,Mute Design ,High Contrast

Feature:
Mini series P2.5 LED Display full color rental led display features:
P5mm fullcolor rental led board with cabinet weight is only 7.5 kg, depth 73 mm, decreasing the transportation cost and the intensity of labor.
P5mm indoor rental led true color screen board with hoisting lock connected vertically. 50 cabinets in a line, easy to make up a super big screen.
Quick locks connecting cabinets, only less than 10 seconds per cabinet.
High polymer flexible mask, no dazzle, better contrast ratio; the masks can be pulled off directly from the cabinet, which makes the maintenance much more convenient.
With intelligent control LCD monitor, easy to know the correct accumulated working time.
The back cover can be opened without any tools; Modules can be take off without dismantle the power supply, much more convenient for the examination and maintenance.
With foldable handle and wave-shaped handle, installation and dismantle faster and much more comfortable.
Super-light aluminium alloy connectors are durable and artistic.
Parameters:

Model	SC-AIF 2.5 Indoor Fixed LED Display
Pixel pitch	2.5mm
LED Encapsulation	2121
Pitch Composing	SMD 3 In 1
Module Size	240mm*240mm
Module Resolution	96dot*96dot
Cabinet Size	480mm * 480mm * 65mm
Cabinet Resolution	192dot*192dot
Density	160000dot/
Brightness	≥1200nits
Brightness Adjustment	Auto 256 level
Viewing Distance	2.5m-10m
View Angle(H)	150°
View Angle(V)	140°
Max Consumption	300W/
Brightness Adjustment	Manual/Auto/Programmable
Driving Method	1/32 Scan Constant Driving
MTBF	50000hours
Lifespan	100000hours
Frame Frequency	60Hz
Working Temperature	-20ºC+50ºC
Humidity Range	10% ~ 90%
Voltage	110 ~ 240V
IP Ranking	IP31
Blind Spotrate	<0.0003
Signal Type	AV,S-Video,VGA,DVI,HDMI,SDI,DP
Tranmission Distance	UTP:100 meters; single-mode fiber: 10 km
