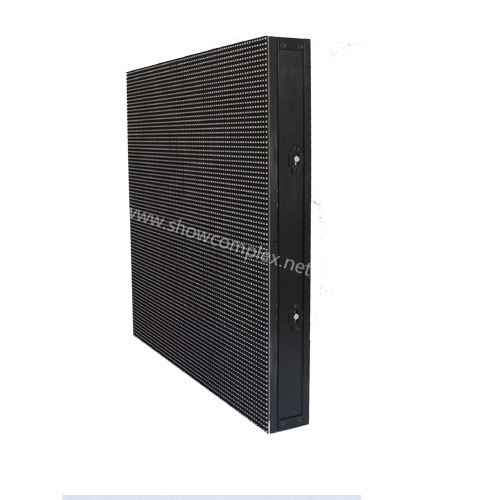

Aif7.8 Indoor Fixed LED Display

Product Specifications

Prod Model:	P7.8
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tube Chip Color:	Full Color
Display Function:	Video Display
Pixel Configuration:	1R,1G,1B
Scanning Mode:	1/8 Scan
Display Type:	LED Video Display
Application:	Shopping Guide
Certification:	CCC
Pixel Pitch:	7.8mm
Pixel Density:	16384DOT/
IP Rating:	IP31

Product Description

1. Extremely close view distances and wide view angles.
2. Silent operation, little heat generated (no fans).
3. Standard panel design makes stocking, transportation, construction, spare parts and maintenance        easy and simple.
4. Lightweight and seamless, precision extruded aluminum section structure.
5. Real white, brilliant colors, breathtaking grayscale.
6. High color saturation, high contrast level. Better display performance.

Features:

High Precision die-casting aluminum panel achieves high flatness and seamless matching of the whole display
Color uniformity, high contrast, clear picture
Ultra thin body, easy to transport and loading and unloading
High stability, high reliability, long service life
Support for both front and back maintenance, easy installation
Parameters:

Model	SC-AIF 7.8 Indoor Fixed LED Display
Pixel pitch	7.8mm
LED Encapsulation	3528
Pitch Composing	SMD 3 In 1
Module Size	250mm*250mm
Module Resolution	32dot*32dot
Cabinet Size	500mm * 500mm * 65mm
Cabinet Resolution	64dot*64dot
Density	16384dot/
Brightness	≥1200nits
Brightness Adjustment	Auto 256 level
Viewing Distance	7m-22m
View Angle(H)	150°
View Angle(V)	140°
Max Consumption	140W/
Brightness Adjustment	Manual/Auto/Programmable
Driving Method	1/8 Scan Constant Driving
MTBF	50000hours
Lifespan	100000hours
Frame Frequency	60Hz
Working Temperature	-20ºC+50ºC
Humidity Range	10% ~ 90%
Voltage	110 ~ 240V
IP Ranking	IP31
Blind Spotrate	<0.0003
Signal Type	AV,S-Video,VGA,DVI,HDMI,SDI,DP
Tranmission Distance	UTP:100 meters; single-mode fiber: 10 km
