Product Specifications
| Prod Model: |
DW45 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Circuit Breaker |
| Function: |
Over Load and Short Circuit Protection |
| Arc-extinguishing Medium: |
Air |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Installation: |
Fixed |
| Speed: |
High-Speed Circuit Breaker |
| Structure: |
Frame-Type |
Product Description

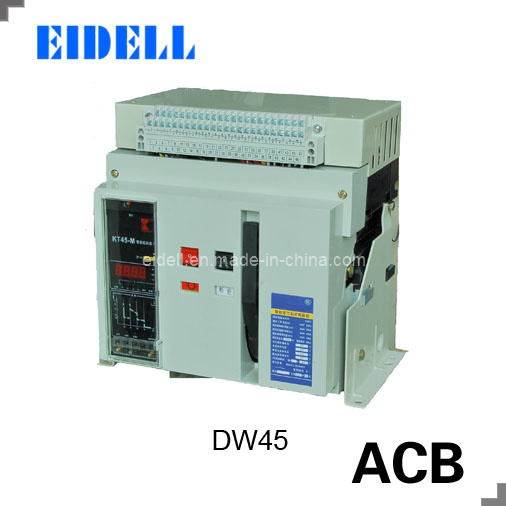

DW45
Application
DW45 series air circuit breaker(hereinafter referred to as breaker)is suitable for the circuit of AC 50Hz with rated voltage 400
V, 690V and rated current up to 6300A. It is mainly used to distribute electric energy and protect circuits and power-supply equipment from over-load, under-voltage, short-circuit and single-phase earthing. With intelligentized and selective protection functions, the breaker can improve the reliability of power supply, and avoid unnecessary power failure. The breaker is applicable for power stations, factories, mines(for 690V) and modern high-buildings, especially for the distribution system of intelligentized building. This breaker conforms to IEC60947-2 and GB14048.2
|
Main teachnical parameter: |
|
Rated ultimate short circuit breaking capacity(KA) |
lcu=42KA 400V 20KA 690V
lcu=lcw=30KA 400V 15KA 690V |
|
Rated current in (A) |
200 400 630 800 1000 |
|
Number of poles |
3,4 |
|
Rated voltage ue(V) |
400V,690V |
|
Rated insulation voltage Ui (A) |
1000V |
|
Rated current of N-pole IN(A) |
50%In,100%IN |
|
Fixed disconnection time |
23-32Ms |
|
Intelligent controller |
sandard type(M) |
|
|
Communication type(H) |
|
|
Operation performance |
Electric life |
500 |
|
mechanical life |
Non-maintenance 2500 |
|
Maintenance 10000 |
|
Connection pattern |
Horizontal,vertical |
|
Main teachnical parameter: |
|
Rated ultimate short circuit breaking capacity(KA) |
lcu=80KA 400V 50KA 690V
lcs=lcw=50KA 690V 40KA 690V |
|
Rated current in (A) |
400 630 800 1000 1250 1600 2000 |
|
Number of poles |
3,4 |
|
Rated voltage ue(V) |
400V,690V |
|
Rated insulation voltage Ui (A) |
1000V |
|
Rated current of N-pole IN(A) |
50%In,100%IN |
|
Fixed disconnection time |
23-32Ms |
|
Intelligent controller |
sandard type(M) |
|
|
Communication type(H) |
|
|
Operation performance |
Electric life |
500 |
|
mechanical life |
Non-maintenance 2500 |
|
Maintenance 10000 |
|
Connection pattern |
Horizontal,vertical |
|
Rated ultimate short circuit breaking capacity(KA) |
lcu=100KA 400V 80KA 690V
lcs=lcw=80KA 400V 40KA 690V |
|
Rated current in (A) |
2000 2500 3200 4000 |
|
Number of poles |
3, 4 3 |
|
Rated voltage ue(V) |
400V,690V |
|
Rated insulation voltage Ui (A) |
1000V |
|
Rated current of N-pole IN(A) |
50%In,100%IN |
|
Fixed disconnection time |
23-32Ms |
|
Intelligent controller |
sandard type(M) |
|
|
Communication type(H) |
|
|
Operation performance |
Electric life |
500 |
|
mechanical life |
Non-maintenance 2500 |
|
Maintenance 10000 |
|
Connection pattern |
Horizontal,vertical |
|
Rated ultimate short circuit breaking capacity(KA) |
lcu=120KA 400V 80KA 690V
lcs=lcw=100KA 400V 60KA 690V |
|
Rated current in (A) |
4000 5000 6300 |
|
Number of poles |
3, 4 3 |
|
Rated voltage ue(V) |
400V,690V |
|
Rated insulation voltage Ui (A) |
1000V |
|
Rated current of N-pole IN(A) |
50%In,100%IN |
|
Fixed disconnection time |
23-32Ms |
|
Intelligent controller |
sandard type(M) |
|
|
Communication type(H) |
|
|
Operation performance |
Electric life |
500 |
|
mechanical life |
Non-maintenance 2500 |
|
Maintenance 10000 |
|
Connection pattern |
Horizontal,vertical |
