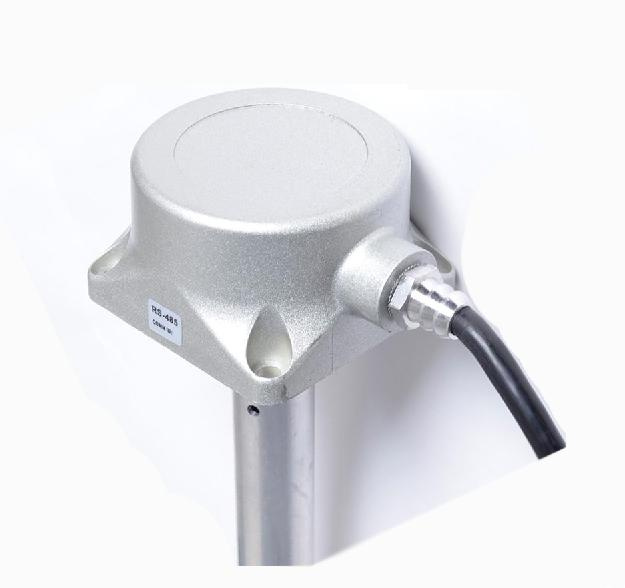

Analog Fuel Level Sensor for Fuel Monitoring

Name: Analog Fuel Level Sensor for Fuel Monitoring
Brand: china-manufacturer-directory.com
SKU: 702238962
Availability: InStock
Rating: 4.3 (39 reviews)

Supplier:	Shenzhen Joint Technology Co., Ltd.
Price:	US $ 79-99/Set
Min Order:	3/Set
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	JT606X
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Function:	Fuel Monitoring
Applications:	All Vehicle Tanks
Resolution:	<1mm
Length:	100-1500mm
Unique Feature:	Cuttable on Site
Voltage Input:	4-70V
Outputs:	RS232/RS485/Voltage/Current
Waterproof Grade:	IP67
Patented Technology:	Easy Calibration, Easy Installation

Product Description

Adjustable Fuel Sensor with Analog Output

Model: JT606X

JT606X is developed based on JT606. It keeps the good features of JT606 like cuttable, flange design, stable performance, high resolution , anti explosion, but also have make the cover sealed to achieve 100% waterproof. This can prevent the humidity affection in the long time usage and make the fuel sensor even more durable and robust.

Features:

Wide Power Voltage Input
DC: 4-70V, while DC: 4-36V is recommended to ensure the long term stability.
Cuttable due to the fuel tank size
It can be cut due to the fuel tank size & installation place in spot, the cut part' length can not over one third of the fuel senor length (before cutting), and it need to be calibrated after cutting.
Easy installation
By adopting the unique flange, it just need to drill one hole in the fuel tank to finish the installation, the details is with reference to the installation instruction.

NO.	Item	Performance parameters
1	Collection principle	Capacitance
2	Size	100mm to 1500mm(minimum can be detected 100mm,maximum can be detected 1500mm) There have 3mm blind area of bottom fuel sensor can't be detected.
3	Electrical parameters	DC: 4-70V, better DC: 4-36V (Over voltage protection, reverse Voltage protection)
4	Power Consumption	0.200W/5V,0.286W/12V,0.571W/24V
5	Signal output	RS232,RS485, 0-5V
6	Communication baud	2400,4800,9600,57600,115200
7	Resistance ouput	10~500Ω
8	Detection of liquid type	Diesel, biodiesel, kerosene, etc.
9	Resolution	Less than 1mm
10	Accuracy	±0.5%
11	Use of the environment	Work temperature:-40ºC~+75ºC
11	Use of the environment	Save temperature:-40ºC~+85ºC
12	Humidity	0~99%
13	Detector material	Aluminium alloy
14	Protection class	IP67

Working Current

Test Voltage	Current	Power consumption
24V	23.8mA	0. 571W
12V	23.8mA	0. 286W
9V	23.7mA	0. 213W
5V	40mA	0.200W
