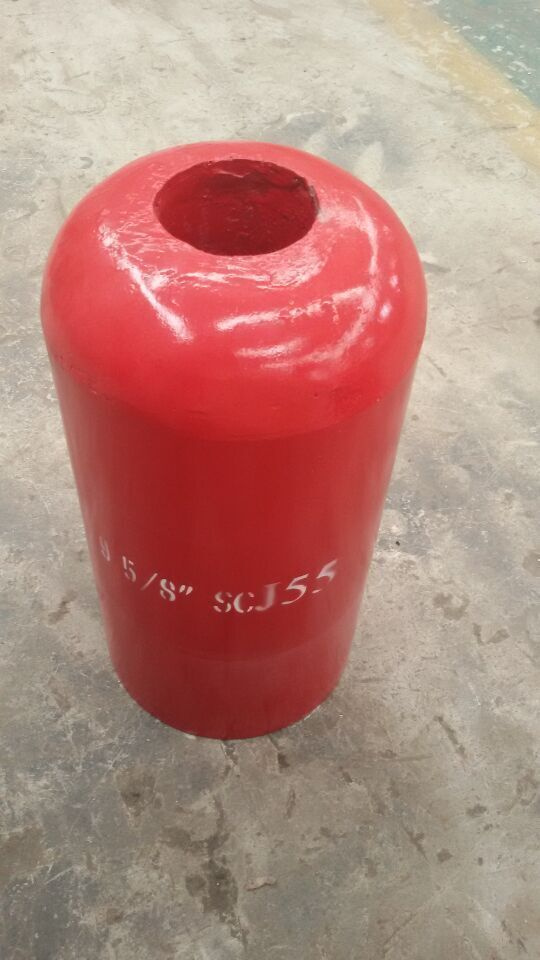

API Standard Cement Type Guide Shoe

Product Specifications

Prod Model:	13 3/8"
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Condition:	New
Thread Type:	Stc/Btc/Ltc
Color:	Red, Blue or as Requested
Grade1:	N80
Grade2:	L80
Grade3:	K55
Type:	Petroleum Drilling Tool & Accessory
Usage:	Offshore Oil and Gas Field Exploitation Machinery
Certification:	API

Product Description

Description:
Float collar and float shoe are improved product developed by ourselves based on the modern technique inland and overseas. The inner component of the equipment is made up of drillable aluminium alloy, has the advantage of special configuration high tensity, light, strong pressure bearing, and good air proof capability, can be applied widely.

Company:
Puyang Zhongshi Group Co., Ltd. Is a restructuring enterprise of China Petrochemical Group. The Group is an integrated enterprise and we mainly manufacture Petroleum machinery products. The main products are Oil Extraction Equipment, Drilling Equipment, Electrical Equipment, Pressure Vessel and Steel Structural Processing, 10 main categories and more than 100 items. Besides sold to the major domestic oil fields, our products also have been exported to more than 10 countries, such as America, Middle East, Central Asia, Africa and so on.

Specification	In-Dia	Out-Dia	Height	Forward pressure	Backward pressure	Connteced screw thread	Matericl	Standard
FG-FZQ140	154	122	400	20MPa	25MPa	5-1/2"LCSG	40Cr
FG-FZQ178	194	159	400	20MPa	25MPa	7"LCSG	40Cr
FG-FZQ245	270	220	450	20MPa	25MPa	9-5/8"LCSG	40Cr
FG-FZQ340	365	313	450	10MPa	10MPa	13-3/8"LCSG	40Cr
FX-FZQ140	154	122	500	-	25MPa	5-1/2"LCSG	40Cr
FX-FZQ178	194	159	500	-	25MPa	7"LCSG	40Cr
FX-FZQ245	270	220	550	-	25MPa	9-5/8"LCSG	40Cr
FX-FZQ340	365	313	550	-	10MPa	13-3/8"LCSG	40Cr
