Product Specifications
| Prod Model: |
VCT-1325ATC8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Size: |
1300*2500 *200mm |
| Spindle Power: |
(12HP)9kw Hsd Atc Spindle |
| Driver: |
Japan Yaskawa Servo Motor Driver |
| Transmission: |
Xy Axis Gear Rack, Z Axis High Accuracy Ball Screw |
| Xyz Guiding Rails: |
Hiwin Square Rails |
| Data Transmission: |
Taiwan Syntec Controller |
| Maxi Working Speed: |
15000mm/M |
| Machining Accuracy: |
<0.03/300mm |
| Spindle Speed: |
24000rpm |
| Net Weight: |
Around 1100kg |
| Controlling Mode: |
CNC |
| Feed Mode: |
Mechanical |
| Spindle Number: |
Single-Spindle |
| Spindle Layout: |
Vertical |
| Certification: |
SGS |
Product Description

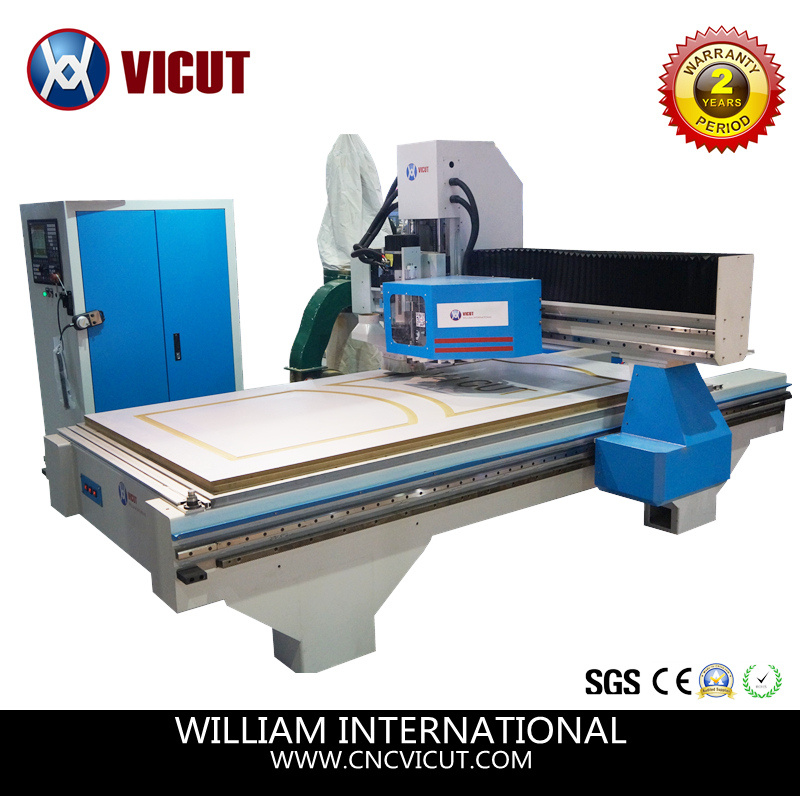

ATC CNC Router (Auto Tool Changer) with top-rank configuration
Features:
- Linear auto tool changing system, 8/10pcs tools station, changing tools within 2 seconds.
- Heavy duty machine body, with sand inside of the square tube, makes the whole machine weight more than 2.5tons, guarantee the high working accuracy.
- All spare parts are the best brand in the world. Such as, Italy HSD Spindle and tool holder, Taiwan PMI square rails, Japan Yaskawa servo motor, Taiwan Syntec controller, etc.
- Germany helical gear rack and reducer on Y axis to reduce the vibration, no noise during working.
- Private customized: Specifications, color, design. OEM is available.
Applications:
This series machinery is mainly used in processing wood and other materials, such as making doors, windows, kitchen cabinet, acrylic stand, decoration board, signs, guitar and musical instruments. Its also can be used to making mini acrylic letters.
Machine Details Show:
1. Base Frame: The base frame is made of heavy-duty tubular steel that is welded, precisely machined by gantry milling machine and stress relieved by vibration device so that the foundation remains true and steady over the operational life of the machine.
2. ATC Spindle with dust-skirt head: HSD air-cooled ATC spindle is a leader in the machining of wood, aluminum and plastics. The 9KW/12HP spindle is characterized by its' extremely high reliability and fully programmable speeds from 6000 to 24000 RPM, it comes complete with pneumatically retractable vacuum hood, standard ER collets and ISO 30 tool holders. Each mechanical, pneumatic and electronic component undergoes a double testing phase that guarantees optimum quality standards.
3. Tool station: 8-position tool station in the rear of the machine. Easy loading and unloading of material from either side of the machine.
4. Controller: Taiwan Syntec industry controller special for ATC CNC, with MPG for high accuracy positioning. It is capable of USB flash drives and is very easy for users to do wiring and can save a lot of time. It supports 4 servo axes + 1 spindle, simultaneously interpolated axes can be 4 axes, and it has power failure protection function.
5. Servo Motor: High-power AC Panasonic Servo motor & direct drive planetary Gearbox, the structure maximizes the tensional moment when motor power is rated, it is for high load and smoother machining, it offers long-term maintenance-free solution.
6. Gear Rack and linear square rails: XY use high accuracy gear rack, Z axis use ball screw transmission. XYZ use 25MM Hiwin linear square guide, it is an ultra-heavy type that achieves a deep grooved raceway with its diameter more approximate to the ball diameter and has high rigidity, vibration and shock resistance, and damping characteristics, which are required for machine tools.
7. Vacuum table and pump: The vacuum table multi-zoned which allows the operator to easily switch from full sheet processing to smaller part processing. Zones can be turned off easily with the switches on the front of the machine. Gaskets can also be routed to accommodate various material sizes and styles. Air cooling vacuum pump offers enough power to hold the material on the vacuum table.
8. Central Oil Lubricator: Easier to lubricate the Guide units regularly, just pull it gently and oil will go when it is needed.
9. Nebulizer: it sends oil mist to machining surface, it is important for tool cooling and lubricating.
10. Tool Sensor: Automatic tool length calibration and registration, it allows for easy and accurate "Z" zero position for single and multiple tool changes through the program, saves time & error-free.
11. Electric Cabinet: All the electrical components are housed and wired in a mobile, doubled-doored electrical enclosure. This allows for easy access and service when needed. Every wire is tagged so that when service is required, the customer can easily navigate the cabinet.
| Model | VCT-1325ATCW8 | VCT-1530ATCW8 | VCT-2030ATCW10 |
| Working Size | 1300*2500*150mm | 1500*3000*150mm | 2000*3000*150mm |
| Spindle Power | 9KW Italy HSD ATC Spindle |
| Driver | Panasonic Servo Motor Driver |
| Tool Stock | 8 Tools /10 Tools |
| Structure | Cast Square Tube |
| Transmission | XY Axis gear rack, Z Axis high accuracy ball screw |
| XYZ Guiding Rails | PMI Square Rails |
| Machining Accuracy | <0.03/300mm |
| Maxi Working Speed | 15000mm/m |
| Spindle Speed | 24000rpm |
| Data Transmission | Syntec Controller from Taiwan or NC Studio Controller |
| Format of instructions | G code or HPGL |
| Voltage | AC 380V/60Hz |
| Net Weight | around 1100KG | around 1300kg | around 1500kg |
| Packing size | 2230x3860x1600MM | 4200x1950x1600MM | 4200x2230x1600MM |
