Product Specifications
| Prod Model: |
DCGF series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Filling Type: |
Accurate Isobaric Pressure Filling |
| Water Pumps For Washing Bottles: |
Hangzhou Nanfang |
| Pneumatic Components: |
Taiwan Airtac |
| Bottle Washing: |
Rotary Rinsing With Sterilized Water |
| Colorful Touch Screen: |
Taiwan Touch-Win |
| Applicable Pet Bottle Size: |
Height 150-310mm/ Diameter50-90mm |
| PLC Control: |
Mtisubish/ Omron |
| Main Material: |
Food Grade Sus304 Stainless Steel |
| Cap Sealing Method: |
Magnetic Torque Screwing |
| Frequency Converter: |
Mitsubish |
| Composition: |
Filling Machine |
| Type: |
Carbonated Water Filling |
| Product Type: |
Carbonated Beverage |
| Manufacturing Process: |
Filling |
Product Description

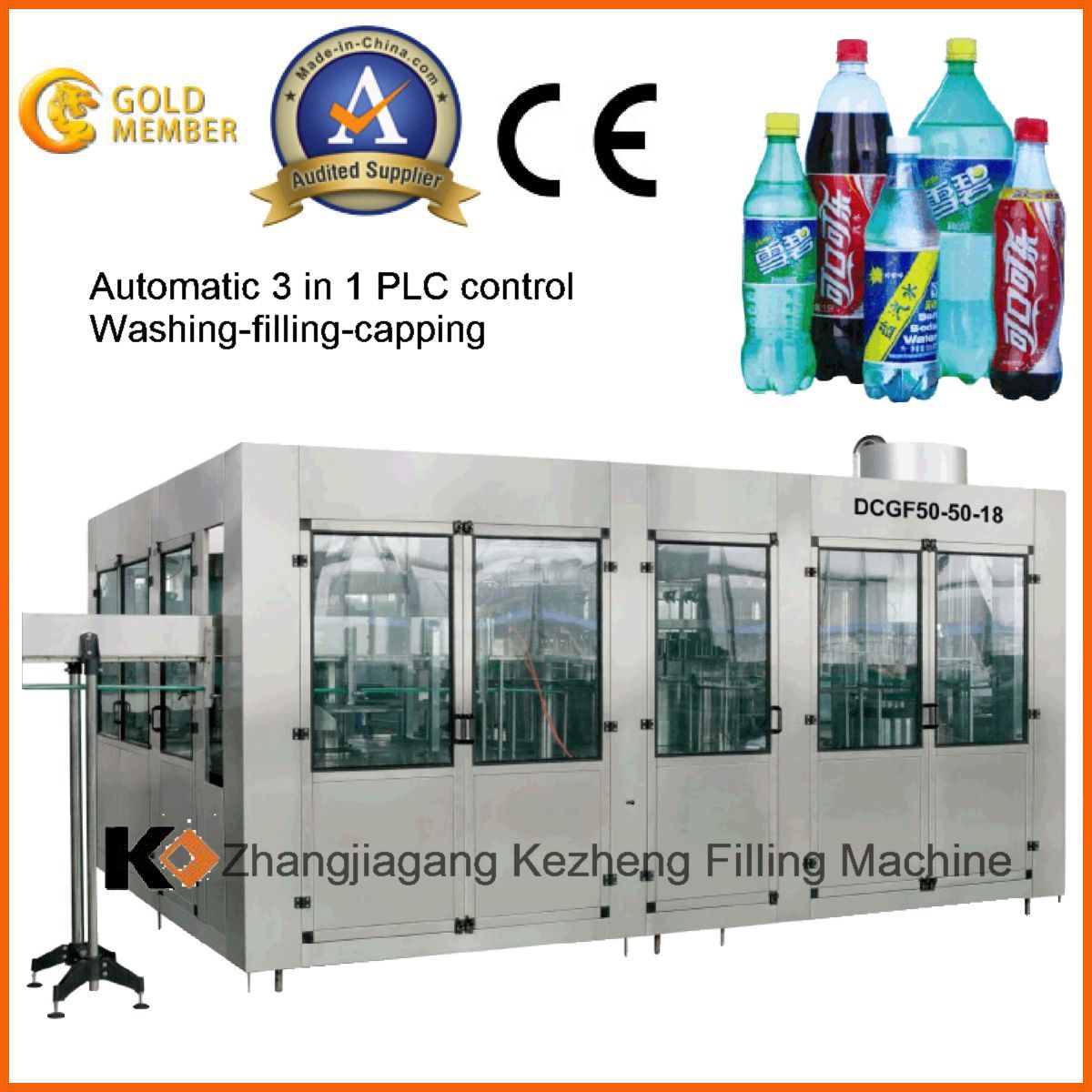

The carbonated beverage filling Mono-bloc is used to bottle carbonated beverage such as Coca cola, Pepsi, Sprite, soda water and so on.
This machine is integrated with washing, filling and capping in one machine. It takes bottle handling technology, which makes changing different size bottle more easily.
It can do the bottles from size 200ml to 2000ml. And little spares are need when changing bottles.
We suggest users to take same specification bottles, especially the same bottle neck. Our mono-bloc uses high quality stainless steel 304, which makes sure the quality of the products.
The washing we take reversing bottle methods. It has so many washing heads which will spray the inside of the bottle after the bottle is reversed. After washing there will approximate 2 seconds dropping water.
The filling technology is named "Counter pressure filling", it means when bottle enter into the filler, the filling tank will firstly inputting enough pressure to the bottle. Just after the pressure in tank is same as the bottle, filling begins.
Capping we use magnetic capper. And capping power can be adjusted. We equip the machine with "No-bottle, No-Cap" system. If there is no bottle, the caps feeding will be stopped. The capper feeder is stand beside the mono-bloc, which is parallel to the machine.
Above all our mono-bloc is high quality and is just the machine you are looking for!
Model:
|
DCGF 16-12-6
|
DCGF18-18-6
|
DCGF24-24-8
|
DCGF32-32-12
|
DCGF40-40-12
|
capacity (500ml based)
|
2500BPH
|
4500BPH
|
6000BPH
|
8000BPH
|
12000BPH
|
Suitable bottle :
|
Round bottle or square bottle
|
PET bottle: (mm)
|
(Bottle Diameter):φ50-.φ 110mm (Height):150 -340mm
|
Suitable cap specification
|
PE screw cap
|
filling precision:
|
≤± 5mm
|
filling pressure:(Mpa)
|
≤0.4Mpa
|
Machine power
|
4.4
|
5.2
|
6.2
|
6.8
|
8
|
Machine size:(mm)
|
2250*1650*2250
|
2600*1965*2250
|
2980*2200*2250
|
3880*2200*2250
|
4000*2650*2500
|
weight: (kg)
|
2800
|
3500
|
4500
|
5500
|
6500
|
