Model Number: A4
Operation Temperature: 5~40° C
Working Condition:
Dimensions:
Gross Weight:

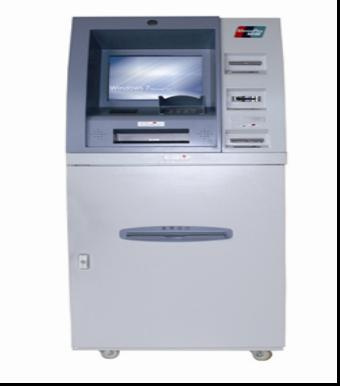

A4 is an automatic invoice and bank pass printing touchscreen kiosk for payment and invoice printer with pass-book DOT-matrix printer. It embodies the typical bulky bank self service terminal for daily operation.
With the sturdy and elegant appearance and eye-ball attractive body size, A4 is qualified for the most popular banking device for modern banks. It is also possible to place this kiosk in other unattended indoor area which can extend the bank service to people outside banks.
A4 has all the sounds and bells for the operators: Large size, multifunction, easy to use components and sturdy enclosure. A4 could be a good investment for all kinds of business to maximum their business possibility by deploy A4 in the most traffic area.
All kinds of components are optional for A4 and all colors are possible to decorate to suit your business need. OEM and ODM are also welcome.
Applications:
Payment
Bank pass printing
List printing
Invoice printing
Information
Service
Operation validation
Form fulfilling
Automatic insurance vending
|
|
|
FEATURES |
|
Study structure with commercial host computer, touchscreen monitor,bank card reader, EPP, thermal printer, Mifare card reader, invoice printer, UPS and bank pass printer Waterproof infrared touchscreen monitor |
|
Hardware Configurations&Specifications |
|
|
Host: |
CPU:Intel Core i3 i2100
Motherboard: Intel B75 commercial motherboard
RAM: 4G DDRIII
HDD: 60G SSD |
|
|
Display: |
Size: 17" TFT LCD(LED backlighted)
Resolution: 1024 x 768
Brightness: 500 cd/m
Viewing Angle: 178/178 |
|
|
Touch Screen: |
Optical infrared or SAW touch screen
Calibration: Once-Only, Four Points With no Drift
Touch material: Finger, Gloved Hand or Any Other Pointer
Activation force: No Pressure Required for infrared touch
Response Time: 8ms |
|
|
Mifare one contactless cardreader |
13.56 MHz
Support all layers of ISO14443A
Encyption:CRYPTO1
Max Range:100 mm
SO32 Capsulation
Interface:RS-232 |
|
|
3DES EPP keypad: |
Keys: 16 keys
Cryptography: 3DES
Keys: laser print or chemical etch keys filled with color ink
Super durability: over 2,000,000 times with 0.45mm knock gap
Press strength:3N with temperature range -40~65C |
|
|
Bank card reader: |
Motorized magnetic&IC card readable type,Can confiscate card
EMV Ver.4.0 compliant for IC and magnetic card
ISO/IEC 7811 JIS X6301/6302 tr1&2&3 read
ISO/IEC 7816JIS X6303 R/W; Protocol:T=0,1; EMV handling:EMV4.0
Full insert shutter
Interface: USB, RS232C; Power, 12V |
|
|
Receipt Thermal Printer: |
Themal Printer, Paper width:80mm,
Paper roll: 180mm, Thickness:60 to 120g/m2
Print Speed: 220mm/s,resolution: 203 dpi (8 dots/mm)
Automatic cutter only;out alarm/to be run out alarm,Jam
Data buffer: 16 KB,Flash memory: 384 KB,Graphics memory: 2 logos
OMR,Black mark sensor,remote accessible Full Status Monitor Driver
Interface: RS232 / USB / Ethernet |
|
|
Passbook Printer: |
Printer head lifespan: more than 400,000,000 actuations
All language character set optional
Temperature:5-35C, RH 15%-85% NC
Cartrige dot duration: 3,000,000 times actuations
Speed: >= 460CPS
Reliability: MTBF>=10000, MTTR<=30min
Compatibility: Support IBM and OKI simulation |
|
|
Multilayer Invoice Printer: |
24 pin dot matrix Printer upto 7 layers
Paper width:101.6-254mm, Print Speed: high speed
Paper: fan-fold, Thickness: 0.065-0.53mm
Characterset: Italic, PC437,PC850,PC860,PC863,PC865,PC858
Commandset:ESC/P-K simulation, IBM2390+simulation, OK15530SCsimulation
Power rating: 220V AC
Interface: IEEE-1284/USB(optional)
|
|
|
UPS: |
Voltage range:170V~255V
Power Rate:0.5KVA/260W
Capacity:12V/32W×1
Transfergap:6ms;Overload power:450W
Self-protection;overload protection;Error led alert; RJ45/RJ11
Interface USB/RS-232 |
|
|
Camera: |
CMOS
300,000 pixel with wide angel lens;Dynamic resolution:640×480
Support Insert Value upto 1.3m pixel;
With adjustable rubber base and quick snap button
Builtin microphone; smart face detection
Interface: USB 2.0 |
|
|
Audio: |
Bi-channel amplified output;
Multimedia stereo speaker |
|
|
Enclosure: |
1.5mm all steel anti-graffiti enclosure |
|
|
Add-ons |
Custom LOGO plate,custom painting, low noise ventilation fans,mechanic locks and keys,power cable, LAN cable, antenna(WIFI&3G/GPRS),fuse,expansion bolt
|
|
|
|
Software Specifications |
|
|
Operating System: |
Windows XP, 7, Mac O/S
|
|
|
Applications: |
Payment
Bank pass printing
List printing
Invoice printing
Information
Service
Operation validation
Form fulfilling
Automatic insurance vending
|
|
|
Accessories |
|
|
Included: |
AC Power Cord
LAN cable
User Manual
Drivers CD |
|
|
Optional: |
External Stereo Speakers
External PC
2nd display |
|
|
Physical Characteristics |
|
|
Weight: |
|
|
|
Size: |
|
|
|
Color: |
Beige, Grey, Black or other color |
|
|
Environmental: |
5-40 Degrees (c)
20-80% Humidity
Power Consumption 600 Watts |
|
