Product Specifications
| Prod Model: |
DCGF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Bottle Exceeding Type: |
Belt Conveyor |
| Suitable Cap Size: |
Plastic Screw Lid |
| Filling Pressure: |
Less/Equal 0.4mpa |
| Bottle Entering Type: |
Air Conveyor |
| Power: |
3.1-9kw |
| Filling Precision: |
Less/Equal Plus-Minus 5mm(Liquid Level Positioned) |
| Main Material: |
Food Grade Sus 304 |
| Pet Bottle Height: |
150-310mm |
| Filling Capacity Range: |
5000-11000bottles/Hour |
| Bottle Diameter: |
50-90mm |
| Ingredient: |
Beverage |
| Material: |
Aquatic Product |
| Manufacturing Process: |
Filling |
| Product Type: |
Food |
| Type: |
Gas Water Filling |
Product Description

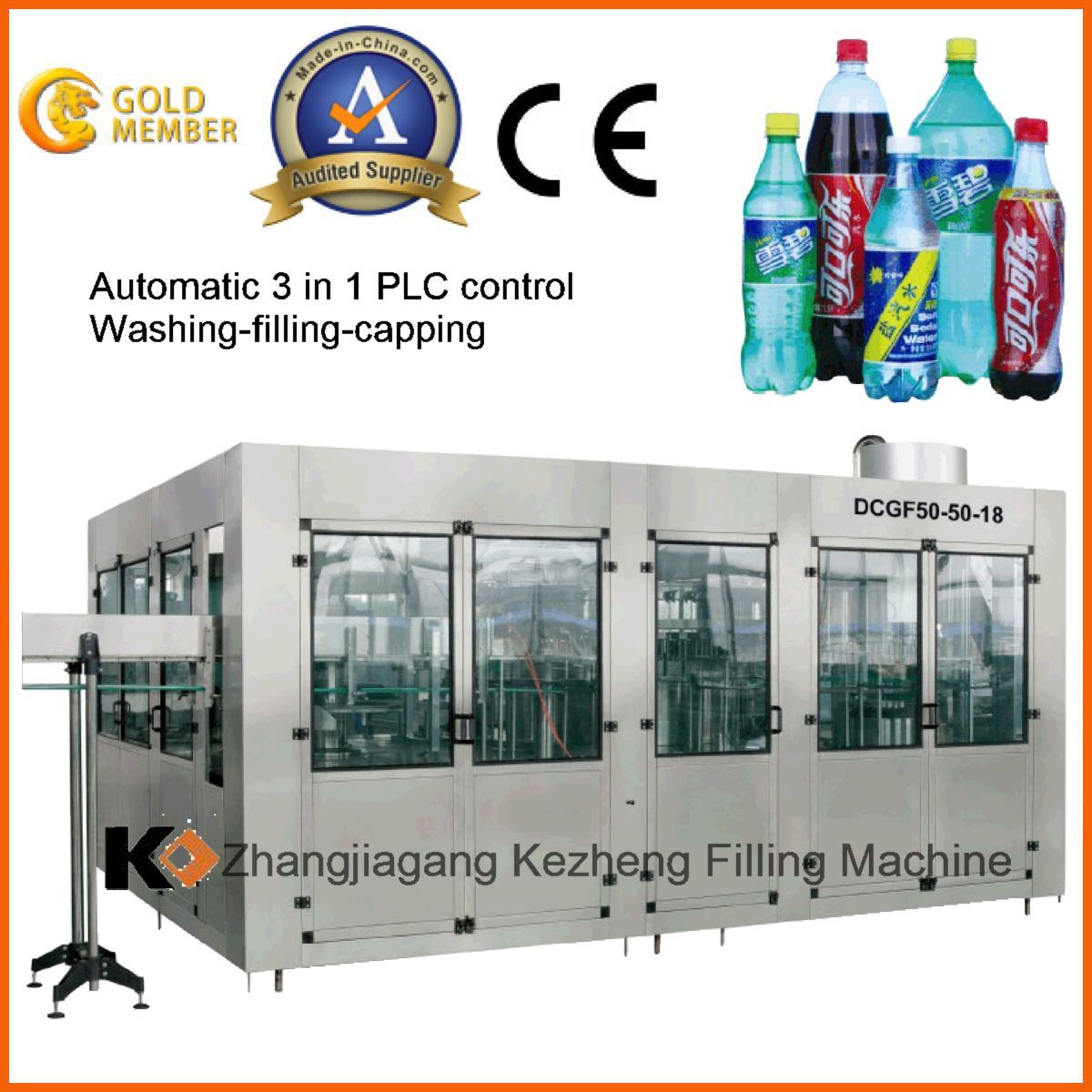

DCGF series Automatic 3 in 1 washing-filling-capping unit for Go2 Soft Drink Filling CE
250ml-2L
Automatic 3 in 1 washing-filling-capping
PET bottle filling
Stepless speed adjusting
CE
DCGF 3 in 1 filling machine is used for carbonated beverage filling. It integrated automatic washing, filling andcapping these three function in one unit of machine. Its bottleneck blocking technology suitable for various types ofPET bottles, only changing conveying chain height during bottle changing work. It is very convenient to operate. Latest micro-gravity filling method keeps carbonated drink filling faster and more stable; Meanwhile; To comparewith same kind of machine, this 3 in 1 balanced pressure unit machine owns higher productivity, lower failure rate. So it also has very high cost performance.
Features
Bottle neck cramp device
1. Bottle was suspended by cramp. Fit for various volume and types of PET bottle filling.
2. Reduce the number of changeable parts dramatically, makes its operation more conveniently and quickly.
Advanced auto filling technology3. Learn the technology from Germany and ltaly. Fast filling speed accurate liquid level control.
4. When there is no bottle or bottles were damaged, filling machine is stopped automatically.
Magnetic torque capping system5. Power of screw capping can be adjusted steplessly.
6. Magnetic torque capping device protect caps and its anti-thief seal ring.
7. Equipped with horizon swirl air power caps sorting device to avoid damage of caps.
8. With Cap shortage alarming.
Configurations
1. PLC (programmable logic controller) - Mitsubish/ Omron, Japan
2. Frequency converter- Mitsubhsi, Japan
3. Colorful touch screen - Taiwan TouchWin
4. Cyliner - Taiwan Airtac
5. Water pump- Hangzhou Nanfang
6. Optoelectric component- Autonics, South Korea
7. Stainless steel 304- Yuerong, China
|
Model |
DCGF18-18-6 |
DCGF24-24-8 |
DCGF32-32-12 |
DCGF40-40-15 |
DCGF50-50-18 |
|
Productivity(500ml eg.) |
5000-6000 |
6000-7000 |
8000-9000 |
10000 |
11000 |
|
Filling precision |
≤± less or equal in5mm(liquid level positioned) |
same |
same |
same |
same |
|
Filling pressure(Mpa) |
≤0.4 |
≤0.4 |
≤0.4 |
≤0.4 |
≤0.4 |
|
PET bottle size |
Diameters 50-100mm ; Height: 150-310mm |
same |
same |
same |
same |
|
Suitable cap type |
Plastic anti-thief screw cap |
|
|
|
|
|
Power(KW) |
3.1 |
3.1 |
5.6 |
7.5 |
9 |
|
Weight(KG) |
3500 |
4500 |
5500 |
9000 |
12000 |
|
Overall dimension(mm) |
2400×1900×2300 |
2800×2100×2300 |
4200×2300×2300 |
5000×2800×2400 |
5900×3100×2400 |
