Product Specifications
| Prod Model: |
MS8340B |
| Markets: |
North America,South America,Eastern Europe,Western Europe |
| Grade: |
Professional |
| LCD Display: |
4000 Counts |
| Diode: |
2.7V |
| Display Mode: |
Digital |
| Power Source: |
AC and DC |
| Theory: |
Electronic Meter |
| Installation: |
Portable |
Product Description

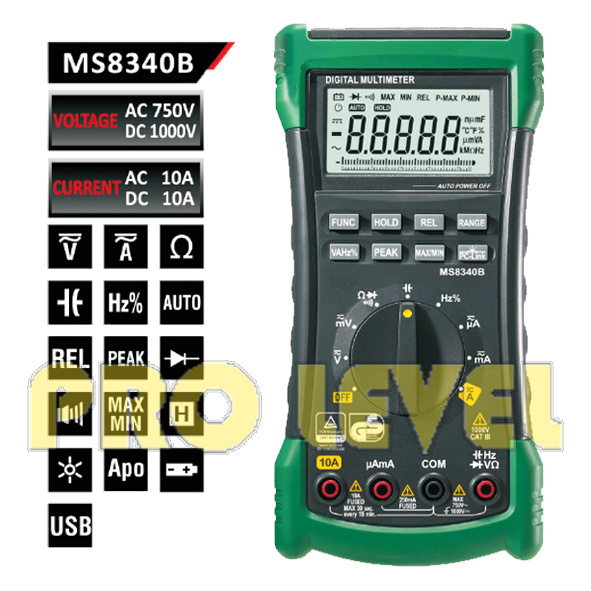

Autoranging Digital Multimeter MS8340B with 22000 counts
Features of Digital Multimeter MS8340B
* Display: 22000 counts
* Auto Ranging: Auto and manual
* REL: Relative measurement
* Peak Measurement: yes
* Didoe: 2.7V
* Continuity Buzzer: <50Ω
* Max/Min: yes
* Data hold: yes
* True RMS: yes
* APO: auto power off
* LBD: low battery display
* Display backlight: yes
* USB interface: windows OS
Specifications of Digital Multimeter MS8340B
* DC Voltage
- Range: 220mV/2.2V/22V/220V/1000V; Accuracy: +/-(0.05%+3)
* AC Voltage
- Range: 220mV/2.2V/22V/220V/700V; Accuracy: +/-(0.8%+4)
* DC Current
- Range: 220μA/2200μA/22mA/220mA/10A; Accuracy:+/-(0.8%+4)
* AC Current
- Range: 220μA/2200μA/22mA/220mA/10A; Accuracy:+/-(1.0%+3)
* Resistance
- Range: 220Ω/2.2KΩ/22KΩ/220KΩ/2.2MΩ/22MΩ/220MΩ; Accuracy:+/-(0.8%+2)
* Capacitance
- Range: 22nF/220nF/2.2μF/22μF/220μF/2.2mF/22mF/220mF; Accuracy: +/-(2.5%+3)
* Frequency
- Range: 0~220MHz; Accuracy: +/-(0.2%+3)
* Duty cycle
- Range: 5%~95%; Accuracy: +/-1%
* Power supply: 4x1.5V AA batteries
* Product size: 205mm x 102mm x 58mm /8.1" x 4.0" x 2.2"
* Product weight: 470g/1.03lb
* Safety rating: CE GS CAT. III 1000V
