Kaifeng Electronic Co., Ltd. >> Barrier Terminal Block (KF11) Power Distribution

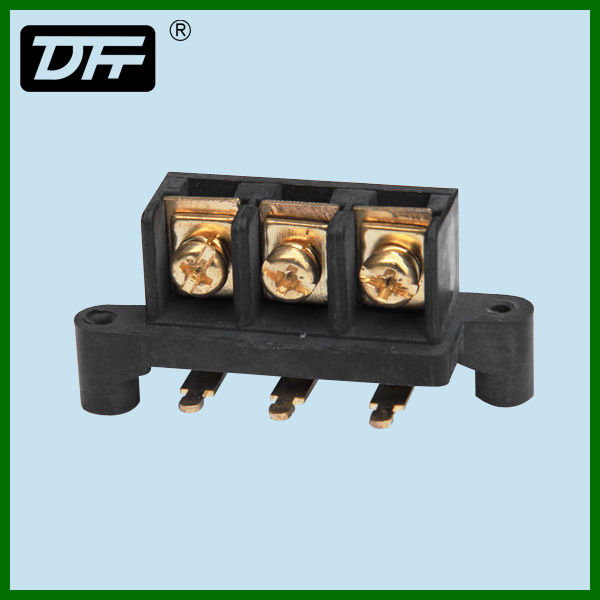

Barrier Terminal Block (KF11) Power Distribution

Name: Barrier Terminal Block (KF11) Power Distribution
Brand: china-manufacturer-directory.com
SKU: 709305205
Availability: InStock
Rating: 4.8 (148 reviews)

Supplier:	Kaifeng Electronic Co., Ltd.
Price:	Negotiable/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	KF11
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Environmental Protection:	Resistance to Environmental
Shape:	Rectangle
Application:	Computer
Contact Termination Form:	Welding Connection
Connection Mode:	In-Line Connector

Product Description

MATERIAL Housing:PA66,UL94V-0 Terminal:Brass 0.7t, Tin-Plated Screw:Steel,M3 Ni-Plated Eletronical Rated:300V/30A Withstanding Voltage:AC2000V/Min Insulation Resistance:500MΩ/DC500V Mechanical Temp.Range:-40ºC to +105ºC Wire Range:22-14AWG Max.Torque Value:0.5N.m 4.4Lb.in

Part number	KF11
Pitch	11mm
Material	PA66, UL94V-0
Rated voltage/current	300V/30A
Contact	Phosphor bronze
Wire range	22-14AWG
Screw	Steel,M3 Ni-Plated
Temp. Range	-40C~+105C
package	we packed in the standard cartons:282842cm,or as your requirement.
Payment	100% TT before shippment

KAIFENG ELECTRONICS was established in May 1988, major in manufacturing all kinds of electronic connectors.Its products apply in lots of apparatus in electron field.We have the innovation, mould manufacture, plastic injection, hardware process and installation departments, apply the advanced management and advanced process equipment, Meanwhile, we accept special requirements for OEM/ODM products.

After many years development, we have the better technology and full sorts.The products with high quality are sold to more than fifty countries.KAIFENG ELECTRONICS has been the most important provider of the electronic connectors in the Asia and the Pacific area.With the market, sticking in the idea of striving for perfection, we are going to bring in the many automatic technologies and equipments including CAD/CAM and Process Center.Thus, we can develop the multiple, innovative and market-leaded products.
