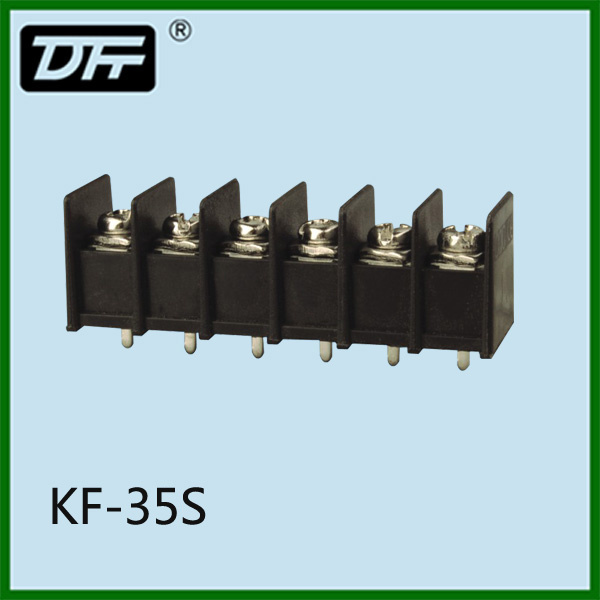

Barrier Terminal Blocks connectors (KF35S)
Pitch: 8.50mm
MATERIAL
Housing: PA66, UL94V-0
Terminal: Brass 0.7t, Tin-Plated
Screw: Steel, M3 Ni-Plated
CAPABILITY
Rated: 300V/20A
Withstanding Voltage: AC2000V/Min
Insulation Resistance: 500MΩ /DC500V
Mechanical
Temp. Range: -40º C to +105º C
Wire Range: 22-14AWG
Max. Torque Value: 10kg/cm
KAIFENG ELECTRONICS was established in May 1988, major in manufacturing all kinds of electronic connectors.Its products apply in lots of apparatus in electron field.We have the innovation, mould manufacture, plastic injection, hardware process and installation departments, apply the advanced management and advanced process equipment, Meanwhile, we accept special requirements for OEM/ODM products.
After many years development, we have the better technology and full sorts.The products with high quality are sold to more than fifty countries.KAIFENG ELECTRONICS has been the most important provider of the electronic connectors in the Asia and the Pacific area.With the market, sticking in the idea of striving for perfection, we are going to bring in the many automatic technologies and equipments including CAD/CAM and Process Center.Thus, we can develop the multiple, innovative and market-leaded products.
