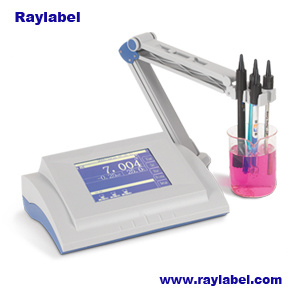

Benchtop Multi-Parameter Meter, Water Meter (RAY-708)

Name: Benchtop Multi-Parameter Meter, Water Meter (RAY-708)
Brand: china-manufacturer-directory.com
SKU: 690478362
Availability: InStock
Rating: 4.9 (57 reviews)

Supplier:	Raylabel Instrument Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	RAY-708
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	500420300mm
G.Weight:	4kg
Type:	Measurement Type

Product Description

Specifications:
It has 5.7 inch large touch screen and English operation system for easy use.
It can measure pH, pX, ORP, ion concentration, conductivity, resistivity, TDS, salinity, dissolved oxygen, saturation and temperature at the same time.
It provide many ion modes such as H+,Ag+,Na+,K+,NH4+,Cl-,F-,NO3-,BF4-,CN-
Cu2+,Pb2+,Ca2+ The users can define ion modes by themselves if choosing corresponding ion sensors.
It follows GLP practice and can store 2200 sets of measuring data.
Measuring data can be viewed, printed and deleted. The user can view current measuring data and the last calibration data.
It provides zero oxygen and full scale calibration,.
It has RS-232 and USB ports. If matched with specific data collecting software, it can be connected with PC.
It provides three measuring modes: continuous measuring, timing measuring and balance measuring mode.

Model Specifications		RAY-708	RAY-708-A	RAY-708-B	RAY-708-C
Parameters		Conductivity/DO/pH/pX/ºC	Conductivity/pH/pX/ºC	DO/pH/pX/ºC	Conductivity/DO/ºC
Range	pH/ pX	-2.000~19.999	√	√	_
	ORP	±1999.99mV	√	√	_
	Conductivity	0.000μS/cm~199.9mS/cm	√	_	√
	Resistivity	0.00Ω@cm~20.00MΩ@cm	√	_	√
	TDS	0.000 mg/L~19.99g/L	√	_	√
	Salinity	0.00~8.00%	√	_	√
	DO	0.00~19.99mg/L	_	√	√
	DO saturation	0.0~199.9%	_	√	√
	Response time	≤45s (90% respond at 20ºC)	_	√	√
	Ion Concentration	(0~19990), unit: ug/L\mg/L\g/L\mol/L\mmol/L	√	√	_
	Temperature	-5.0~135.0ºC	√	√	√
Resolution	pH/ pX	0.01 /0.001	√	√	_
	ORP	0.1/0.01	√	√	_
	DO	0.01mg/L	_	√	√
	DO Saturation	0.10%	_	√	√
	Temperature	0.1ºC	√	√	√
Accuracy	pH/ pX	±0.002±1 bit	√	√	_
	ORP	±0.03%FS	√	√	_
	Conductivity	±0.5%FS	√	_	√
	TDS	±0.5%FS	√	_	√
	Salinity	±0.1%	√	_	√
	DO	±0.50mg/L	_	√	√
	DO Saturation	±10.0%	_	√	√
	Temperature	±0.5ºC±1 bit		√	√
Temp Compensation		Auto,pH:(0.0~100.0)ºC; Conductivity:(0.0~100.0)ºC; DO:(0.0~40.0)ºC	√	√	√
GLP Standard		Yes	√	√	√
Ion Mode		Provide multiple common ion mode (such as H + ,Na + ,K + ,NH4 + ,Cl - ,F - etc^), Custom ion mode	√	√	_
Measuring Mode		3 (continuous measuring, timed measuring and balance measuring mode)	√	√	√
Zero offset, Full Scale Calibration		Yes	_	√	√
Data Storage		2200 data with time-and-date stamp	√	√	√
View, delete and print		Yes	√	√	√
Display		Touch, big LCD screen	√	√	√
Output		RS-232,USB	√	√	√
Software		1.1DC	√	√	√
Power		Universal power adapter(9V,800mA inside – positive, outside – negative)	√	√	√
Case outside serial No.		WXS-A009-1	√	√	√
Dimension ( mm ), Weight( kg )		250×195×100,2	√	√	√
