Product Specifications
| Prod Model: |
DW25CNC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
Dw-25CNC |
| Color: |
Blue |
| System: |
CNC |
| Automation: |
Automatic |
| Type For Cutting Machine: |
CNC Cutting Machine |
| Type For Fold-bending Machine: |
CNC Fold-bend Machine |
| Application: |
Machinery & Hardware |
Product Description

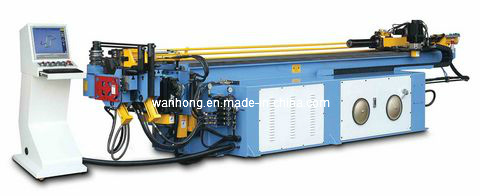

Bend Machine
1. Automatic recognition of power in machine correct and fast.
2. Slow returing-core, boosted by barrow, improving the appearance of the angle.
3. Display of the whole operation in English+15 inches true-color monitor+ touch screen, easy, quick and correct operation
4. Rebounding test--comparision test on the features of lots of pipe materials.
5. Pictured programming system: Draw or modify on the stereo pipe image on the screen, getting the processing correct and fast.
6. Automatic drawing of the graphic of dies--clear help to developing new products.
7. Over--all inspection: Hydraulic/electrical circuit/driving systems, absence of phase in motors/inversion, voltage, temperature, oil pressure, and automatically diagnose the troubles.
8. Passwords, keys, working hours/ recordings of qualities, are applied to management of production.
|
Main Specifications |
Model |
DW18CNC x 3A-1S |
DW25CNCx2A-1S |
DW38CNCx2A-1S |
DW50CNCx2A-1S |
DW63CNCx2A-1S |
DW75CNCx2A-1S |
DW89CNCx2A-1S |
DW100CNCx2A-1S |
DW114CNCx2A-1S |
|
|
|
|
DW25CNCx3A-1S |
DW38CNCx3A-1S |
DW50CNCx3A-1S |
DW63CNCx3A-1S |
DW75CNCx3A-1S |
DW89CNCx3A-1S |
DW100CNCx3A-1S |
DW114CNCx3A-1S |
|
Maximum bending diameter x thickness (steel) |
|
18mmx1.6mm |
25mmx1.6mm |
38mmx2mm |
50mmx3mm |
63mmx3mm |
75mmx2mm |
89mmx4mm |
100mmx8mm |
114mmx10mm |
|
Maximum bending radius |
[1] |
R80mm |
R100mm |
R180mm |
R250mm |
R250mm |
R300mm |
R300mm |
R350mm |
R350mm |
|
Minimum bending radius |
[2] |
R5mm |
R5mm |
R15mm |
R20mm |
R25mm |
R30mm |
R30mm |
R50mm |
R50mm |
|
Maximum bending angle |
|
190° |
190° |
190° |
190° |
190° |
190° |
190° |
190° |
190° |
|
Maximum feed length |
[3] |
1500mm |
2500mm |
3000mm |
3000mm |
3000mm |
3000mm |
3000mm |
3000mm |
3000mm |
|
Feeding |
|
Direct/pinch |
|
Working speed |
Bending speed |
Max200°/s |
Max200°/s |
Max150°/s |
Max85°/s |
Max85°/s |
Max40°/s |
Max30°/s |
Max30°/s |
Max30°/s |
|
Rotary speed |
Max200°/s |
Max200°/s |
Max200°/s |
Max200°/s |
Max200°/s |
Max160°/s |
Max160°/s |
Max160°/s |
Max160°/s |
|
Feeding speed |
Max1000mm/s |
Max1000mm/s |
Max1000mm/s |
Max1000mm/s |
Max1000mm/s |
Max800mm/s |
Max800mm/s |
Max800mm/s |
Max800mm/s |
|
Accuracy |
Bending speed |
±0.1° |
±0.1° |
±0.1° |
±0.1° |
±0.1° |
±0.1° |
±0.1° |
±0.1° |
±0.15° |
|
Rotary speed |
±0.1° |
±0.1° |
±0.1° |
±0.1° |
±0.1° |
±0.1° |
±0.1° |
±0.1° |
±0.1° |
|
Feeding speed |
±0.1mm |
±0.1mm |
±0.1mm |
±0.1mm |
±0.1mm |
±0.1mm |
±0.1mm |
±0.1mm |
±0.1mm |
|
Data Input Method |
1.Coordinate(X Y Z) 2.Work values(Y B C) |
|
Bending mode |
|
1.Servo elbow:1kw 2.Hydraulic pipe |
1.Servo elbow:2kw 2.Hydraulic pipe |
1.Servo elbow:5kw 2.Hydraulic pipe |
1.Servo elbow:5kw 2.Hydraulic pipe |
1.Servo elbow:7kw 2.Hydraulic pipe |
1.Servo elbow:7kw 2.Hydraulic pipe |
1.Servo elbow:11kw 2.Hydraulic pipe |
1.Servo elbow:11kw 2.Hydraulic pipe |
1.Servo elbow:11kw 2.Hydraulic pipe |
|
Turn the servo motor power |
|
400w |
400w |
750w |
750w |
750w |
1kw |
1.5kw |
1.5kw |
1.5kw |
|
Feeding servo motor power |
|
750w |
750w |
1kw |
1kw |
1kw |
1.5kw |
2kw |
3.5kw |
3.5kw |
|
Number of bend pipe fittings |
|
1.12Item 2.33Item |
|
Storing components |
|
1.330Group 2.125Group |
|
Hydraulic motor power |
|
Start type |
3kw |
4kw |
5.5kw |
5.5kw |
7.5kw |
11kw |
15kw |
22kw |
|
Maximum system pressure |
|
10Mpa |
12Mpa |
12Mpa |
12Mpa |
12Mpa |
12Mpa |
14Mpa |
Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
