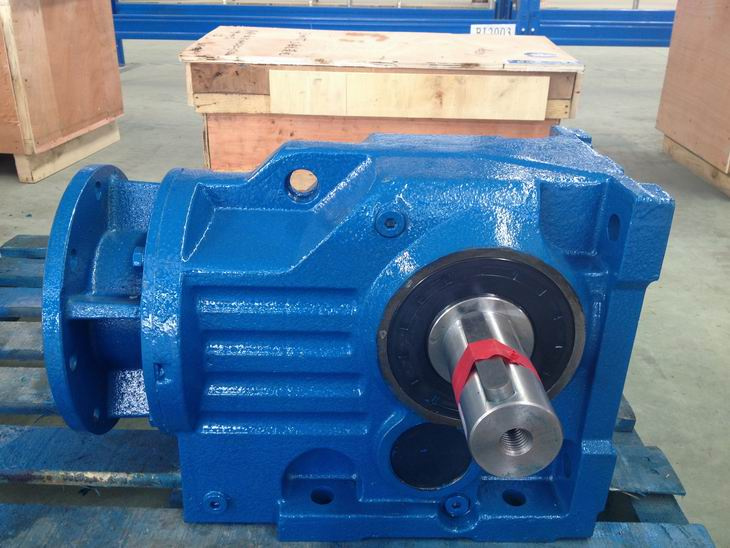

Bevel Helical Gearbox Conico Helicoidales - Ejes Perpendiculares (K37~ K187)
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,EXW |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union |
Specifications:
1. Wide range of ratios
2. Foot Mounted / B5 or B14 Flanged Mounted / Solid or Hollow Shaft/ Hollow Shaft with Keyed Connection / Shrink Disk / Splined Hollow Shaft
3. MOQ: 1 set
4. Competitive Price+ Fast Delivery
Features:
1. Can be matched with different type of motor or power for input Convenient for combination connect of different type of machines.
2. High transmission efficiency, can up to 96% for a single machine
3. Precise Division of transmission ratio with a wide range, machine combination can produce a large ratio which with a very low output speed rotate
4. Designed for foot, Shaft and flanged installation
Technical data:
1, Output torque: 200-50000(N. M)
2, Rated power: 0.12-200(kw)
3, Input speed: ≤ 1500 (rpm)
4, Output speed: ≤ 280(rpm)
5, Transmission ratio: ≥ 5.36
6, Series: 3
7, Install form: M1-M6
8, Model No.: K/KA/KF/KAF/KH/KHF/KV/KVF/KVZ(37/47/57/67/77/87/97/107/127/157/167/187)
Version |
Size |
37 |
47 |
57 |
67 |
77 |
87 |
K.. |
Foot-mounted |
K37 |
K47 |
K57 |
K67 |
K77 |
K87 |
KA..B |
Foot-mounted / Hollow shaft |
KA37B |
KA47B |
KA57B |
KA67B |
KA77B |
KA87B |
KV..B |
Foot-mounted / Hollow shaft / Splined hollow shaft |
KV37B |
KV47B |
KV57B |
KV67B |
KV77B |
KV87B |
KH..B |
Foot-mounted / Hollow shaft / Shrink disk |
KH37B |
KH47B |
KH57B |
KH67B |
KH77B |
KH87B |
KF.. |
B5 Flange-mounted |
KF37 |
KF47 |
KF57 |
KF67 |
KF77 |
KF87 |
KAF.. |
B5 Flange-mounted / Hollow shaft |
KAF37 |
KAF47 |
KAF57 |
KAF67 |
KAF77 |
KAF87 |
KVF.. |
B5 Flange-mounted / Hollow shaft / Splined hollow shaft |
KVF37 |
KVF47 |
KVF57 |
KVF67 |
KVF77 |
KVF87 |
KHF.. |
B5 Flange-mounted / Hollow shaft / Shrink disk |
KHF37 |
KHF47 |
KHF57 |
KHF67 |
KHF77 |
KHF87 |
KA.. |
Hollow shaft |
KA37 |
KA47 |
KA57 |
KA67 |
KA77 |
KA87 |
KV.. |
Hollow shaft / Splined hollow shaft |
KV37 |
KV47 |
KV57 |
KV67 |
KV77 |
KV87 |
KH.. |
Hollow shaft / Shrink disk |
KH37 |
KH47 |
KH57 |
KH67 |
KH77 |
KH87 |
KT.. |
Hollow shaft |
KT37 |
KT47 |
KT57 |
KT67 |
KT77 |
KT87 |
KAZ.. |
B14 Flange-mounted / Hollow shaft |
KAZ37 |
KAZ47 |
KAZ57 |
KAZ67 |
KAZ77 |
KAZ87 |
KVZ.. |
B14 Flange-mounted / Hollow shaft / Splined hollow shaft |
KVZ37 |
KVZ47 |
KVZ57 |
KVZ67 |
KVZ77 |
KVZ87 |
KHZ.. |
B14 Flange-mounted / Hollow shaft / Shrink disk |
KHZ37 |
KHZ47 |
KHZ57 |
KHZ67 |
KHZ77 |
KHZ87 |
Version |
Size |
97 |
107 |
127 |
157 |
167 |
187 |
K.. |
Foot-mounted |
K97 |
K107 |
K127 |
K157 |
K167 |
K187 |
KA..B |
Foot-mounted / Hollow shaft |
KA97B |
KA107B |
KA127B |
KA157B |
KA167B |
KA187B |
KV..B |
Foot-mounted / Hollow shaft / Splined hollow shaft |
KV97B |
KV107B |
KV127B |
KV157B |
KV167B |
KV187B |
KH..B |
Foot-mounted / Hollow shaft / Shrink disk |
KH97B |
KH107B |
KH127B |
KH157B |
KH167B |
KH187B |
KF.. |
B5 Flange-mounted |
KF97 |
KF107 |
KF127 |
KF157 |
KF167 |
KF187 |
KAF.. |
B5 Flange-mounted / Hollow shaft |
KAF97 |
KAF107 |
KAF127 |
KAF157 |
|
|
KVF.. |
B5 Flange-mounted / Hollow shaft / Splined hollow shaft |
KVF97 |
KVF107 |
KVF127 |
KVF157 |
KVF167 |
KVF187 |
KHF.. |
B5 Flange-mounted / Hollow shaft / Shrink disk |
KHF97 |
KHF107 |
KHF127 |
KHF157 |
KHF167 |
KHF187 |
KA.. |
Hollow shaft |
KA97 |
KA107 |
KA127 |
KA157 |
KA167 |
KA187 |
KV.. |
Hollow shaft / Splined hollow shaft |
KV97 |
KV107 |
KV127 |
KV157 |
KV167 |
KV187 |
KH.. |
Hollow shaft / Shrink disk |
KH97 |
KH107 |
KH127 |
KH157 |
KH167 |
KH187 |
KT.. |
Hollow shaft |
KT97 |
KT107 |
KT127 |
KT157 |
KT167 |
KT187 |
KAZ.. |
B14 Flange-mounted / Hollow shaft |
KAZ97 |
KAZ107 |
KAZ127 |
KAZ157 |
KAZ167 |
KAZ187 |
KVZ.. |
B14 Flange-mounted / Hollow shaft / Splined hollow shaft |
KVZ97 |
KVZ107 |
KVZ127 |
KVZ157 |
KVZ167 |
KVZ187 |
KHZ.. |
B14 Flange-mounted / Hollow shaft / Shrink disk |
KHZ97 |
KHZ107 |
KHZ127 |
KHZ157 |
KHZ167 |
KHZ187 |
Prod Model: |
K37~ K187 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Gearing Arrangement: |
Helical-Bevel |
Output Torque: |
Top to 50000nm |
Rated Power: |
0.12-200 Kw |
Input Speed: |
1500rpm |
Transmission Ratio: |
5.36~179.86(Imax:18125) |
Output Speed: |
0.15~270rpm |
Material: |
Cast Iron Housing |
Brand Name: |
Mrd, Flk |
Quality Control System: |
ISO9001:2008 |
Certificate For Motor: |
CE, UL, CSA |
Type: |
Bevel Gear |
Toothed Portion Shape: |
Bevel Wheel |
Manufacturing Method: |
Gear Grinding |
Anhui Ferrocar Heavy Transmission Co., Ltd(hereinafter named FLK) is an integrated enterprise, which is specialized in the researching & developing, designing, manufacturing, sales and service of the gearbox.
FLK is located in the Lu'an Economic Development Zone, with total investment of 2 hundred million RMB( 33 million USD dollars) by Shanghai MRD Heavy Industries Group Corporation, covering an area of 300 Mu(200, 000 square meters). Founded in 2002, we are committed to improve the manufacturing and production level of our products. By solving transmission technology problem for customers, supplying the best transmission technical plan, progressive innovation and brand management, FLK has become a high-tech enterprise which collects R&D, manufacturing, trade and service.
Specialized in manufacturing general gearbox, worm gearbox, industrial gearbox, planetary gearbox and various special combined and non-standard designed products, FLK products are widely used in the field of electricity, coal, cement, metallurgy, port, ship, lifting, environmental protection, stage, logistics, textile, paper, light industry, plastics. Advanced and sophisticated manufacturing equipment, strict quality control, excellent production concept, high-quality professional team and taking the lead through the ISO9001 quality system certification will ensure every product from FLK is outstanding. FLK has entered and been the reliable manufacturer for China First Heavy Industries Group Corporation, China National Erzhong Group Corporation., SANY Heavy Industry Co., Ltd. Shanghai Zhenhua Heavy Industry Co., Ltd, Anshan Iron and Steel Group Corporation, Beijing Shougang Construction Group Co., Ltd. Pangang Group Company Ltd and large domestic amusement equipments.
Accurate market positioning, rapid information feedback, agile management thinking, bold introduction of scientific research personnel, FLK has established a science and technology innovation system quickly. By adopting the advance of the international and domestic technology, we seize market opportunities and has won the trust from our customers, which has made FLK a very competitive brand in the field of gearbox.
We are adhering to the managing concept of "integrity, quality, service, development, excellent" and striving to provide customers with whole transmission solutions. Customers' needs are our eternal pursuit. Our products are sold well in domestic market and exported to the market in Europe, America, Southeast Asia, the Middle East and other countries and regions. We sincerely welcome domestic and overseas customers and friends to visit our company to join hands for better future in the field of gearbox.
