Product Specifications
| Prod Model: |
R17-R167 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Gearing Arrangement: |
Helical |
| Input Speed: |
0--1500r/Min |
| Output Torque: |
160n.M-18000 N.M |
| Output Speed: |
0.1--1108r/Min |
| Rated Power: |
0.12-160 Kw |
| Ratio: |
8--14 |
| Material: |
Steel |
| Type: |
C.V. Joints |
| Certification: |
CE |
Product Description

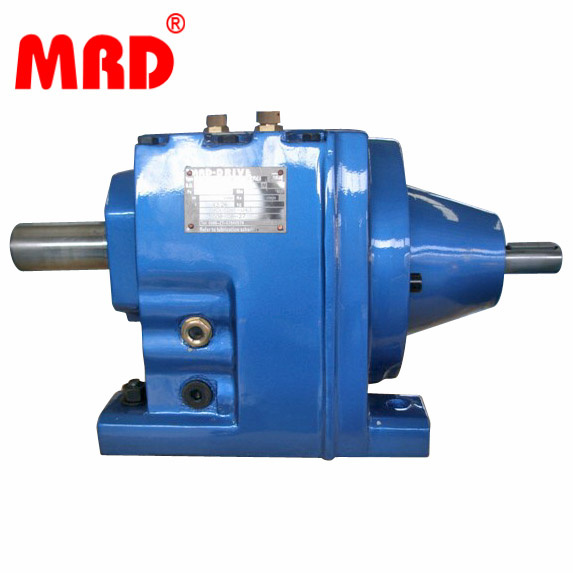

In six single-stage and fourteen two-stage and three-stage sizes, the helical gearmotors by MRD ensure an optimum ratio between power and space requirements.
Your benefits
High power density
Long service life
R37 to R167 reduced backlash option
RM series, specially designed for agitating applications
The tried and tested modular concept and our strict quality criteria allow MRD to provide a diverse range of torques and gear ratios with incomparably finely tuned gradings. With this exceptional diversity, MRD sets new standards in the field of drive engineering.
Available versions
Single-stage or multi-stage
Foot-mounted or flange-mounted
Foot-mounted and flange-mounted
Flange-mounted with extended bearing hub
Feature
1. Structure: Flange-mounted, foot-mounted (can oil), flange-mounted single stage gear, foot-mounted single stage gear, flange-mounted with leangthen bearing box
2. Small off-center output and compact structure
3. Maximum utilization of housing space
4. Integral casting housing with good rigidity to enhance the shaft strength and service life of bearing
5. Big or small flange type installation and output through solid shaft
6. Good available capability & reliability
7. Good temperature exchange capability & high strengthens
8. Carburized and grinded teeth
9. Input types: Couple-type motor, input through shaft and input through coupling flange
10. Modular designed and composed with other drive units to satisfy all kinds of plan of transmission
Technical parameters
Housing material HT200 high-strength cast iron
Housing hardness HBS190-240
Gear material 20CrMnTiH alloy steel
Surface hardness of gears HRC58° ~62 °
Gear core hardness HRC33~40
Input / Output shaft material 40CrMo alloy steel
Input / Output shaft hardness HRC25~30
Machining precision of gears accurate grinding, 6~5 Grade
Heat treatment tempering, cementiting, quenching, etc.
Efficiency 94%~96% (depends on the transmission stage)
Noise (MAX) 60~68dB
Temp. Rise (MAX) 40° C
Temp. Rise (Oil)(MAX) 50° C
Vibration ≤ 20µ M
Backlash ≤ 20Arcmin
Brand of bearings RenBen, LYC, NSK or other brand
Brand of oil seal NAK, CTY, SKF, CFW or other brand
