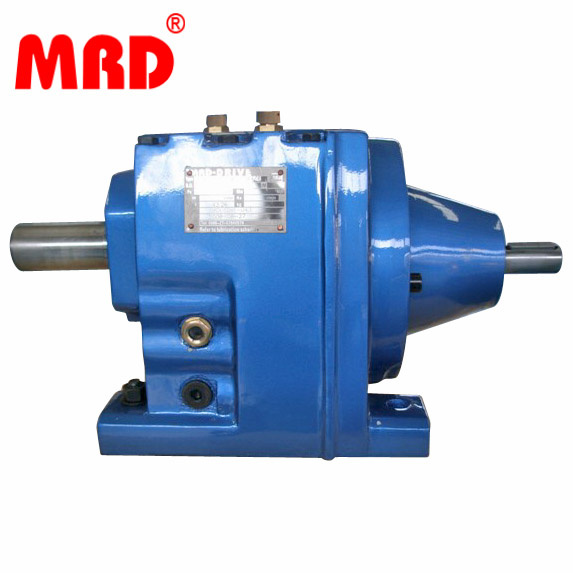

R Seres Helical Gearbox (R17-R167)

R Seres Helical Gearbox (R17-R167)
Supplier: Anhui Ferrocar Heavy Transmission Co., Ltd.
Price: Negotiable/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,CFR,EXW
contact supplier

Product Specifications

Prod Model: R17-R167
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: Red Blue Gray
Output Torque: 70-18000n.M
Rated Power: 0.09--160
Input Speed: 1500rpm
Transmission Ratio: 1.30_229.71 (Imax:18125)
Mounted Form: Horizontal
Material: Cast Iron
Brand: Mrd
Place Of Origin: Lu'an City, Anhui Province
Manufacturing Method: Cast Gear
Type: Helical Gear
Toothed Portion Shape: Helical Gear

Product Description

In six single-stage and fourteen two-stage and three-stage sizes, the helical gearmotors by MRD ensure an optimum ratio between power and space requirements.

Your benefits

High power density
Long service life
R37 to R167 reduced backlash option
RM series, specially designed for agitating applications
The tried and tested modular concept and our strict quality criteria allow MRD to provide a diverse range of torques and gear ratios with incomparably finely tuned gradings. With this exceptional diversity, MRD sets new standards in the field of drive engineering.

Available versions

Single-stage or multi-stage
Foot-mounted or flange-mounted
Foot-mounted and flange-mounted
Flange-mounted with extended bearing hub

Feature
1. Structure: Flange-mounted, foot-mounted (can oil), flange-mounted single stage gear, foot-mounted single stage gear, flange-mounted with leangthen bearing box
2. Small off-center output and compact structure
3. Maximum utilization of housing space
4. Integral casting housing with good rigidity to enhance the shaft strength and service life of bearing
5. Big or small flange type installation and output through solid shaft
6. Good available capability & reliability
7. Good temperature exchange capability & high strengthens
8. Carburized and grinded teeth
9. Input types: Couple-type motor, input through shaft and input through coupling flange
10. Modular designed and composed with other drive units to satisfy all kinds of plan of transmission

Technical parameters

Housing material HT200 high-strength cast iron
Housing hardness HBS190-240
Gear material 20CrMnTiH alloy steel
Surface hardness of gears HRC58° ~62 °
Gear core hardness HRC33~40
Input / Output shaft material 40CrMo alloy steel
Input / Output shaft hardness HRC25~30
Machining precision of gears accurate grinding, 6~5 Grade
Heat treatment tempering, cementiting, quenching, etc.
Efficiency 94%~96% (depends on the transmission stage)
Noise (MAX) 60~68dB
Temp. Rise (MAX) 40° C
Temp. Rise (Oil)(MAX) 50° C
Vibration ≤ 20µ M
Backlash ≤ 20Arcmin
Brand of bearings RenBen, LYC, NSK or other brand
Brand of oil seal NAK, CTY, SKF, CFW or other brand
Single-stage Size
57 67 77 87 97 107
RX.. Foot-mounted RX57 RX67 RX77 RX87 RX97 RX107
RXF.. Flange-mounted RXF57 RXF67 RXF77 RXF87 RXF97 RXF107
Multi-stage Size
07 17 27 37 47 57 67
R.. Foot-mounted R07 R17 R27 R37 R47 R57 R67
R..F Foot-mounted and flange-mounted R07F R17F R27F R37F R47F R57F R67F
RF.. B5 flange-mounted design RF07 RF17 RF27 RF37 RF47 RF57 RF67
RZ.. B14 Flange-mounted design RZ07 RZ17 RZ27 RZ37 RZ47 RZ57 RZ67
RM.. Flange-mounted with extended bearing hub RM57 RM67
Multi-stage Size
77 87 97 107 137 147 167
R.. Foot-mounted R77 R87 R97 R107 R137 R147 R167
R..F Foot-mounted and flange-mounted R77F R87F R97F R107F R137F R147F R167F
RF.. B5 flange-mounted design RF77 RF87 RF97 RF107 RF137 RF147 RF167
RZ.. B14 Flange-mounted design RZ77 RZ87
RM.. Flange-mounted with extended bearing hub RM77 RM87 RM97 RM107 RM137 RM147 RM167


Anhui Ferrocar Heavy Transmission Co., Ltd(hereinafter named FLK) is an integrated enterprise, which is specialized in the researching & developing, designing, manufacturing, sales and service of the gearbox.

FLK is located in the Lu'an Economic Development Zone, with total investment of 2 hundred million RMB( 33 million USD dollars) by Shanghai MRD Heavy Industries Group Corporation, covering an area of 300 Mu(200, 000 square meters). Founded in 2002, we are committed to improve the manufacturing and production level of our products. By solving transmission technology problem for customers, supplying the best transmission technical plan, progressive innovation and brand management, FLK has become a high-tech enterprise which collects R&D, manufacturing, trade and service.

Specialized in manufacturing general gearbox, worm gearbox, industrial gearbox, planetary gearbox and various special combined and non-standard designed products, FLK products are widely used in the field of electricity, coal, cement, metallurgy, port, ship, lifting, environmental protection, stage, logistics, textile, paper, light industry, plastics. Advanced and sophisticated manufacturing equipment, strict quality control, excellent production concept, high-quality professional team and taking the lead through the ISO9001 quality system certification will ensure every product from FLK is outstanding. FLK has entered and been the reliable manufacturer for China First Heavy Industries Group Corporation, China National Erzhong Group Corporation., SANY Heavy Industry Co., Ltd. Shanghai Zhenhua Heavy Industry Co., Ltd, Anshan Iron and Steel Group Corporation, Beijing Shougang Construction Group Co., Ltd. Pangang Group Company Ltd and large domestic amusement equipments.

Accurate market positioning, rapid information feedback, agile management thinking, bold introduction of scientific research personnel, FLK has established a science and technology innovation system quickly. By adopting the advance of the international and domestic technology, we seize market opportunities and has won the trust from our customers, which has made FLK a very competitive brand in the field of gearbox.

We are adhering to the managing concept of "integrity, quality, service, development, excellent" and striving to provide customers with whole transmission solutions. Customers' needs are our eternal pursuit. Our products are sold well in domestic market and exported to the market in Europe, America, Southeast Asia, the Middle East and other countries and regions. We sincerely welcome domestic and overseas customers and friends to visit our company to join hands for better future in the field of gearbox.
