Supplier: | WMT CNC INDUSTRIAL CO., LTD. |
---|---|
Price: | US $ 10300-11210/Piece |
Min Order: | 1/Piece |
Quantity:: | |
Trade Terms: | FOB,CFR,CIF |
![]() |
Prod Model: | BK5018 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
RAM Max. Slotting Length: | 180mm |
Worktable Size: | 600*320mm |
Worktable Travel: | 460*320mm |
Fast Moving: | 5 M/Min |
Controller: | GSK, Siemens for Chosing |

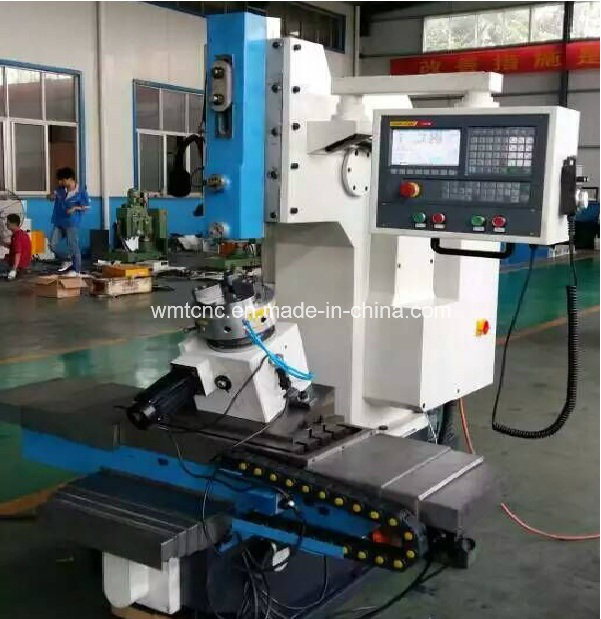

Machine: | CNC Slotting Machine |
Colour: | According to Customer's Requirment |
Type: | Shaping Machine |
Controlling Mode: | CNC |
Automatic Grade: | Automatic |
Power Source: | Electric |
Precision: | High Precision |
Shaping Machine Type: | Vertical Shaping Machine |
Main Specification
Main Technology Data | Model BK5018 |
Ram max. slotting length | 180mm |
Ram stroke adjustment | 80mm |
Ram movement times | 45/60/90 n/min |
Worktable size | 600×320mm |
Travel of worktable(X/Y) | 460×320mm |
The knife head supporting hole axis to column forearm distance | 400mm |
The knif head supporting hole end to table working distance | 480mm |
X to the motor torque | 6 N.M |
Y to the motor torque | 6 N.M |
Fast moving | 5 m/min. |
Ball screw (X) | FFZD3205-3/P4 |
Ball screw (Y) | FFZD3205-3/P4 |
Main motor power | 1.5/2/2.2 kw |
Machine weight | 1500kg |
