| Price: | US $ 6820-6846SET |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1SET |
| Pay Type: | L/C,T/T,D/P,Paypal,Western Union |
| SPECIFICATION | C6251 | C6256 | ||||
| Swing over red | 510mm(20") | 560mm(22") | ||||
| Swing in gap | 300mm(11-7/8") | 350mm(13-3/4") | ||||
| Swing of gap | 738mm(29") | 788mm(31") | ||||
| Length of gap | 200mm(8") | |||||
| Distance between centers | 1500mm(60") | 2000mm(78") | 1500mm(60") | 2000mm(78") | ||
| Center height | 1135mm | 1160mm | ||||
| Width of bed 350mm(13-3/4") | ||||||
| Spindle nose | D1-8 | |||||
| Spindle bore | 80mm(3-1/8") | |||||
| Taper of spindle bore | No.7Morse | |||||
| Range of spindle speed | 12changes25-1600r/min | |||||
| Max.travel of compound rest | 130mm(5-1/8") | |||||
| Max.travel of cross slide | 326mm(12-15/16") | |||||
| Leadscrew pitch | 6mmOr4T.P.L | |||||
| Max.section of tool | 25×25mm(1×1") | |||||
| Longitudinal feeds range | 35kinds0.059-1.646mm/rev(0.0022"-0.0612"/rev) | |||||
| Cross feeds range | 35kinds0.020-0.573mm(0.00048"-0.01354") | |||||
| Metric threads range | 47kinds0.2-14mm | |||||
| Inch threads range | 60kinds2-112T.P.L | |||||
| Diametrical pitches range | 50kinds4-112D.P. | |||||
| Module pitches range | 39kinds0.1-7M.P. | |||||
| Dia of tailstock sieeve | 75mm(3") | |||||
| Travel of tailstock sleeve | 180mm(7") | |||||
| Morse taper of tailstock sleeve | No.5Morse | |||||
| Cross adjustment | ±13mm(±1/2") | |||||
| Power of main motor | 7.5kw(10HP)3PH | |||||
| Power of coolant pump | 0.1kw(1/8HP),3PH | |||||
| Overall dimension(L×W×H)cm | 290×112×143 | 340×112×143 | 290×112×146 | 340×112×143 | ||
| Packing size(L×W×H)cm | 296×113×182 | 346×113×182 | 296×113×182 | 346×113×182 | ||
| Net weight/Gross weight | 2335/2700 | 2685/3070 | 2370/2740 | 2720/3110 | ||
| STANDARD ACCESSORIES | ||||||
| 1 Three Jaw Chuck and Adapter 2 Four Jaw Chuck and Adapter 3 Face Plates 4 Steady Rest 5 Follow Rest | 6 Oil Gun 7 Thread Chasing Dial 8 Operation Manual 9 One set of Wrenches 10 MT 7/5 Sleeve and MT 5 Center | |||||
| SPECIAL ACCESSORIES | ||||||
| 1 Driving Plate 2 Quick Change Tool Post 3 Taper Turning Attachment | ||||||

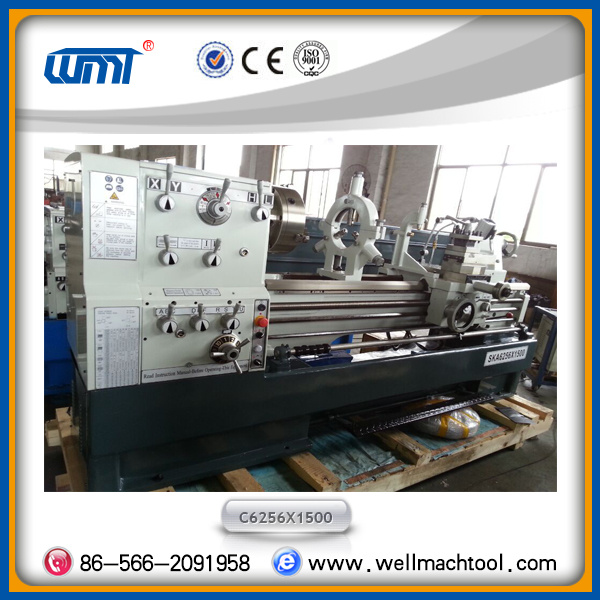

| Prod Model: | C6251 C6256 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Spindle Bore: | 80mm |
| Max. Swing Over Bed: | 510/560mm |
| Distance Between Centers: | 1000/1500/2000/3000mm |
| Machine: | Lathe |
| Voltage: | 110V, 220V, 380V |
| Clour: | Customer Appoint |
| Package: | Fumigated Poly-Wood Case |
| Payment: | T/T, Paypal, LC, West Union |
| Type: | Horizontal Lathe |
| Power Source: | Electric |
| Controlling Mode: | Artificial |
| Automatic Grade: | Semiautomatic |
| Setting Mode: | Floor-type |
| Precision: | High Precision |
| Processing Accessory: | Steel Workpiece |
| Tool Holder: | 4-Station Toolpost |
