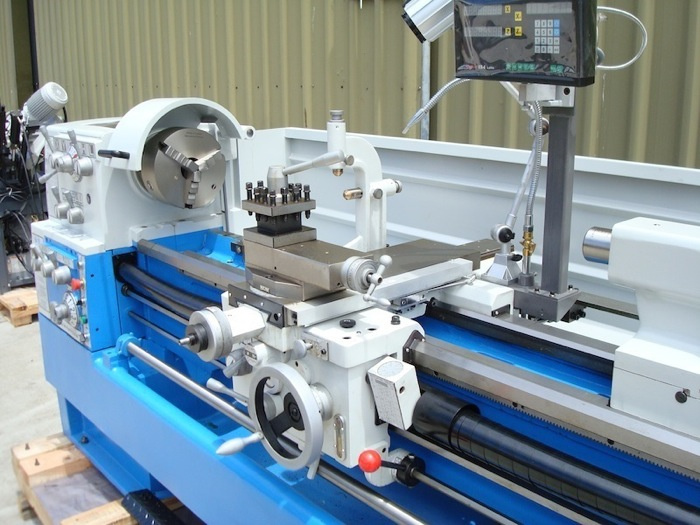

Features:The guide way and all gears in the headstock are hardened and precision ground.
The spindle system is high rigidity and accuracy.
The machines have powerful headstock gear train, high rotating accuracy and smooth running with low noise.
An overload safety device is provided on the apron.
Pedal or electromagnetic braking device.
Tolerance test certificate, test flow chart included

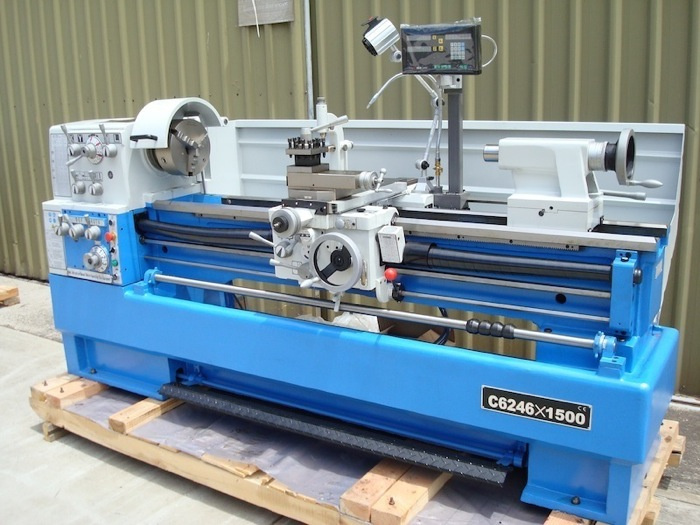

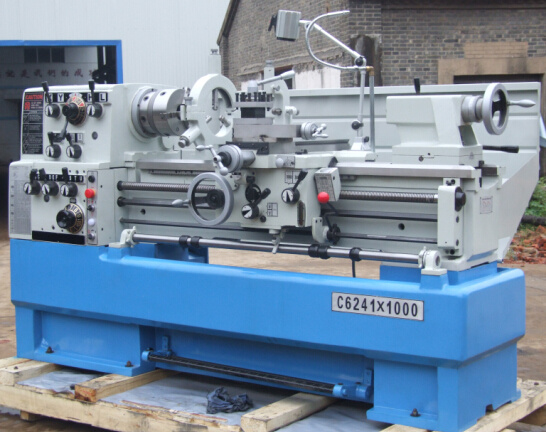

Specification:| Horizontal High Precision Lathe Machine | C6241×1000 | C6241×1500 | C6246×1000 | C6246×1500 |
| Max.swing over bed | Φ410mm(16") | Φ460mm(18") |
| Max.swing over cross slide | Φ224mm(8 13/16") | Φ274mm(10 3/4") |
| Max. swing over gap | Φ640mm(25 1/8") | Φ690mm(27 1/8") |
| Length of gap | 155mm(6 1/8") |
| Max.length of workpiece | 1000mm(40")/1500mm(60") |
| Width of bed | 300mm(11 13/16") |
| Spindle nose | D1-6 |
| Spindle bore | Φ58mm(2-1/4") |
| Taper of spindle bore | M.T.#6 |
| Range of spindle speed | 12changes25-2000r/min |
| Max.travel of compound rest | 120mm(4 3/4") |
| Max.travel of cross slide | 290mm(11 3/8") |
| Leadscrew pitch | metric 6mm |
| Max.section of tool | 25mm×25mm(1×1") |
| Range of longitudinal feeds | 42kinds 0.031-1.7mm/rev (0.0011"-0.0633"/rev) |
| Range of cross feeds | 42kinds 0.014-0.784mm/rev (0.00033"-0.01837"/rev) |
| Metric threads range | 41kinds 0.1-14mm |
| Inch threads range | 60kinds 2-112 T.P.I. |
| Diametrical pitches range | 50kinds 4-112D.P. |
| Module piches rang | 34kinds 0.1-7 M.P. |
| Dia. of tailstock sleeve | 60mm(2 5/16") |
| Travel of tailstock sleeve | 120mm(4 3/4") |
| Morse taper of tailstock sleeve | M.T.#4 |
| Power of main motor | 4kw(5.4HP),optional 5.5kw(7.5HP)3PH |
| Power of coolant pump | 40w |
Standard accessories:3-jaw chuck
4-jaw chuck
Steady rest
Follow rest
Foot plate
Optional accessories:DRO
Quick change toolpost
Chuck protection
Leading screw guard
Toolpost protection
