WMT CNC INDUSTRIAL CO., LTD. >> Factory Direct Sale Precision Lathe Machine (Metal Lathe C6241 C6246)

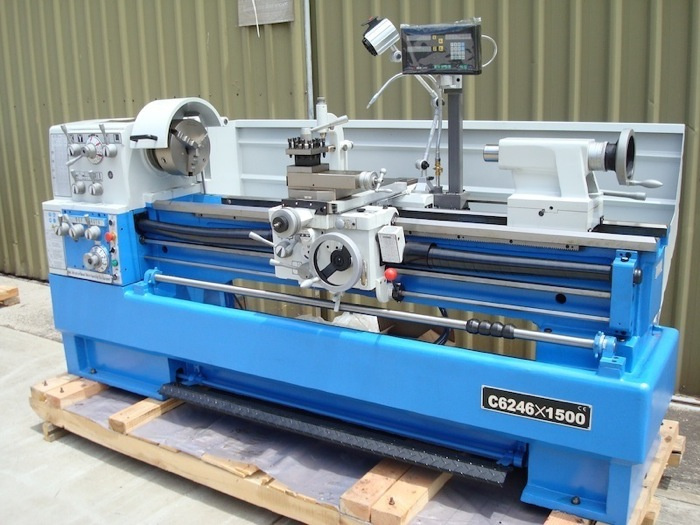

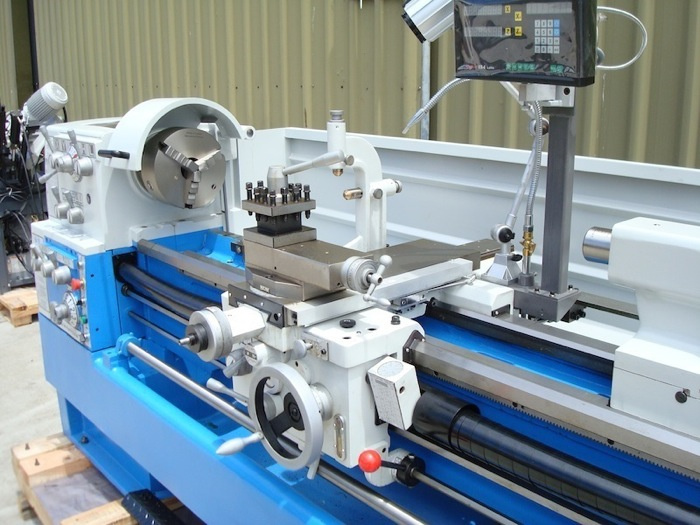

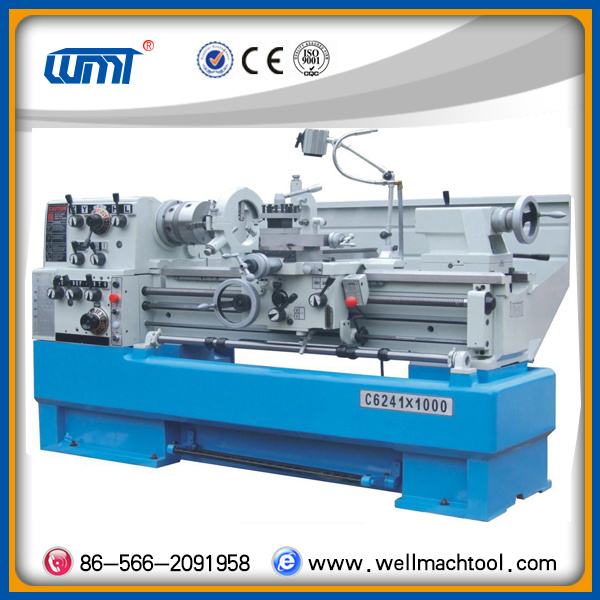

Factory Direct Sale Precision Lathe Machine (Metal Lathe C6241 C6246)

Name: Factory Direct Sale Precision Lathe Machine (Metal Lathe C6241 C6246)
Brand: china-manufacturer-directory.com
SKU: 772307515
Availability: InStock
Rating: 5 (46 reviews)

Supplier:	WMT CNC INDUSTRIAL CO., LTD.
Price:	US $ 6820-6846SET
Min Order:	1SET
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	C6241 C6246
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Spindle Bore:	58mm
Max. Swing Over Bed:	410/460mm
Distance Between Centers:	1000/1500/2000mm
Machine:	Lathe
Voltage:	110V, 220V, 380V
Clour:	Customer Appoint
Package:	Fumigated Poly-Wood Case
Payment:	T/T, Paypal, LC, West Union
Type:	Horizontal Lathe
Power Source:	Electric
Controlling Mode:	Artificial
Automatic Grade:	Semiautomatic
Setting Mode:	Floor-type
Precision:	High Precision
Processing Accessory:	Steel Workpiece
Tool Holder:	4-Station Toolpost

Product Description

Features:
The guide way and all gears in the headstock are hardened and precision ground.
The spindle system is high rigidity and accuracy.
The machines have powerful headstock gear train, high rotating accuracy and smooth running with low noise.
An overload safety device is provided on the apron.
Pedal or electromagnetic braking device.
Tolerance test certificate, test flow chart included

Specification:

Horizontal High Precision Lathe Machine	C6241×1000	C6241×1500	C6246×1000	C6246×1500
Max.swing over bed	Φ410mm(16")		Φ460mm(18")
Max.swing over cross slide	Φ224mm(8 13/16")		Φ274mm(10 3/4")
Max. swing over gap	Φ640mm(25 1/8")		Φ690mm(27 1/8")
Length of gap	155mm(6 1/8")
Max.length of workpiece	1000mm(40")/1500mm(60")
Width of bed	300mm(11 13/16")
Spindle nose	D1-6
Spindle bore	Φ58mm(2-1/4")
Taper of spindle bore	M.T.#6
Range of spindle speed	12changes25-2000r/min
Max.travel of compound rest	120mm(4 3/4")
Max.travel of cross slide	290mm(11 3/8")
Leadscrew pitch	metric 6mm
Max.section of tool	25mm×25mm(1×1")
Range of longitudinal feeds	42kinds 0.031-1.7mm/rev (0.0011"-0.0633"/rev)
Range of cross feeds	42kinds 0.014-0.784mm/rev (0.00033"-0.01837"/rev)
Metric threads range	41kinds 0.1-14mm
Inch threads range	60kinds 2-112 T.P.I.
Diametrical pitches range	50kinds 4-112D.P.
Module piches rang	34kinds 0.1-7 M.P.
Dia. of tailstock sleeve	60mm(2 5/16")
Travel of tailstock sleeve	120mm(4 3/4")
Morse taper of tailstock sleeve	M.T.#4
Power of main motor	4kw(5.4HP),optional 5.5kw(7.5HP)3PH
Power of coolant pump	40w

Standard accessories:
3-jaw chuck
4-jaw chuck
Steady rest
Follow rest
Foot plate
Optional accessories:
DRO
Quick change toolpost
Chuck protection
Leading screw guard
Toolpost protection

We are engaged in the business line of various machine tools, ranging from common machines to CNC ones. Our main products are lathes, milling and drilling machines, grinding machines and forming machines CNC machining centers and so on. Installed and tested by professional techniques, the machines are of high quality and able to meet up to international standard. We have achieved marvelous success during the past few years, winning praise from our clients all over the world. The machines that we produce enjoy wide popularity across the world. Our facility and equipment along with a focus on education keep us on the top of this field. In order to keep pace with international standard, we spare no effort to develop new products. Our company mission is to create a serious, trusted and everlasting partnership with all our clients.

Sincerely, we are looking forward to entering into business relation with you in the near future.
