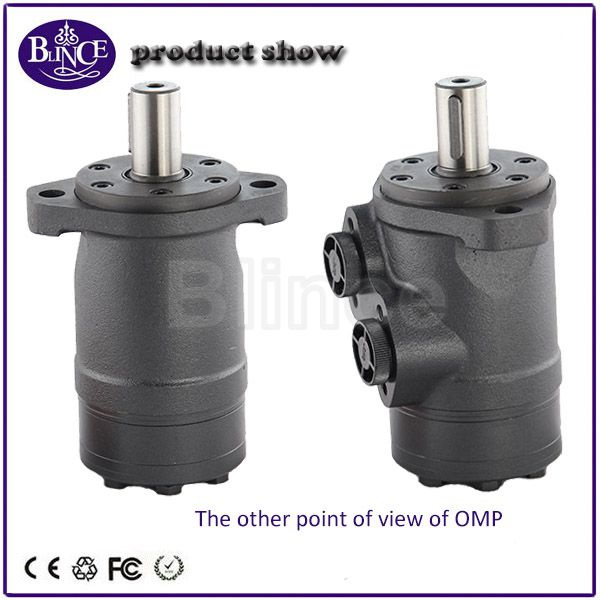

Blince High Power Omp160 Hydrualic Motor Tool

Name: Blince High Power Omp160 Hydrualic Motor Tool
Brand: China-Manufacturer-Directory.com
SKU: 763533065
Availability: InStock
Rating: 4.3 (60 reviews)

Supplier:	Dongguan Blince Machinery & Electronics Co., Ltd.
Price:	US $ 80/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	Omp160
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Displacement(Cc/Rev):	160
Continuous Max Speed(Rpm):	383
Continuous Max Torque(N.M):	302
Hole Middle Distance:	106.4mm
Cylinde Parallel Shaft Size:	25mm
Flange:	Standard 2 Hole Diamond Flange
Max Pressure(Bar/MPa):	140/14
Ports And Drain Port:	G1/2, G1/4
Material:	Rust-Proof Cast Iron
Warranty:	One Year
Type:	Hydraulic Power Units
Hydraulic Valve:	Hydraulic Motor
Auxiliary Components:	Hydraulic Motor
Hydraulic Fluid:	Hydraulic Motor
Flow Control Valve:	Hydraulic Motor
Pressure Control Valve:	Orbital Motor
Hydraulic Control Unit:	Hydraulic Motor
Hydraulic Motor:	Omp Hydraulic Motor
Hydraulic Actuator:	Hydraulic Motor

Product Description

Blince Hydro motors OMP160 Series is Popular Applied In:
-Winch in boat -Plastic Injection Moulding Machine -sweeper machine
- lawn mower -road line marker-wheat harvest machine and other light machinery-car tail lift

Typical feature
1. High pressurre of shaft seal
3. Phosphating coating to protect from rusting
2. Freely disassemble leakage ports
4. Needle bearing
5. Omp500 be Compatible With M+S MR/MLHR

type		OMP OMPH 36	OMP OMPH 50	OMP OMPH 80	OMP OMPH 100	OMP OMPH 125	OMP OMPH 160	OMP OMPH 200	OMP OMPH 250	OMP OMPH 315	OMP OMPH 400	OMP OMPH 500
Geometric displacement		36	51.7	77.7	96.2	120.2	157.2	194.5	240.3	314.5	389.5	486.5
Max.speed.(rpm)	con.	1500	1150	770	615	490	383	310	250	192	155	120
Max.speed.(rpm)	int.	1650	1450	960	770	615	475	385	310	240	190	150
Max.torque(N.m	cont.	55	100	146	182	236	302	360	383	375	360	385
Max.torque(N.m	int.	76	128	186	227	290	370	440	460	555	525	560
Max.output(KW)	cont.	8.0	10.0	10.0	11.0	10.0	10.0	10.0	8.5	7.0	6.0	5.0
Max.output(KW)	int	11.5	12.0	12.0	13.0	12.0	12.0	12.0	10.5	8.5	7.0	6.0
Max.pressure Drop(Mpa)	cont.	12.5	14	14	14	14	14	14	11	9	7	6
Max.pressure Drop(Mpa)	int	16.5	17.5	17.5	17.5	17.5	17.5	17.5	14	14	10.5	9
Max.flow(L/min)	cont.	55	60	60	60	60	60	60	60	60	60	60
Max.flow(L/min)	int.	60	75	75	75	75	75	75	75	75	75	75
OMP50-2AD (OMP-1510310)							OMP50-2AD (OMP-1510610)
OMP50-2CD (OMP-1510300)							OMP50-2CD (OMP-1510600)
OMPH50-H2RS (OMP-1517041)							OMP50-2ED (OMP-1510330)
OMP50-2ED (OMP-1510630)							OMP50-4BD (OMP-1515001)
