Friends, Welcome to BLINCE Hydraulics Kingdom. We can offer more than 3000 different orbital motors, categorised in types, variants and sizes (incl. Different shaft versions).
Blince OMT series motor adapt the advanced Geroler gear set design with disc distribution flow and high pressure.The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.
Characteristic features:
* Advanced manufacturing devices for the Geroler gear set,which use low pressure of start-up, provide smooth and reliable operation and high efficiency.
* The output shaft adapts in tapered roller bearings that permit high axial and radial forces.Can offer capacities of high pressure and high torque in the wide of applications.
* Advanced design in disc distrbution flow, which can automatically compensate in operating with high volume efficiency and long life, provide smooth and reliable operation.

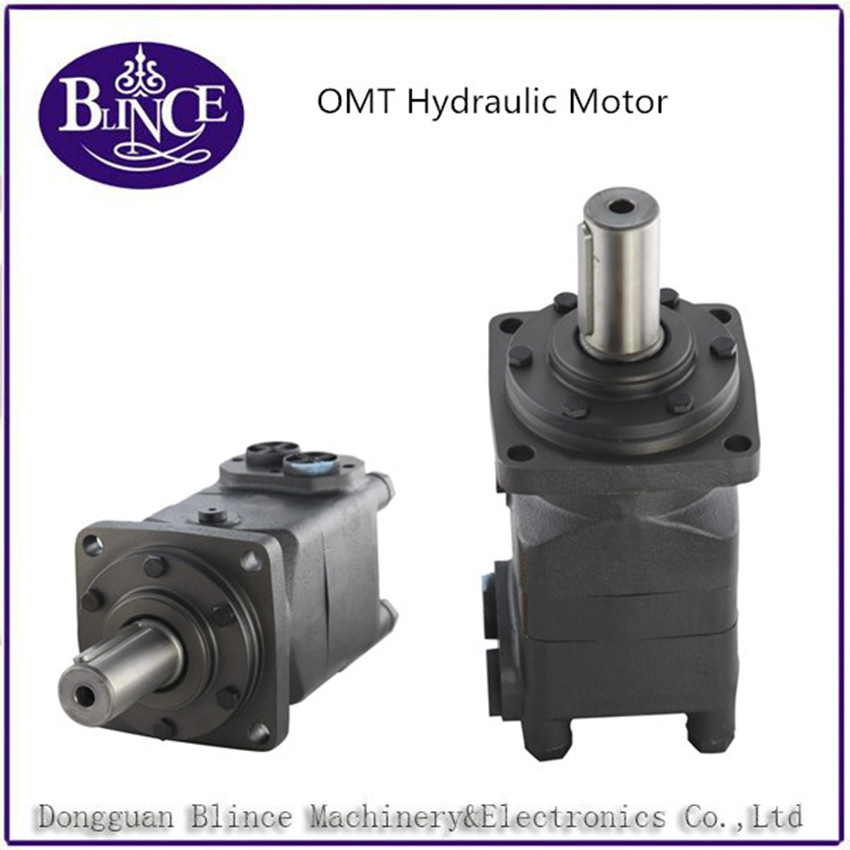

Blince OMT series high torque orbital hydraulic motors.
Main Specificaion:
Type | OMT 160 | OMT 200 | OMT 230 | OMT 250 | OMT 315 | OMT 400 | OMT 500 | OMT 630 | OMT 800 |
displacement (cm3/rev.) | 161.1 | 201.4 | 232.5 | 251.8 | 326.3 | 410.9 | 523.6 | 629.1 | 801.8 |
Max.speed (rpm) | cont. | 625 | 625 | 536 | 500 | 380 | 305 | 240 | 196 | 154 |
int. | 780 | 750 | 643 | 600 | 460 | 365 | 285 | 233 | 185 |
Max. torque (Nm) | cont. | 470 | 590 | 670 | 730 | 950 | 1080 | 1220 | 1318 | 1464 |
int. | 560 | 710 | 821 | 880 | 1140 | 1260 | 1370 | 1498 | 1520 |
peak | 669 | 838 | 958 | 1036 | 1346.3 | 1450.3 | 1643.8 | 1618.8 | 1665 |
Max.output (kW) | cont. | 27.7 | 34.9 | 34.7 | 34.5 | 34.9 | 31.2 | 28.8 | 25.3 | 22.2 |
int. | 32 | 40 | 40 | 40 | 40 | 35 | 35 | 27.5 | 26.8 |
Max. pressure drop (MPa) | cont. | 20 | 20 | 20 | 20 | 20 | 18 | 16 | 14 | 12.5 |
int. | 24 | 24 | 24 | 24 | 24 | 21 | 18 | 16 | 13 |
peak | 28 | 28 | 28 | 28 | 28 | 24 | 21 | 19 | 16 |
Max.flow (L/min) | cont. | 100 | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
int. | 125 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
Max. inlet pressure (MPa) | cont. | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 | 21 |
int. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
peak | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
Net Weight (kg) | 19.5 | 20 | 20.4 | 20.5 | 21 | 22 | 23 | 24 | 25 |
Blince OMT HYDRAULIC MOTOR CAN SUBSTITUE FOR:
* Sauer Danfoss OMT series
* Eaton Char-lynn Drive Product 4000 Series(104-, 105-, 106-, 193-)
* Brevini Drive Product HT Series
* M+S Motor MT/MLHTseries
* Any More
The Blince OMT series motors are used in the following application areas:
1) Conveyors
2) Metal working machine
3) Agriculture machines
4) Road building machines
5) Mining machinery
6) Food industries
7) Special vehicles
8) Plastic and rubber machinery
9) And more
WHY US:
1. We are leading profesional manufacturer of Hydraulic motor in Guangdong China. Our products have been exported to more than 50 countries including Africa, Middle East, South America and Asia.
2. We are not only produce normal models, but also produce new models according to your design.
3. Professional service team and competitive price will give you a perfect purchasing experience.
Warranty:
1. Guarantee for one year or 1000 hours (according to whichever ends first) from the purchasing date on.
2. During the guarantee period, our company will provide the easy-damaged spare parts for problems
Caused by our quality of production or raw material. Pls provide the defective appearance and related invoice number.
3. Sorry for you should responsible for the freight come-and-go, and the custom tax.
4. After expiration, our company can provides cost spare-parts maintenance for engines.
5. To save the cost, you can choose send the motor back without packing.
6. My dear friend, your emails can be get within one business day. If you do not receive our reply, please kindly re-sent your email or give us a call any time.
Blince profssion supply all series hydraulic motor like OMM/OMP/OZ/OMR/OK/OMH/OMP1/OYM/OMRL/OM1/OM2/OM3/OM4/OMSY/OMT/OMV /OMER hydraulic orbit motor,hydraulic pump like ( PV2R series/V/VQ series/SQP series ).
