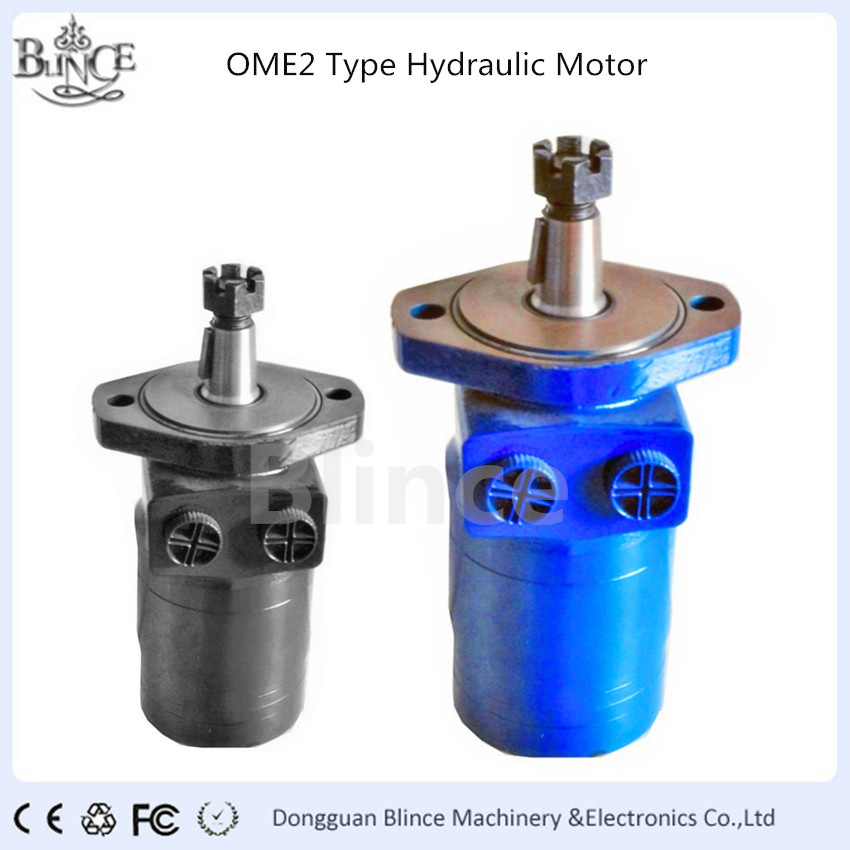

Hi Power Density Motor Hidraulico of Plane Flow Distribution (OME2-65)

Product Specifications

Prod Model:	OME2-65/80/100/125/160/200/230/250/295/315/375
Markets:	South America,Southeast Asia,Mid East,Eastern Asia
Structural:	Hydraulic Orbit Motor
Usage:	Hydraulic Oil
Material:	Cast Iron
Flow Distribution:	Plane Distribution Type
Shaft Type:	Parallel Key/ Splined Key/Woodruff Key Shaft
Flange Type:	Wheel - Flange/Rhomb-Flange/Square- Flange
Diameter Of Shaft:	25mm/25.4mm
Rotation Direction:	Positive & Reverse Direction
Application:	Heavy to Medium Duty Tasks
Standard & Non-Standard:	Standard
Type:	Hydraulic Motor

Product Description

Friends, Welcome to BLINCE Hydraulics Kingdom. We can offer more than 3000 different orbital motors, categorised in types, variants and sizes (incl. Different shaft versions).

Blince OME2 series motor adapt the advanced Geroler gear set designed with high speed distribution flow and high pressure, and have good stability in low speed , and can keep high volume efficiency. The unit can be supplied the individual variant in operatingmultifunction in accordance with requirement of applications.

Characteristic features:
* Advanced manufacturing devices for the Geroler gear set,which use low pressure of start-up, provide smooth and reliable operation and high efficiency.
* The output shaft adapts in tapered roller bearings that permit high axial and radial forces.Can offer capacities of high pressure and high torque in the wide of applications.
* Advanced design in high speed distrbution flow, which can automatically compensate in operating with high volume efficiency and long life, provide smooth and reliable operation.
* Lowest leakage rate, most accurate timing methods.Commutator rotates 6x faster than shaft speed.It make the distribution in a high precision reduces life-cycle cost,maintain high volume efficiencies and
can run very smoothly at low speed, gear box not required.

Blince OME2 series high torque orbital hydraulic motors.
Main Specificaion:

Type		OME2 65	OME2  80	OME2 100	OME2 125	OME2 160	OME2 200	OME2 230	OME2 250	OME2 295	OME2 315	OME2 375
Displacement (cm3/rev.)		66.8	81.3	101.6	127	157.2	193.6	226	257	287.8	314.5	370
Max.speed (rpm)	cont.	667	543	439	350	283	229	247	216	196	178	152
	int.	842	689	553	441	355	289	328	287	254	235	199
Max. torque  (N?m)	cont.	126	157	191	245	307	382	378	381	393	448	439
	int.	176	215	268	335	422	520	528	543	547	587	613
Max. Output (kW)	cont.	8.3	8.8	7.9	8.9	8.9	9.0	9.9	9.3	8.7	8.0	7.6
	int.	13.9	14.4	13.5	14.1	15.6	15.7	17.9	16.5	15.6	14.3	14
Max. pressure  drop(MPa	cont.	14	14	14	14	14	14	12	11	10	10	9.0
	int.	19	19	19	19	19	19	16.5	15.5	14.5	13.5	12.5
	peak	20	20	20	20	20	20	18	18	17	16	16
Max. flow (L/min)	cont.	45	45	45	45	45	45	57	57	57	57	57
	int.	57	57	57	57	57	57	75	75	75	75	75

The Blince OME2 series motors are used in the following application areas:
1) Conveyors
2) Metal working machine
3) Agriculture machines
4) Road building machines
5) Mining machinery
6) Food industries
7) Special vehicles
8) Plastic and rubber machinery
9) And more

WHY US:
1. We are leading profesional manufacturer of Hydraulic motor in Guangdong China. Our products have been exported to more than 50 countries including Africa, Middle East, South America and Asia.
2. We are not only produce normal models, but also produce new models according to your design.
3. Professional service team and competitive price will give you a perfect purchasing experience.

Warranty:
1. Guarantee for one year or 1000 hours (according to whichever ends first) from the purchasing date on.
2. During the guarantee period, our company will provide the easy-damaged spare parts for problems
Caused by our quality of production or raw material. Pls provide the defective appearance and related invoice number.
3. Sorry for you should responsible for the freight come-and-go, and the custom tax.
4. After expiration, our company can provides cost spare-parts maintenance for engines.
5. To save the cost, you can choose send the motor back without packing.
6. My dear friend, your emails can be get within one business day. If you do not receive our reply, please kindly re-sent your email or give us a call any time.

Blince profssion supply all series hydraulic motor like OMM/OMP/OZ/OMR/OK/OMH/OMP1/OYM/OMRL/OM1/OM2/OM3/OM4/OMSY/OMT/OMV /OMER hydraulic orbit motor,hydraulic pump like ( PV2R series/V/VQ series/SQP series ).

If you have any questions or other hydraulics informations what I can do for you. Please contact me directly or visit our website. The best service you will get soon! : )
