Product Specifications
| Prod Model: |
BRVT-12B |
| Markets: |
North America,South America,Southeast Asia,Mid East |
| Type: |
Impact Testing Machine |
| Weight: |
0-100Kg |
| Power Source: |
AC220V |
Product Description

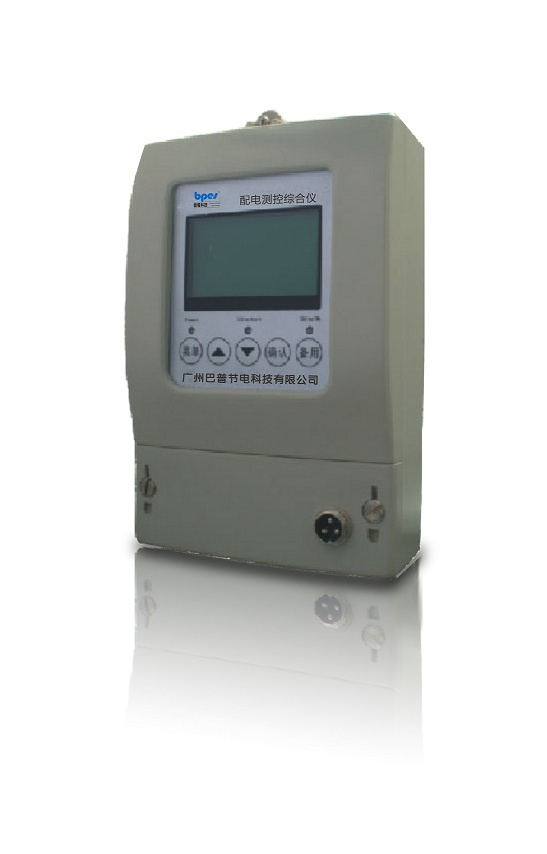

BRVT Comprehensive power distribution measuring and controlling instrument
This instrument is multifunctional with full three-phase electricity measuring, 128×64 liquid crystal display, harmonic analysis, overrun control, switch input/output, dynamic reactive power compensation, power measuring, incident record, communication.
Quoted Standards
JB/T 9663-2013 Low-voltage reactive power automatic compensation controller
GB/T 29312-2012 Low-voltage reactive power compensation switching instrument
GB 7251.1-2013 Low-voltage switchgear and controlgear assemblies
GB/T 10233-2005 Low-voltage switchgear and controlgear basic testing methods
GB/T 15576-2008 Low-voltage reactive power compensation device
Main Technical Parameters
Altitude: ≤2500m
Working temperature: -25ºC~+70ºC
working power range: 220V/
Weight: 1.5Kg
Measuring signal: split-phase
Measuring method: AC sampling
Measuring voltage: 59V~280V
Measuring currrent: 0~5A
Measuring power factor: lagS0.200~lead 0.200
Measuring harmonic: Digital display mode
Measuring active power: 0~999.9Kw(split-phase)
Measuring reactive power: 0~999.9Kvar(split-phase)
Measuring active electrical degrees: 0~999999.99Kwh
Measuring reactive energy: 0~999999.99Kvarh
Reactive compensation output: 12V 30mA/branch
Digital input: node points input(no need power)
Temperature input: PT100
Warning output: 250V 5A relay node points
communication port 1: data acquisition of remote terminal
Mode: RS-485/RS-232( can choose from former panel )
Baud rate: 1200,2400,4800,9600,38400
Data bits: 8 data bits
Parity check bit: can be set up
Stop bit: one stop bit
communication port 2: (for terminal and other intelligent device port)
Mode: RS-485
Baud rate: 1200,2400,4800,9600,38400
Data bits: 8 data bits
Parity bit: can be set up
Stop bit: one stop bit
Measuring Precision
Voltage: ±0.5% power:±1.0%
Current: ±0.5% power:±0.5%
Power factor: ±1.0% power:±1.0%
Note: above data is based on 10minutes preheat and one-year calibration
Settings data
Voltage up limit: 240V~275V Step length 5V
Voltage low limit: 175V~200V Step length 5V
Target power factor: 0.90~1.00 Step length 0.01
Current transformer variable ratio: 1~1200
Capacitor switching delay: 20ms~300s
Harmonic voltage setting value : 5%~50% Step length 0.5%
Threshold value: 0.5~1.2 Step length 0.1
Zero-sequence current: 5%~60% Step length 5%
Note: 1. remote sensing of all parameters by portable terminal
2. Remote data transmission by selecting GPRS communication module
Comprehensive distribution measuring and controlling instrument supply RS-232/485 serial port 1 and RS-485 serial port 2, serial port 2 is data forwarding port(only for flushbonading), support data forwarding of multifunctional electric meter. Serial port 1 support twisted-pair,Coaxial cable,digital radio, GPRS, can communicate with fibre-optical by MODBUS. It also can communicate with SCADA main station and monitor the distribution lines.
