Product Specifications
| Prod Model: |
BZTL-40/7G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia |
| 679*225*471 Mm: |
682*157*471 mm |
| Type: |
Polypropylene Capacitor |
| Application: |
Power |
| Package Type: |
Surface Mount |
| Capacitance: |
50-100uf |
Product Description

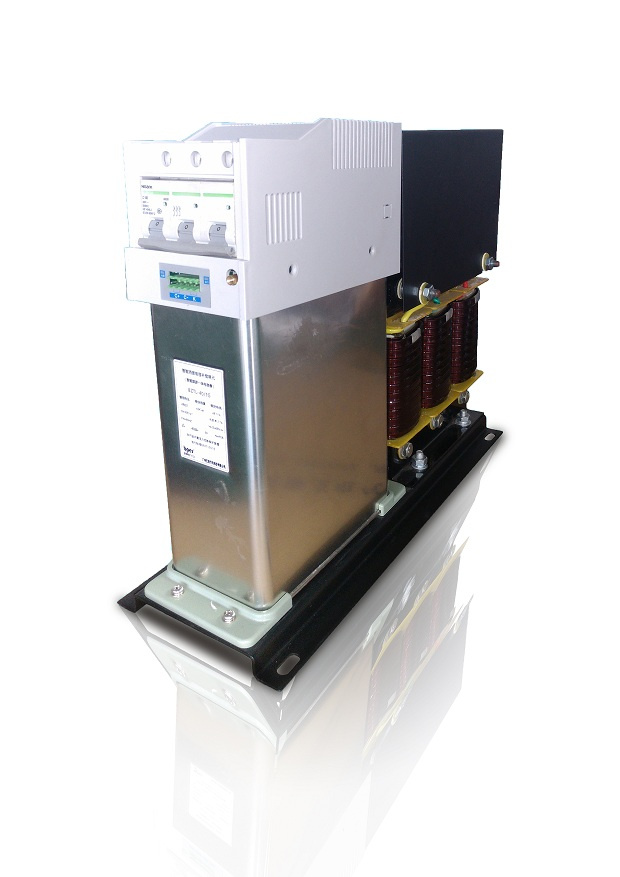

BZTL series intelligent power capacitors apply to low-tension distribution system of 0.22/0.4kv, it's a new type of reactive compensation joint component. It changes the traditional joint way of the components of fuse, capacitor switching and power capacitor, its advantage is more integrated, small, portable, steady.
The item is mainly applying to the electricity environment with HTD≤5%, giving working instruction by reactive power controller, which can realize the reactive compensation of power distribution system. The switchgear internal time is≤1s, it will meet fast changes requirements of most loads.
Technical Parameters
working voltage: 380V
rated voltage: 450V()
frequency: 50Hz/60Hz
working time: ≥50
response time: ≤40ms
switchgear internal time: ≤1S
contact voltage drop: ≤100mV
contact resistance voltage: ≥2800V AC
altitude: ≤2500M
insulation class: ≥10MΩ (normal atmosphere condition ≥10MΩ)
ambient temperature: -25ºC~+70ºC
relative humidity: 40ºC20%~90% (20%~90% relative humidity at 40ºC )
electricity control signal
control voltage: DC 12V±5V
control terminal current: ≥3mA
wireless control signal
receiving sensitivity: -121 dBm
emission frequency: 433MHz
automatic networking mode: HFAAT(,automatic identification and distribution from host and sub address)
: ,,,,
Environment : No Corrosive gas, no conductive dust, no inflammable and explosive media exist, no severe vibration, no snow and rain erosion at stall place
