Product Specifications
| Prod Model: |
BSX-3I |
| Markets: |
North America,South America,Southeast Asia,Africa,Mid East |
| Small Size: |
96*96*93mm |
| Installation: |
Clamp-on |
| Display Mode: |
Digital |
| Theory: |
Electronic Meter |
| Power Source: |
AC and DC |
Product Description

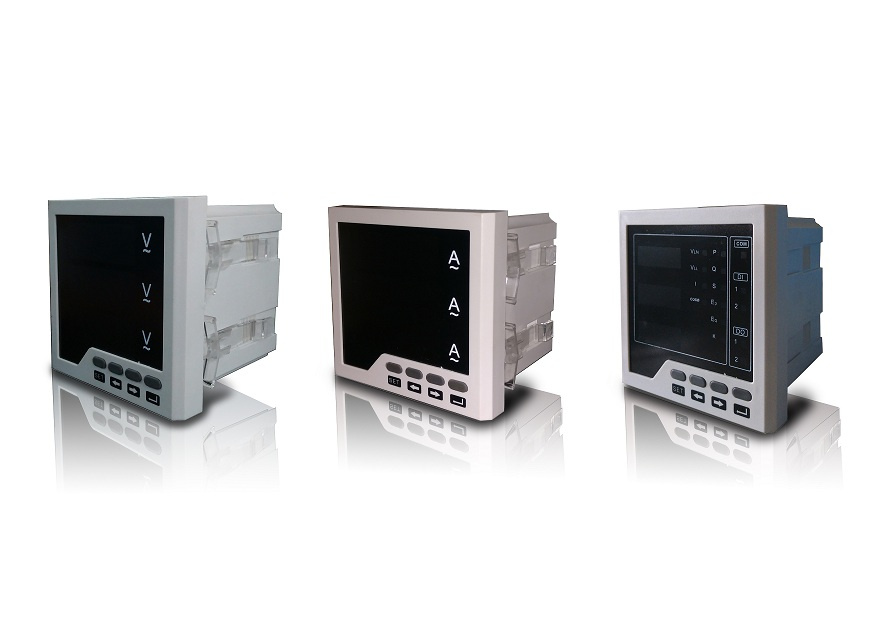

BSX-D Digital display type three-phase multi-function meter
BSX series digital display apply to electricity, automatic control area, It's used for monitoring current, voltage, power, power factor, frequency, electrical degrees and other parameters.
Quoted standards
GB/T 22264.1-2008 Mounted digital display meter, part 1: definition and general requirements
GB/T 22264.7-2008 Mounted digital display meter, part 7: special requirements of multifunctional meter
GB/T 22264.8-2008 Mounted digital display meter, part 8: recommended test method
GB/T 17215.322-2008 AC measuring equipment-----special requirements-part 22: static active electric energy meter (0.2S and 0.5S)
GB/T 17215.323-2008 AC measuring equipment-----special requirements---part 23: static active electric energy meter(grade 2 and grade 3)
DL/T 614-2007 Multifunctional watt hour meter
GB14287-2005 Electrical fire monitoring system
Main technical parameters
Working voltage: AC220V
Frequency: 45Hz~65Hz
Measuring voltage: 100V~500V
Display bits: 4 bit
Display range: 0.000~9999
Accuracy class: 0.5,0.2
Overload capacity: sustained 1.2times
instantaneous current 10times/5s, voltage 2times/s
Measuring precision
Voltage: ±0.5%
Current: ±0.5%
Nominal input
AC current: 1A,5A
AC voltage: 100V,220V,380V
Power: AC220V/DC85~265V
Power consumption: ≤2AV
Insulation strength: 2KV/1min
Impedance voltage: >300KΩ, current:<20mΩ
Frequency: 45~65Hz
Ambient condition
Altitude:≤2500m
Working temperature:-25ºC~+55ºC
Working environment: no corrosive gas, no inductive dust, no inflammable and explosive medium exist, no severe vibration at installation site, no rain and snow erosion.
Reliability
Mean time between failures(MTBF): >25000 hours
BSX series digital display meter applies to electrical grid, automatic control system, etc.
